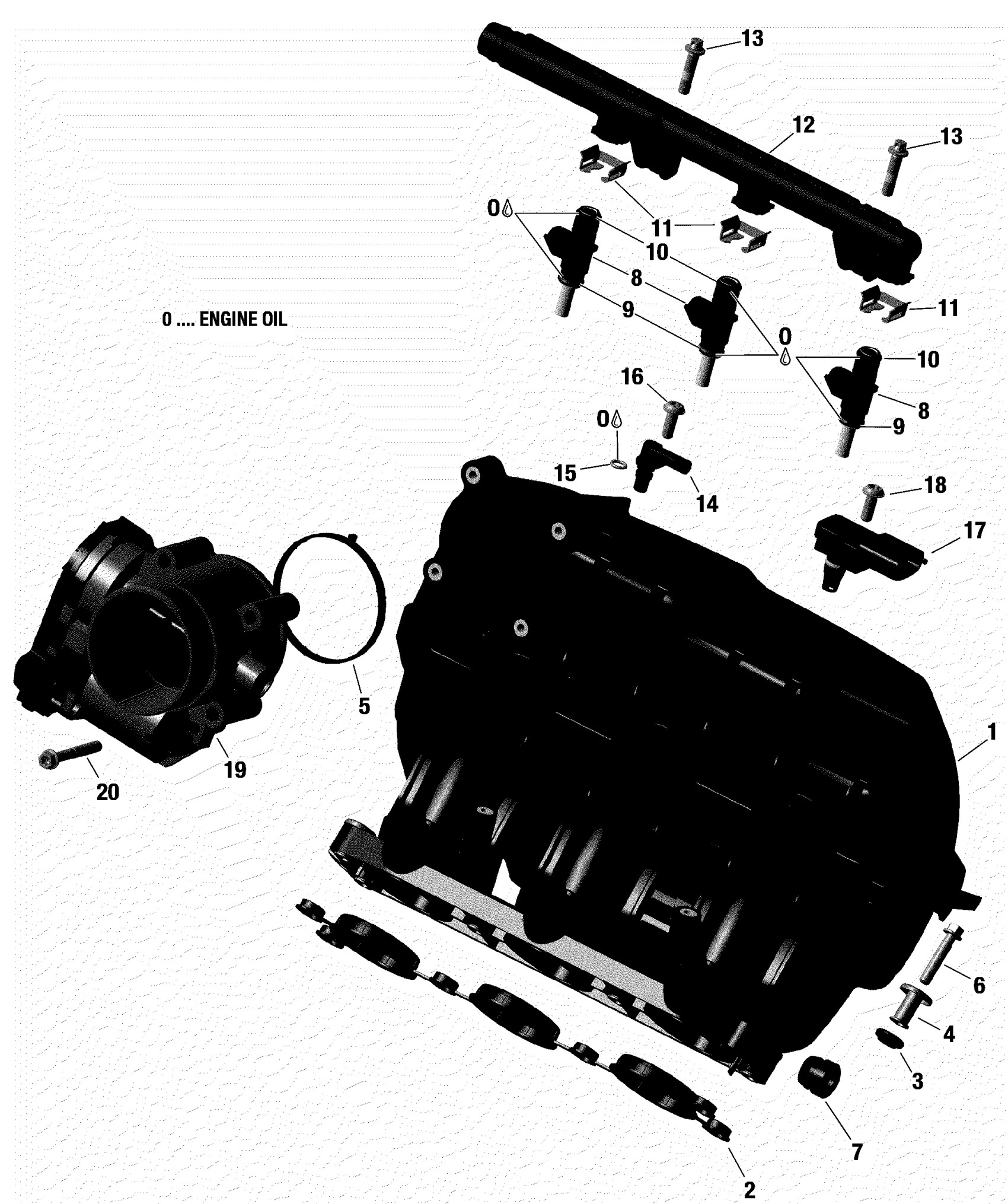

Can-Am 002 - F3 S SM6, 2021 02- Air Intake Manifold Diagram

#

Description
Price

1>4

Airbox Ass'y | Includes 1 to 3

420667687

$279.99

2

Gasket | One Piece Gasket

420431667

$36.99

3>4

Distance Sleeve

420629175

$19.99

5

Gasket

420431901

$34.99

6

Torx Flange Screw M6 X 30

420440647

$2.00

7

Isolator

420201170

$15.87

8>10

Injection Valve | Includes 6 to 8

420274217

$119.99

9

O-Ring

420431890

$7.49

10

O-Ring

420631220

$14.28

11

Injector Clip

420853030

$3.09

12

Fuel Rail

420274230

$33.99

13

Torx Flange Screw M6 X 25

420440234

$3.06

14

Fitting

420201191

$6.67

15

O-Ring

420230530

$3.17

16

Torx Flange Screw M6 X 16

420641588

$2.11

17

Pressure And Temperature Sensor

707000995

$88.99

18

Torx Flange Screw M6 X 16

420641588

$2.11

19

Throttle Body Socket Ass'y

420892596

$466.49

20

Torx Flange Screw M6 X 45

420440324

$0.98
