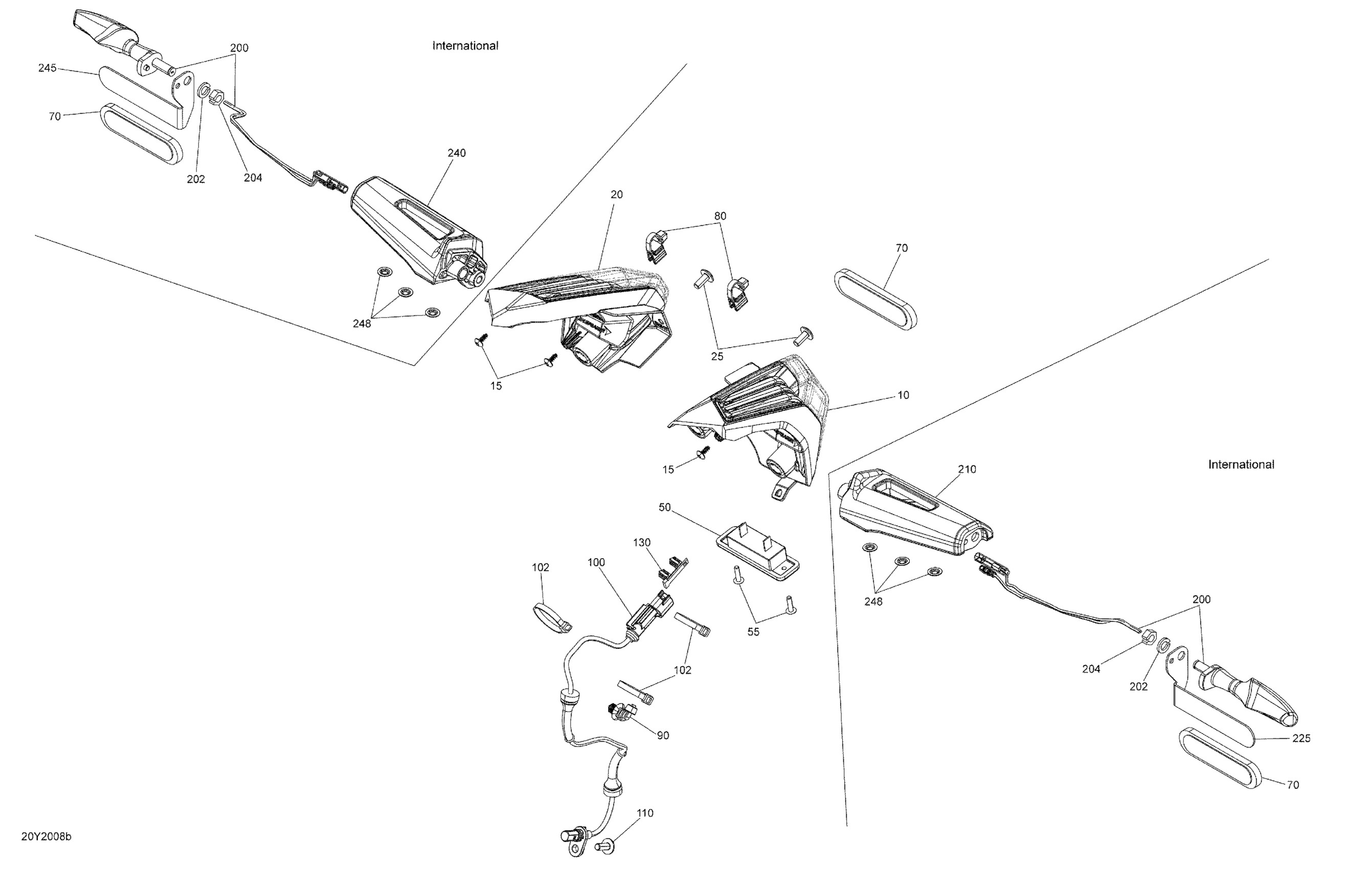

Can-Am 002 - RYKER STD 900 ACE, 2020 10- Electrical System Taillights Diagram

#

Description
Price

10

LH Rear Tail Light

710010213

$169.99

15

Torx Truss Screw K40 X 12

250000577

$2.11

20

RH Rear Tail Light

710010214

$169.99

25

Torx Truss M6X14

250000789

$5.39

50

License Light

710005501

$59.49

55

Flange Torx Screw K40 X 16

250000287

$2.11

70

Red Reflector | Canada/USA

705012439

$9.99

80

Clip Tie-Rap | Package North Edition

710005037

$9.17

90

Christmas Tree Tie-Rap

710005237

$7.16

100

Speed Sensor

710005610

$83.99

102

Tie-Rap 180 mm

414115200

$0.11

110

Torx Truss M6X14

250000789

$5.39

130

Clip (double dart)

278002910

$11.12

200

Flasher Kit

219800533

$185.49

202

Slotted Washer

710006520

$1.15

204

Slotted Nut

710006521

$2.11

210

LH Rear Turn Signal Support

710006132

$15.99

225

LH Rear Reflector Support | International

710006472

$16.49

240

RH Rear Turn Signal Support

710006133

$15.99

245

RH Rear Reflector Support

710008632

$16.49

248

Push Nut

732610072

$2.19
