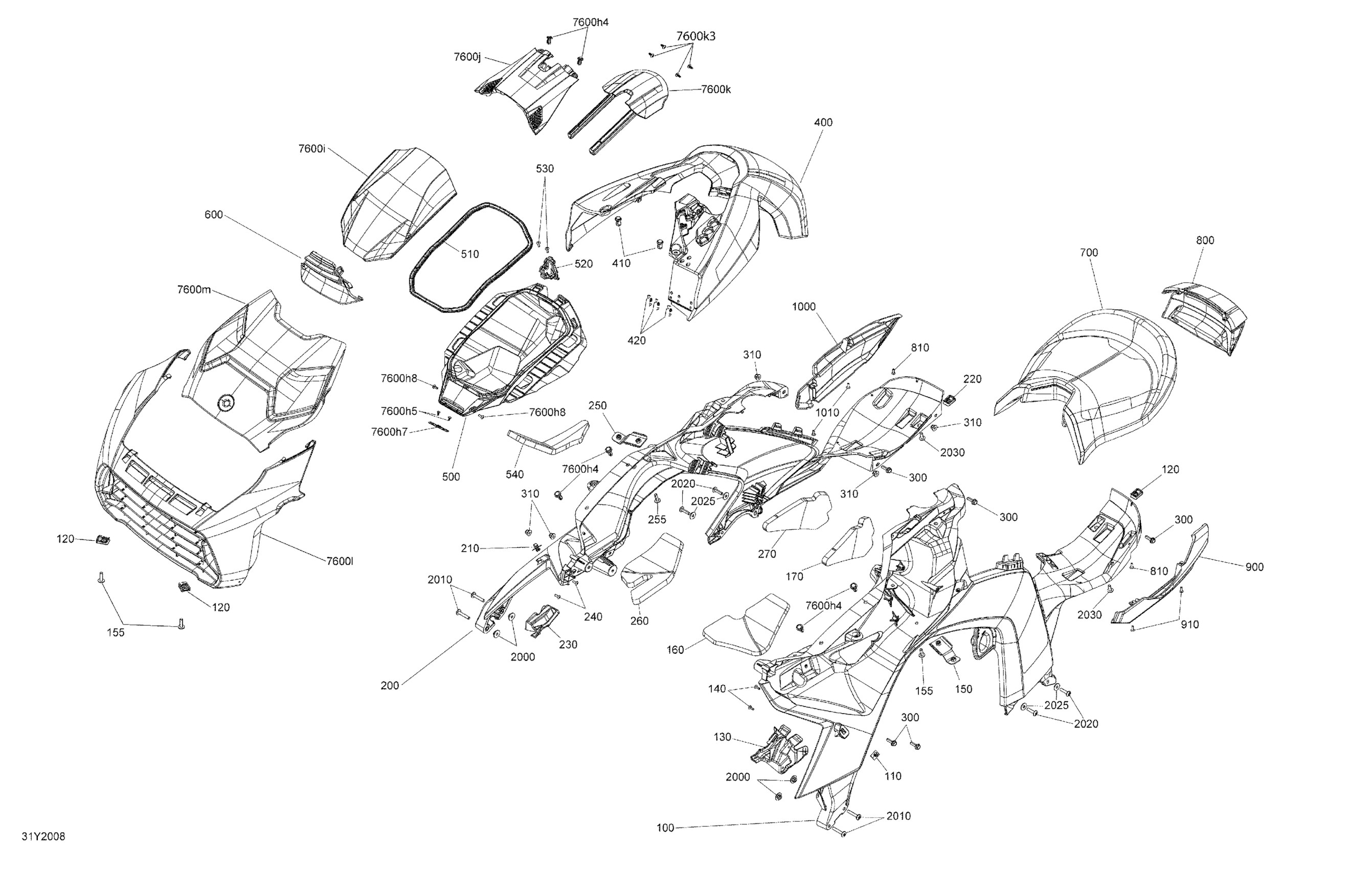

Can-Am 001 - RYKER STD 600 ACE, 2020 09- Body - Hood / Grill / Driver Seat / Upper Body Module Diagram

LH Upper Frame

705205817

$144.99

Dart Clip

293730080

$1.15

Panel Nut M6 X 1.0

250100208

$1.46

LH Holder (support)

705013415

$4.19

Torx Truss Screw K40 X 12

250000577

$2.11

Low Beam Support Ass'y

705207855

$20.99

Torx Screw M6 X 20

250000722

$1.68

LH Upper Front Acoustic Foam

705013944

$4.39

LH Upper Rear Acoustic Foam

705013946

$19.49

RH Upper Frame

705205818

$144.99

Dart Clip

293730080

$1.15

Panel Nut M6 X 1.0

250100208

$1.46

RH Holder (support)

705013416

$4.19

Torx Truss Screw K40 X 12

250000577

$2.11

Low Beam Support Ass'y

705207855

$20.99

Torx Screw M6 X 20

250000722

$1.68

RH Upper Front Acoustic Foam

705013945

$5.49

RH Upper Rear Acoustic Foam

705013947

$19.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6

233261466

$2.00

Deep Black, Tank Cover | Canada/USA

705010726

$214.99

Tank Cover | International

705016403

$214.99

Tuflok Plastic Rivet

293150230

$1.47

Clip Connector

515178223

$2.09

Storage Compartment Front

705205819

$109.99

Neoprene Seal Joint

708200794

$15.99

Push Latch

705007380

$62.99

Torx Truss Screw K40 X 12

250000577

$2.11

Acoustic Foam, Storage Compartment

705013943

$4.39

Center Front Fairing

705013110

$20.99

Driver Seat

708002411

$249.99

Rear Spoiler

705013202

$19.99

Torx Truss Screw K40 X 12

250000577

$2.11

LH Side Cap

705013413

$15.99

Torx Truss Screw K40 X 12

250000577

$2.11

RH Side Cap

705013414

$15.99

Torx Truss Screw K40 X 12

250000577

$2.11

Large Shoulder Nut M6

705014119

$6.14

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 16

250000721

$1.69

Tuflok Plastic Rivet

293150230

$1.47

Torx-Truss Screw K40 X 10

250001034

$0.98

Pivot

705013475

$1.49

Torx Truss Screw K40 X 12

250000577

$2.11

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$80.99

Decal Aesthetic Notice

704907056

Unavailable

Deep Black, Upper Fairing

705012727

$38.99

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$51.99

Torx-Truss Screw K40 X 10

250001034

$0.98

Deep Black, Front Fascia

705010722

$98.99

Deep Black, Hood

705011459

$33.99

Waranty Registration Form

219400038

Unavailable

2020 English Operator's Guide | Not shown

219002074

Unavailable

Roadside Assistance Booklet | Canada/USA

219002015

Unavailable
