Description

Price

10a

Rear Tire 205/45/R16 - 77T

705502453

$185.49

10b

Carbon Black, 16 inch Rim

705503342

$389.99

10c

Rim Valve With Cap

705400193

$8.69

10d

Valve Cap

293000110

$1.59

10f

Self Adhesive Weight, 5G 20mm

705502106

$4.69

20

Conical Support Ring

705401983

$17.59

30

Wheel Nut M45

705402730

$31.99

40

External Retaining Ring

293370168

$2.32

50

Final Drive Unit | Includes 50 to 50aa

705503043

$1,420.49

50a

Fill Level Plug

705501889

$20.49

50b

Magnetic Plug Drain | Includes 50b to 50b1

705502851

$19.99

50c

Hex. Flange Screw M8 X 1.25 x 35

705502849

$14.99

50d

Not Available As Spare Part - Friction Washer

Unavailable

50f

Nut M27 X 1.5

705401820

$20.99

50g

Retaining Ring OD 119mm

705502840

$20.99

50h

Retaining Ring OD 50.5mm

705502841

$20.99

50j

Not Available As Spare Part - Friction Washer

Unavailable

50k

Shim 2.047po X 2.5po X 0.60po

705502843

$92.99

50m

Not Available As Spare Part - Friction Washer

Unavailable

50n

Ball Bearing

705502845

$103.99

50p

Needle Bearing

705502852

$68.99

50q

Not Available As Spare Part - Friction Washer

Unavailable

50r

Not Available As Spare Part - Friction Washer

Unavailable

50s

Not Available As Spare Part - Friction Washer

Unavailable

50t

Rear Cover Machined

705502508

$232.99

50u

Not Available As Spare Part - Friction Washer

Unavailable

50v

Ring Gear FInal Drive Ass'y

705503168

Unavailable

50w

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

50x

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

50y

Oil Seal, Single Lip 68 X 110 X 8

705502847

$30.49

50z

Not Available As Spare Part - Friction Washer

Unavailable

50aa

O-Ring

219800486

$9.21

60

Hex. Flange Screw M10 X 140

230604056

$12.65

70

Screw-Hex.Flange M10 X 35 S.Grip

250001080

$2.11

100

LH Homocinetic Joint | Includes 100 to 100k

705502456

$280.49

100a

Yoke

715900914

$30.49

100b

Universal Joint Ass'y | Includes 100b to 100b1

219800424

$46.49

100b1

Circlip | Not shown

219800423

$1.37

100h

Circlip Joint | Not shown

705401349

$6.50

110

Hex. Elastic Flange Nut M8

233281416

$1.48

120

Hex. Flange Screw M6 X 45

250001028

$1.26

150

Hex. Flange Screw M10 X 115 Scotch G.

250001127

$7.86

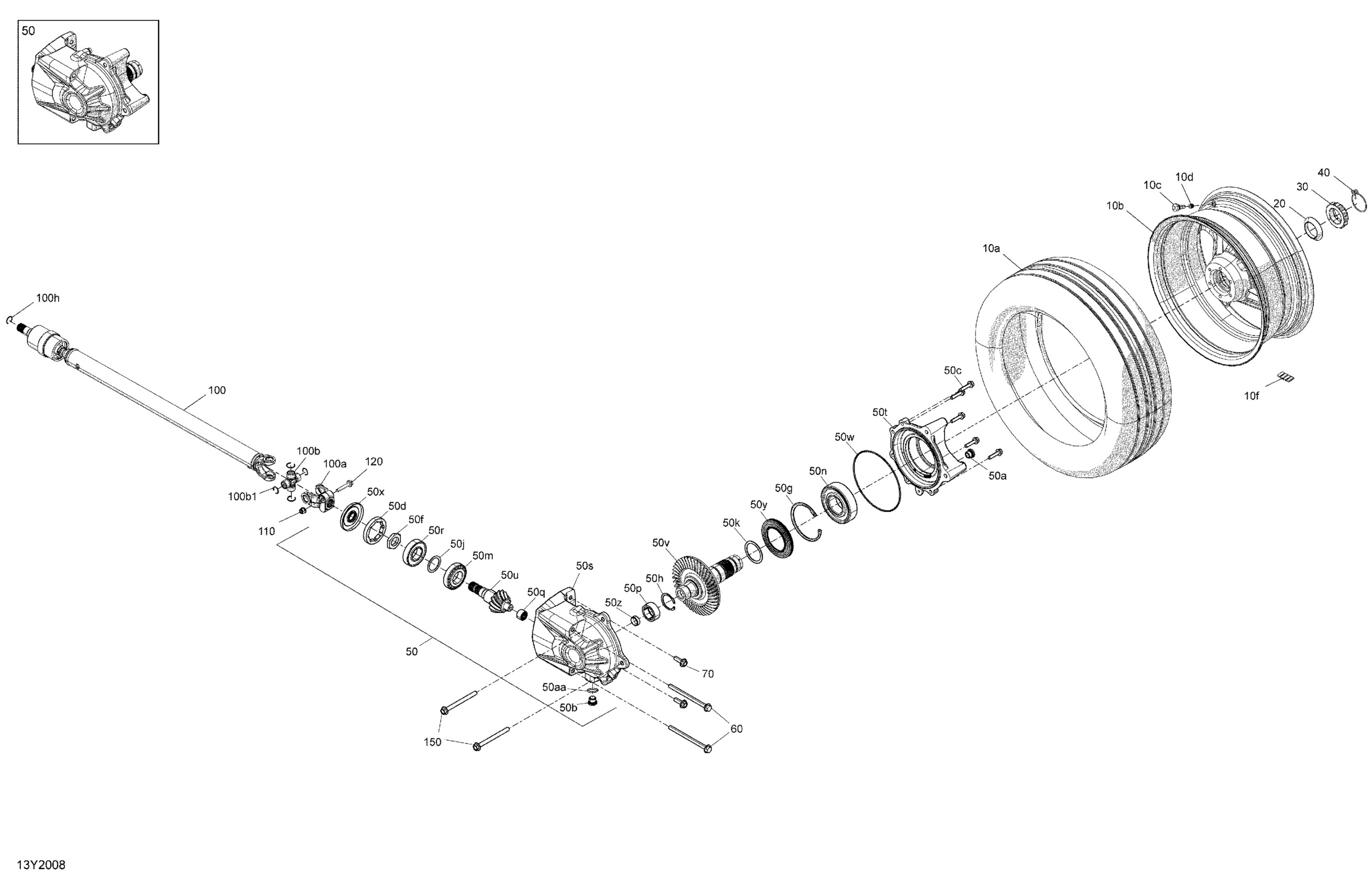

Can-Am 001 - RYKER STD 600 ACE, 2020 08- Final Drive, Rear Wheel - Propeller Shaft Diagram

Rear Tire 205/45/R16 - 77T

Carbon Black, 16 inch Rim

Rim Valve With Cap

Valve Cap

Self Adhesive Weight, 5G 20mm

Conical Support Ring

Wheel Nut M45

External Retaining Ring

Final Drive Unit | Includes 50 to 50aa

Fill Level Plug

Magnetic Plug Drain | Includes 50b to 50b1

Hex. Flange Screw M8 X 1.25 x 35

Not Available As Spare Part - Friction Washer

Nut M27 X 1.5

Retaining Ring OD 119mm

Retaining Ring OD 50.5mm

Not Available As Spare Part - Friction Washer

Shim 2.047po X 2.5po X 0.60po

Not Available As Spare Part - Friction Washer

Ball Bearing

Needle Bearing

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Rear Cover Machined

Not Available As Spare Part - Friction Washer

Ring Gear FInal Drive Ass'y

Oil Seal iDIA 6.737 oDIA 6.943

Oil Seal, Triple Lip 25 X 79 X 8

Oil Seal, Single Lip 68 X 110 X 8

Not Available As Spare Part - Friction Washer

O-Ring

Hex. Flange Screw M10 X 140

Screw-Hex.Flange M10 X 35 S.Grip

LH Homocinetic Joint | Includes 100 to 100k

Yoke

Universal Joint Ass'y | Includes 100b to 100b1

Circlip | Not shown

Circlip Joint | Not shown

Hex. Elastic Flange Nut M8

Hex. Flange Screw M6 X 45

Hex. Flange Screw M10 X 115 Scotch G.
