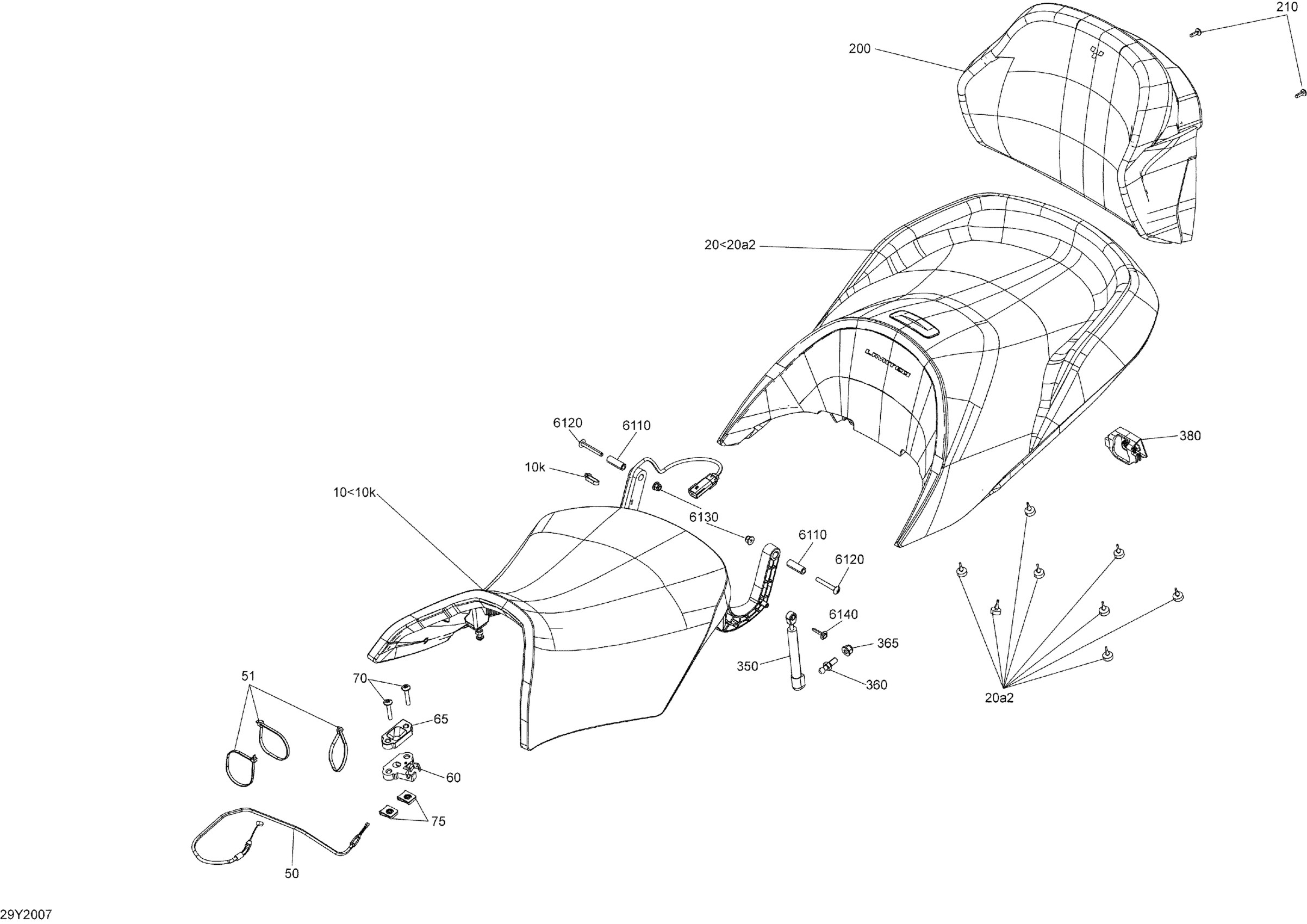

Can-Am 002 - RT LTD SE6, 2020 09- Seat Diagram

Heated Driver Seat Ass'y | Includes 10 to 10c1

708003339

$619.99

Tie-Rap 180 mm

414115200

$0.11

Heated Passenger Seat Ass'y | Includes 20 TO 20a2 With Built-in heated element

708003092

$309.99

Rubber Stopper

708000759

$4.19

Actuator Cable

517307507

$11.49

Tie-Rap 180 mm

414115200

$0.11

Latch

705007379

$28.99

Trim Latch

708003260

$4.69

Torx Truss Screw M6 X 25

250000807

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Passenger Backrest | Includes 200 to 200f

708303613

$349.99

Torx Screw K50 X 16

250000720

$1.69

Shock Absorber

708003221

$83.99

Ball Head Stud

250300039

$7.51

Hex. Flange Elastic Nut M8

233281414

$1.47

Connector Cap | Includes 380 to 380d

708303050

$14.29

Spacer

708000664

$6.49

Torx Screw M6 X 45

250000748

$1.90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
