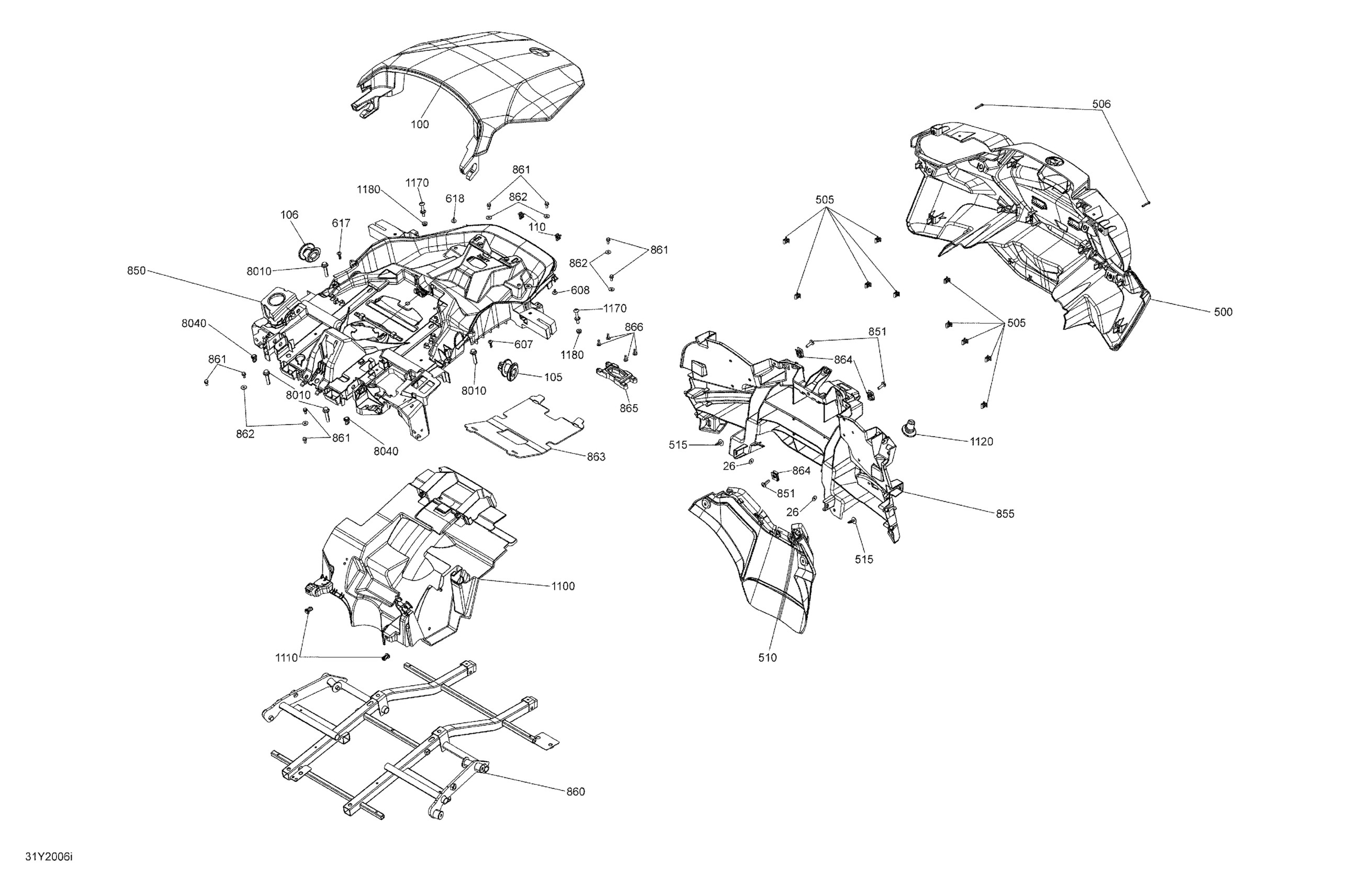

Can-Am 002 - RT LTD SE6, 2020 09- Body And Accessories Upper Cargo & Rear Fender Diagram

Description

Price

Stainless Steel Flat Washer M5

234052670

$1.01

100

Chalk, Rear Fairing | Models Chalk

708003405

$254.99

100

Petrol, Rear Fairing

708003074

$254.99

105

LH Anchorage Socket

708400404

$2.79

106

RH Anchorage Socket

708400441

$2.79

110

Edge Clip

517302785

$0.88

500

Rear Fender

708302949

$204.99

500

Rear Fender

708303448

$309.99

505

Edge Clip

517302785

$0.88

506

Hex. Flange Screw K40 X 25

241142560

$2.64

510

Rear Fender Extention

708301747

$204.99

515

Tuflock Phillips Plastic Screw

414745900

$1.69

607

Torx Screw Truss Head K50X20 T20

250000760

$2.11

608

Plastite Screw M4 X 10

250000805

$2.11

617

Torx Screw Truss Head K50X20 T20

250000760

$2.11

618

Plastite Screw M4 X 10

250000805

$2.11

850

Cargo Structure

708302924

$109.99

851

Torx Truss Screw M6 X 20

250000705

$2.11

855

Rear Cargo Structure

708303308

$104.99

860

Rear Frame | Included 860 to 860a16

708303883

$349.99

861

Hex Flange Screw M5 X 11

210251150

$2.11

862

Stainless Steel Flat Washer M5

234052670

$1.01

863

Rubber Protector

708400407

$14.99

864

Panel Nut M6 X 1.0

250100208

$1.46

865

LinQ Fastener

708303172

$19.99

866

Torx Screw M5 X 14

250000742

$1.47

1100

Rear Wheel Arch

708303061

$56.99

1110

Tuflok Plastic Rivet

293150230

$1.47

1120

Antenna Cap

708303169

$22.49

1170

Striker

708303392

$4.39

1180

Hex. Flange Nut M6

233161414

$2.11

8010

Hex. Flange Screw M8 X 40

207684054

$2.11

8040

Tuflok Plastic Rivet

293150230

$1.47
