Description

Price

10

Swing Arm

706001574

$455.99

20

Insert

293450275

$12.99

30

Ball Bearing

293350115

$12.11

40

Swing Arm Axle

706001182

$93.99

50

Bolt M20

706001579

$16.87

60

Spacer

706001152

$9.49

90

Sleeve

706001366

$1.26

150

Shock Absorber Shaft

706000409

$49.99

160a

Shock Absorber

706001552

$116.49

160b

Shock Absorber Spring

706001542

$61.49

160c

Spring Stopper

503193781

$18.49

160d

Cap

503193782

$10.49

160e

Urethane Cushion

503191609

$18.49

190

Hex. Flange Screw M10 X 55

207605554

$7.62

200

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

205

Air Valve

706002797

$18.49

210

Compressor

706001349

$469.99

230

Pneumatic Connector

706004028

$19.49

235

Circlip

293370123

$2.69

240

Connector

706000869

$34.99

245

Hose 4.32Mm 3000Mm Long

219704415

$55.99

250

Hose 4.32Mm 3000Mm Long

219704415

$55.99

260

Compressor Isolator

706000631

$13.99

270

Compressor Bracket

503193103

$4.69

280

Hex. Flange Nut M6

233061414

$1.68

290

Hex. Flange Screw M6 X 20

207662044

$2.00

300

Air Damper Kit

219800175

$291.49

310

Support Plate

706001082

$19.49

320

Hex. Forming Screw M6 X 10

210261050

$1.69

330

Elbow 90°

706001018

$28.99

340

Jam Nut M20

250100119

$4.13

350

Hex. Flange Screw M8 X 75

207687544

$7.41

360>360d

Air Pressure Manifold | Included 360 to 360d

706003947

$299.99

360c

Elbow 90°

706000928

$27.99

360d

Connector

706000869

$34.99

370

Torx Head Screw M4 X 12

250000915

$2.96

380

Tie Rod

706202505

$23.99

390

Position Sensor

710001651

$174.99

400

Hex. Flange Screw M5 X 10

207551044

$4.12

410

Hex. Flange Screw M6 X 20

207662044

$2.00

420

Hex. Flange Nut M6

233061414

$1.68

520

Elbow 90°

706000928

$27.99

530

Ckeck Valve

706000831

$38.99

540

Hose 4.32Mm 3000Mm Long

219704415

$55.99

7020

Stainless, Torx Screw M6 X 30

250000842

$2.11

7030

Lower Belt Guard

705002092

$48.99

7050

Stainless Steel Flat Washer

234062670

$2.11

7080

Hex. Flange Elastic Nut M6

233261494

$1.58

7290

Belt Guard Moulding

705009446

$35.99

7310

Self-Adhesive Spacer

705015250

$3.99

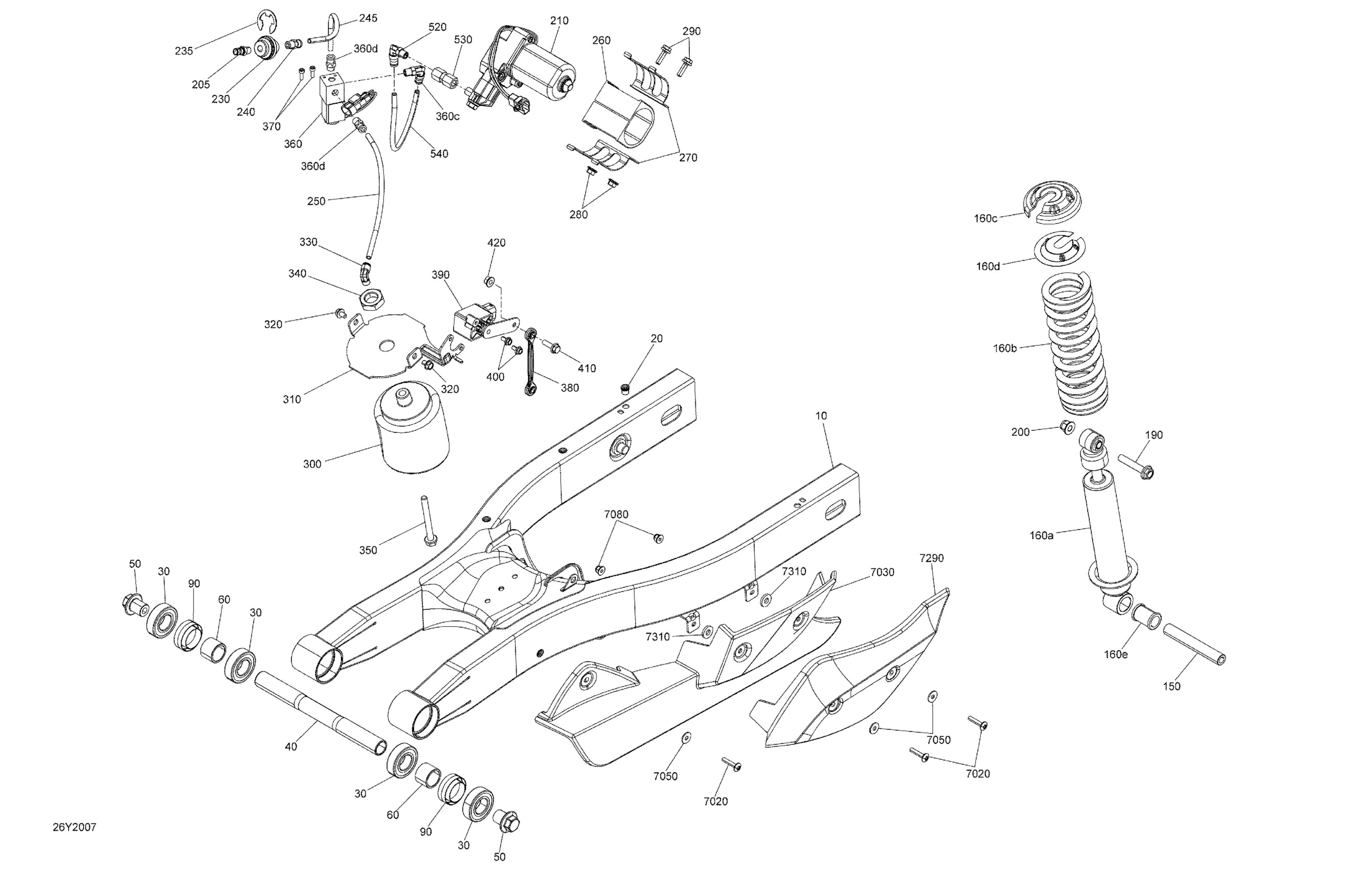

Can-Am 002 - RT LTD SE6, 2020 08- Suspension, Rear Diagram

Swing Arm

Insert

Ball Bearing

Swing Arm Axle

Bolt M20

Spacer

Sleeve

Shock Absorber Shaft

Shock Absorber

Shock Absorber Spring

Spring Stopper

Cap

Urethane Cushion

Hex. Flange Screw M10 X 55

Hex. Flange Elastic M10 x 1.5

Air Valve

Compressor

Pneumatic Connector

Circlip

Connector

Hose 4.32Mm 3000Mm Long

Hose 4.32Mm 3000Mm Long

Compressor Isolator

Compressor Bracket

Hex. Flange Nut M6

Hex. Flange Screw M6 X 20

Air Damper Kit

Support Plate

Hex. Forming Screw M6 X 10

Elbow 90°

Jam Nut M20

Hex. Flange Screw M8 X 75

Air Pressure Manifold | Included 360 to 360d

Elbow 90°

Connector

Torx Head Screw M4 X 12

Tie Rod

Position Sensor

Hex. Flange Screw M5 X 10

Hex. Flange Screw M6 X 20

Hex. Flange Nut M6

Elbow 90°

Ckeck Valve

Hose 4.32Mm 3000Mm Long

Stainless, Torx Screw M6 X 30

Lower Belt Guard

Stainless Steel Flat Washer

Hex. Flange Elastic Nut M6

Belt Guard Moulding

Self-Adhesive Spacer
