Description

Price

500

Deep Black, Tank Cover

705013571

$244.99

501

Self-Adhesive Spacer

705015250

$3.99

510

Stainless Steel Flat Washer

234062670

$2.11

520

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100208

$1.46

600a

Steel Black Met., LH Low Fairing

705008254

$104.99

600b

Acoustic Foam

705009153

$14.49

600c

Panel Nut M5 X 0.8

250000958

$4.23

610

Spacer

705010890

$2.89

620

Tuflok Plastic Rivet

293150230

$1.47

700a

Steel Black Met., RH Lower Fairing

705008255

$104.99

700b

Acoustic Foam

705009154

$13.49

700c

Panel Nut M5 X 0.8

250000958

$4.23

710

Spacer

705010890

$2.89

720

Tuflok Plastic Rivet

293150230

$1.47

800a

Steel Black Met., LH Lateral Fairing

705010846

$254.99

800b

Acoustic Foam

705009155

$16.99

800c

Acoustic Foam

705009157

$8.49

800d

Acoustic Foam

705009159

$16.99

800e

Polyurethane Stopper

705006634

$4.76

800f

Seal 1000Mm Long

219704373

$8.26

800h

Deep Black, LH Air Scoop

705011456

$42.99

800i

Anchor Pin

705009430

$1.37

800j

Torx Truss Screw K40 X 12

250000577

$2.11

800k

Brillant Chrome, Logo CAN-AM

704904675

$38.99

800l

Deep Black, LH Air Vent Grid

705010137

$19.99

800m

Torx Screw K50 X 16

250000720

$1.69

800n

Deep Black, LH Light Cap

705007787

$10.99

800o

LH Heat Shield

705008995

$13.99

800q

Torx Truss Screw K40 X 12

250000577

$2.11

810

Tuflok Plastic Rivet

293150230

$1.47

820

Torx Truss M5 X 20

250000586

$4.44

825

Stainless Steel Flat Washer M5

234052670

$1.01

900a

Steel Black, RH Lateral Fairing

705010838

$254.99

900b

Acoustic Foam

705009156

$16.99

900c

Acoustic Foam

705009158

$8.49

900d

Acoustic Foam

705009160

$16.99

900e

Polyurethane Stopper

705006634

$4.76

900f

Seal 1000Mm Long

219704373

$8.26

900g

Deep Black, RH Air Scoop

705011399

$42.99

900h

Anchor Pin

705009430

$1.37

900i

Torx Truss Screw K40 X 12

250000577

$2.11

900j

Brillant Chrome, Logo CAN-AM

704904675

$38.99

900k

Deep Black, RH Air Vent Grid

705010138

$19.99

900l

Torx Screw K50 X 16

250000720

$1.69

900m

Deep Black, RH Light Cap

705008963

$10.99

900o

RH Heat Shield

705008996

$13.99

900p

Torx Truss Screw K40 X 12

250000577

$2.11

910

Tuflok Plastic Rivet

293150230

$1.47

920

Torx Truss M5 X 20

250000586

$4.44

925

Stainless Steel Flat Washer M5

234052670

$1.01

1000

Service Center Fairing

705008058

$33.99

1010

Rubber Bumper

293830005

$8.09

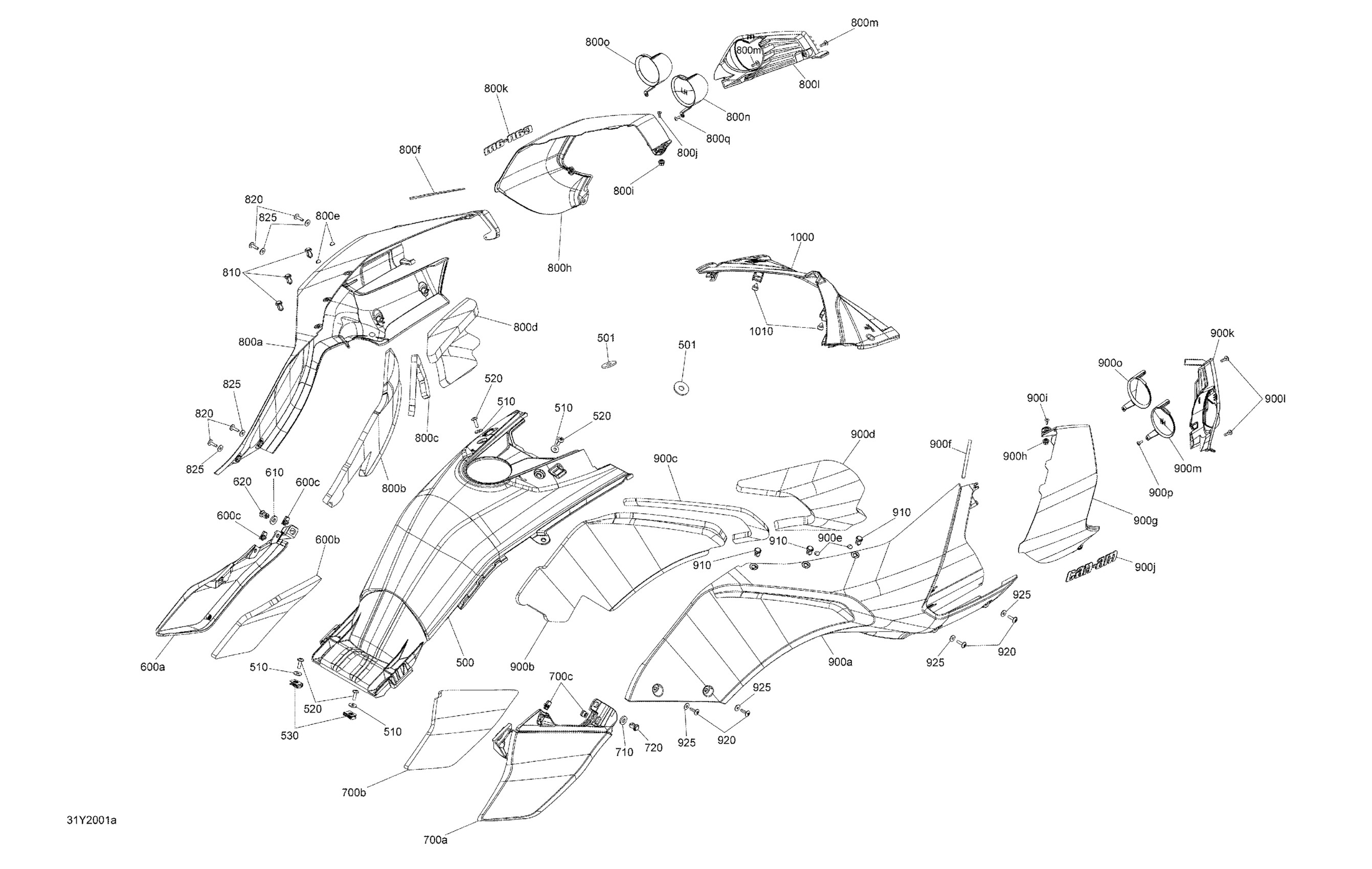

Can-Am 001 - F3 STD SE6, 2020 09- Body And Accessories Fairing Diagram

Deep Black, Tank Cover

Self-Adhesive Spacer

Stainless Steel Flat Washer

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Steel Black Met., LH Low Fairing

Acoustic Foam

Panel Nut M5 X 0.8

Spacer

Tuflok Plastic Rivet

Steel Black Met., RH Lower Fairing

Acoustic Foam

Panel Nut M5 X 0.8

Spacer

Tuflok Plastic Rivet

Steel Black Met., LH Lateral Fairing

Acoustic Foam

Acoustic Foam

Acoustic Foam

Polyurethane Stopper

Seal 1000Mm Long

Deep Black, LH Air Scoop

Anchor Pin

Torx Truss Screw K40 X 12

Brillant Chrome, Logo CAN-AM

Deep Black, LH Air Vent Grid

Torx Screw K50 X 16

Deep Black, LH Light Cap

LH Heat Shield

Torx Truss Screw K40 X 12

Tuflok Plastic Rivet

Torx Truss M5 X 20

Stainless Steel Flat Washer M5

Steel Black, RH Lateral Fairing

Acoustic Foam

Acoustic Foam

Acoustic Foam

Polyurethane Stopper

Seal 1000Mm Long

Deep Black, RH Air Scoop

Anchor Pin

Torx Truss Screw K40 X 12

Brillant Chrome, Logo CAN-AM

Deep Black, RH Air Vent Grid

Torx Screw K50 X 16

Deep Black, RH Light Cap

RH Heat Shield

Torx Truss Screw K40 X 12

Tuflok Plastic Rivet

Torx Truss M5 X 20

Stainless Steel Flat Washer M5

Service Center Fairing

Rubber Bumper
