Description

Price

10

Seat Driver Ass'y | Includes 10 to 10c

708002696

$489.99

10a2

Rubber Stopper

708000759

$4.19

20

Seat Passenger Ass'y | Includes 20 to 20c

708002728

$249.99

20a2

Rubber Stopper

708000759

$4.19

20a3

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

20a4

Washer

708001909

$9.95

20a5

Hex. Jam Nut M8

232180600

$0.67

20a6

Lug

708001741

$24.49

20a9

Screw M4 X 16

250000725

$3.49

50

Seat Cable

708001743

$53.99

60

Latch

705007379

$28.99

70

Brace

708001771

$4.09

80

Hex. Flange Screw M6 X 25, Scotch Grip

207562556

$2.11

90

Hex. Nut M6

232061414

$0.53

140

Hex. Flange Screw M6 X 20

207662044

$2.00

150

Flat Washer

250200082

$0.42

160

Panel Nut M6 X 1.0

250100208

$1.46

200

Passenger Backrest, Assembly | Only Available as an assembly

708303320

$429.99

210

Torx Screw K50 X 16

250000720

$1.69

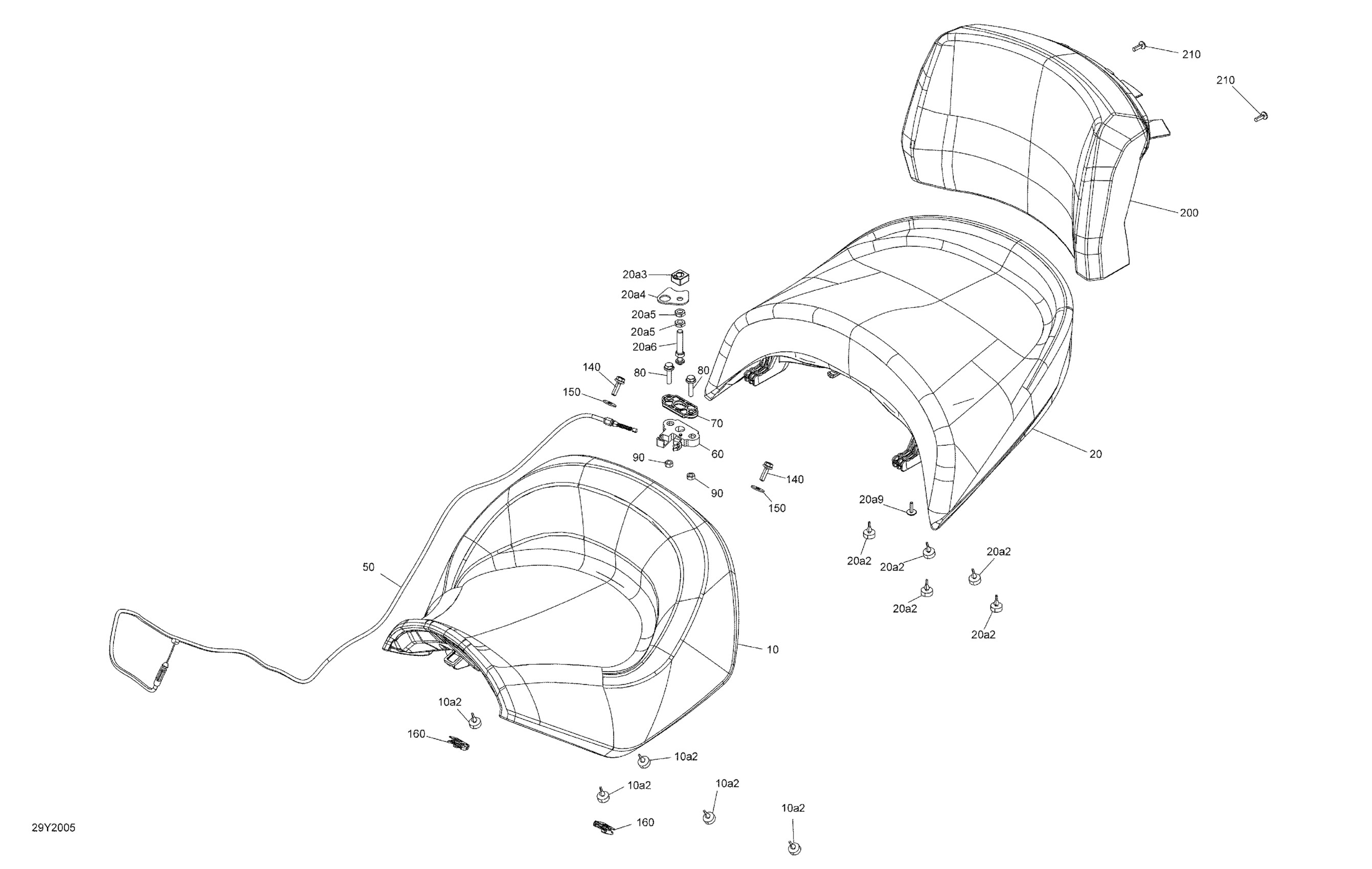

Can-Am 005 - F3 LTD SE6, 2020 09- Seat - LTD Diagram

Seat Driver Ass'y | Includes 10 to 10c

Rubber Stopper

Seat Passenger Ass'y | Includes 20 to 20c

Rubber Stopper

Elastic Nut Housing M8 | Included 10a6 to 10a6a

Washer

Hex. Jam Nut M8

Lug

Screw M4 X 16

Seat Cable

Latch

Brace

Hex. Flange Screw M6 X 25, Scotch Grip

Hex. Nut M6

Hex. Flange Screw M6 X 20

Flat Washer

Panel Nut M6 X 1.0

Passenger Backrest, Assembly | Only Available as an assembly

Torx Screw K50 X 16
