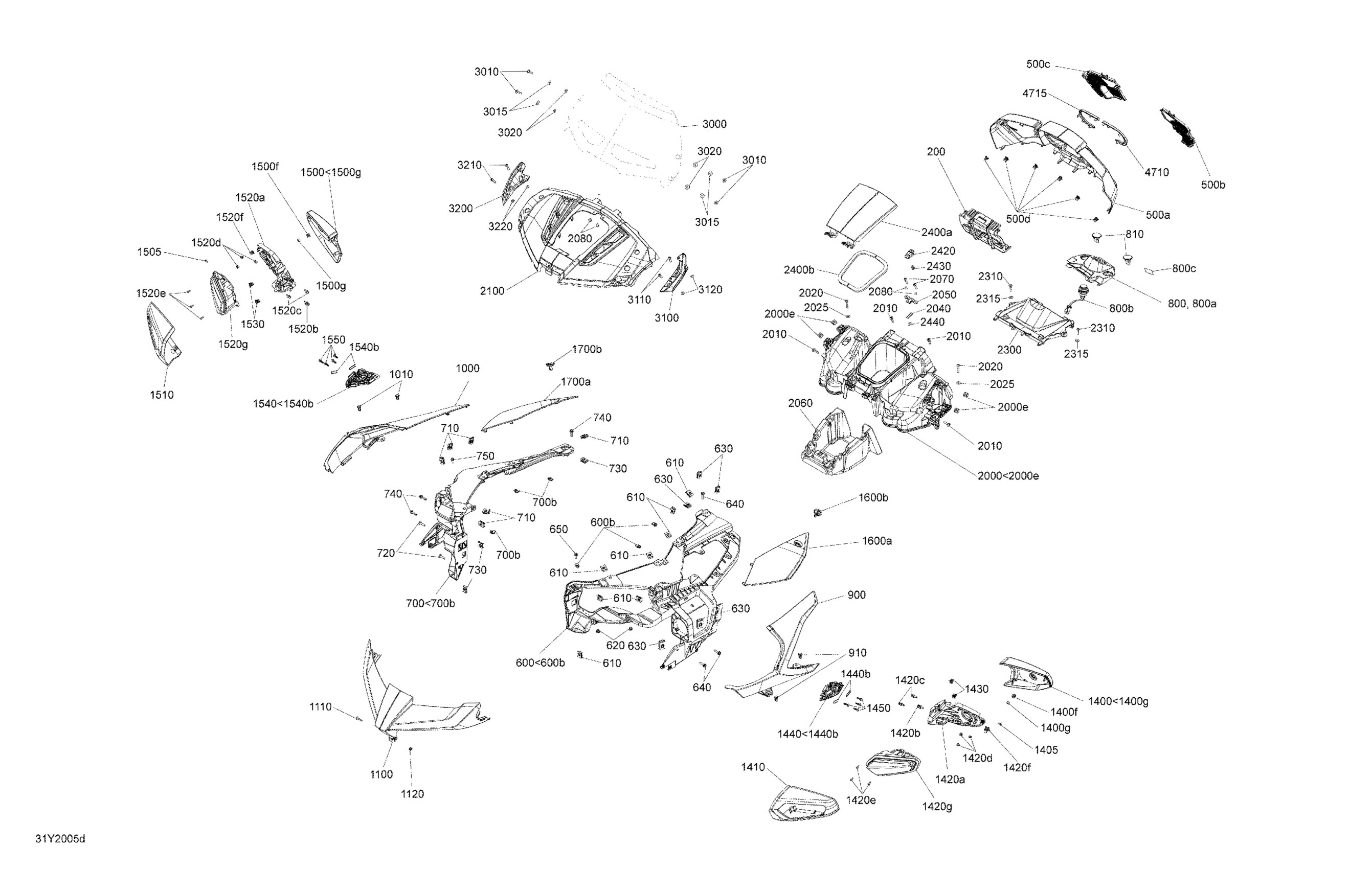

Can-Am 005 - F3 LTD SE6, 2020 09- Body And Accessories Console Diagram

Speedometer Support

705012178

$10.99

Dashboard

708400230

$63.99

LH Grille

708400231

$10.99

RH Grille

708400232

$10.99

Edge Clip

517302785

$0.88

LH Console Support | Included 100 to 100b

708400170

$99.99

Panel Nut M5 X 0.8

250000958

$4.23

Panel Nut M6 X 1.0

250100208

$1.46

Hex. Flange Elastic Nut M6

233261494

$1.58

Panel Nut M6 X 1.0

250100208

$1.46

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw M6 X 16

210261650

$1.67

RH Console Support | Included 300 to 300b

708400171

$104.99

Panel Nut M5 X 0.8

250000958

$4.23

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 25

250000758

$2.11

Panel Nut M6 X 1.0

250100208

$1.46

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw M6 X 16

210261650

$1.67

Switch Bezel

708400205

$14.67

Trim Switch | China

708400439

Unavailable

Rear Fog Light Switch | China

710007132

$62.49

Decal Rear Fog Light | China

704908272

Unavailable

Cap

708400046

$3.89

Steel Black, LH Consol Fairing

708400066

$219.99

Magma Red, LH Consol Fairing | Models Magma Red

708400450

$219.99

Liquid Titan, LH Console Fairing | Models Liquid Titan

708400414

$219.99

Tuflok Plastic Rivet

293150230

$1.47

Steel Black, RH Consol Fairing

708400068

$219.99

Magma Red, RH Consol Fairing | Models Magma Red

708400451

$219.99

Liquid Titan, RH Console Fairing | Models Liquid Titan

708400413

$219.99

Tuflok Plastic Rivet

293150230

$1.47

Steel Black, Nose Fairing

708400075

$229.99

Magma Red, Nose Fairing | Models Magma Red

708400452

$229.99

Liquid Titan, Nose Fairing | Models Liquid Titan

708400415

$224.99

Torx Screw M5 X 25

250000762

$2.11

Elastic Flange Nut M5

233251494

$2.11

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss Screw K40 X 12

250000577

$2.11

Steel Black, Mirror Shell LH | Model with Package T

708400497

$144.99

Steel Black, LH Mirror Shell

708400471

$58.99

Magma Red, LH Mirror Shell | Models Magma Red, Except Australia

708400485

$58.99

Magma Red, LH Mirror Shell | Models Magma Red, Australia

708400509

Unavailable

Liquid Titan, LH Mirror Shell | Models Liquid Titan, Except Australia

708400475

$58.99

Liquid Titan, Mirror Shell LH | Models Liquid Titan, Australia

708400507

$58.99

LH Mirror Support

708400224

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss Screw K40 X 12

250000577

$2.11

Edge Clip

517302785

$0.88

LH Front Flasher Unit

710001510

$163.99

LH Front Flasher Unit

710006197

$164.49

Clip

517306478

$1.09

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Steel Black, Mirror Shell RH | Model with Package T

708400498

$144.99

Steel Black, RH Mirror Shell

708400472

$58.99

Magma Red, RH Mirror Shell | Models Magma Red, Except Australia

708400486

$58.99

Magma Red, RH Mirror Shell | Models Magma Red, Australia

708400510

Unavailable

Liquid Titan, RH Mirror Shell | Models Liquid Titan, Except Australia

708400476

$58.99

Liquid Titan, Mirror Shell RH | Models Liquid Titan, Australia

708400508

$58.99

RH Mirror Support

708400225

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss Screw K40 X 12

250000577

$2.11

Edge Clip

517302785

$0.88

RH Front Flasher Unit

710001511

$163.99

RH Front Flasher Unit

710006198

$164.49

Clip

517306478

$1.09

Steel Black, LH Access Panel

708400256

$249.99

Magma Red, LH Access Panel | Models Magma Red

708400457

$244.99

Liquid Titan, LH Access Panel | Models Liquid Titan

708400420

$244.99

Cover Latch Quarter Turn

708400065

$2.79

Steel Black, RH Access Panel

708400257

$249.99

Bare, RH Acces Panel

708400262

$109.99

Liquid Titan, RH Access Panel | Models Liquid Titan

708400421

$244.99

Cover Latch Quarter Turn

708400065

$2.79

Upper Pod | Included 550 to 550f

708400219

$154.99

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Screw Nylon

250000732

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Spring

705006661

$3.39

Receptacle

708400215

$7.87

Pod Foam

708400103

$16.49

Torx Screw M5 X 25

250000762

$2.11

Elastic Flange Nut M5

233251494

$2.11

Upper Fairing

708400221

$36.99

Column Fairing

708400108

$17.99

Torx Screw M5 X 25

250000762

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Glove Box Door

708400217

$169.99

Seal

293250406

$28.99

Lever

708400213

$42.99

Stud M5

705011056

$19.49

Stainless Steel Flat Washer M5

234052670

$1.01

Windshield

708400342

$399.99

Torx Screw M5 X 20

250000528

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Rubber Washer

293830190

$2.43

Carbon Black, LH Windshield Base

708400127

$129.99

Chrome, LH Windshield Base

708400185

$129.99

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

Stainless Flat Washer M6

234061600

$0.33

Carbon Black, RH Windshield Base

708400128

$129.99

Chrome, RH Windshield Base

708400186

$129.99

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

Stainless Flat Washer M6

234061600

$0.33

Carbon Black, LH Trim Gauge

705012356

$44.99

Hyper Silver, LH Trim Gauge

705012755

$49.99

Carbon Black, RH Trim Gauge

705012357

$44.99

Hyper Silver, RH Trim Gauge

705012756

$49.99
