Description

Price

1

Sprag Clutch Housing

420458012

$119.99

2

Sprag Clutch

420659119

$179.99

3

Trigger Wheel

420266773

$18.49

4

Socket Head Screw M8 X1 8

420641509

$3.49

5>6

Gear 66T | Includes 4 to 5,

420435336

$154.99

7

Thrust Washer

420427111

$4.23

8

Circlip

420945720

$3.49

9>10

Starter Ass'y | Includes 8 to 9

420893830

$265.99

10

O-Ring

420250145

$10.33

11

Torx Flange Screw M6 X 30

420440647

$2.00

12

Pin Cylindrical

420229472

$14.24

13

Double Gear

420435382

$179.99

14

Gear 44T

420435391

$79.99

15

Gasket

420450010

$19.49

16

Valve Train Cover

420210296

$169.49

17

Torx Flange Screw M6 X 35

420440274

$1.01

18

O-Ring

420430783

$1.90

19

Plug Screw M24 X 1.5

420241635

$5.82

20

Carbon Brush Set

420881145

$204.99

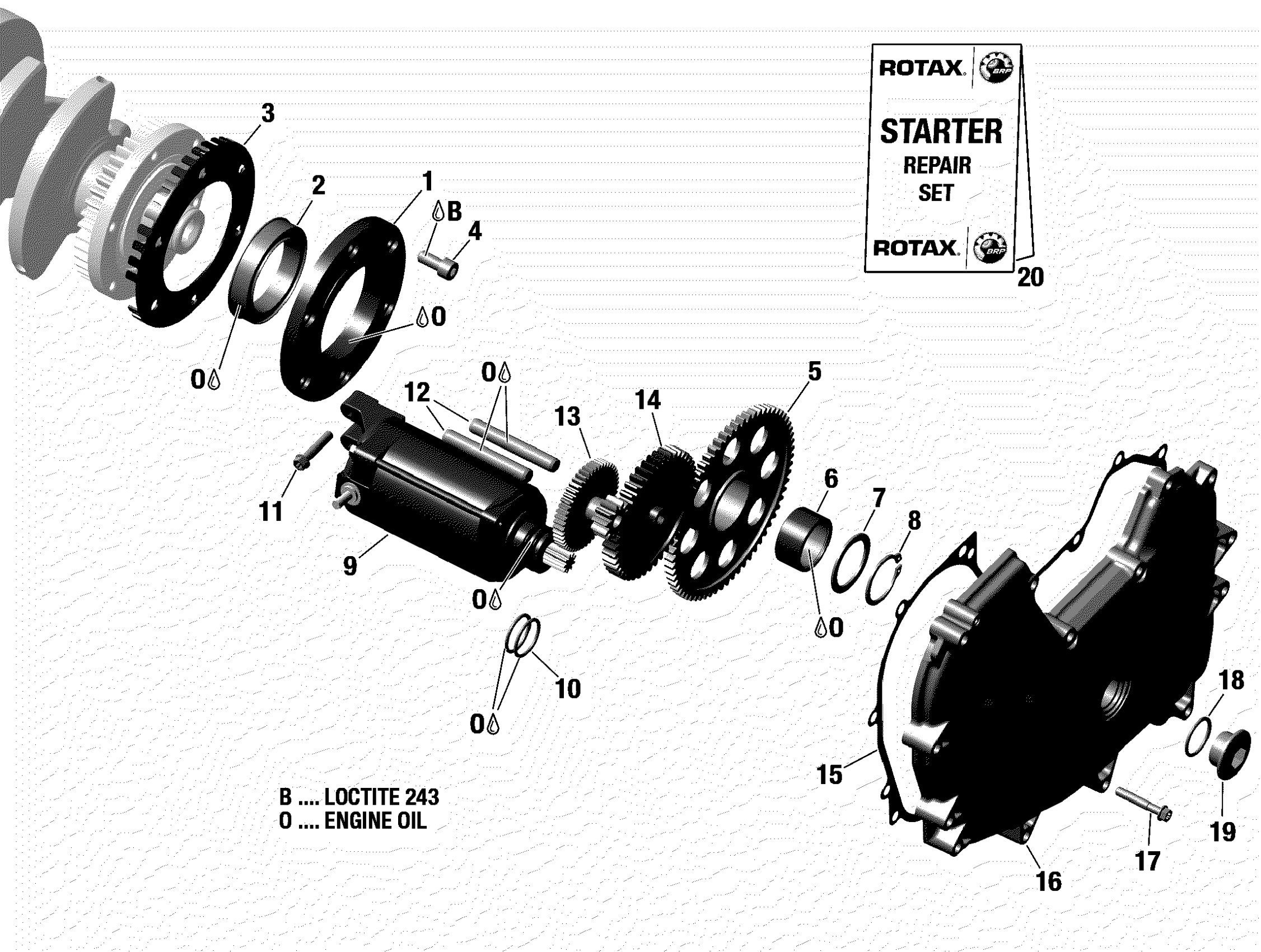

Can-Am 002 - F3 S SM6, 2020 03- Electric Starter Diagram

Sprag Clutch Housing

Sprag Clutch

Trigger Wheel

Socket Head Screw M8 X1 8

Gear 66T | Includes 4 to 5,

Thrust Washer

Circlip

Starter Ass'y | Includes 8 to 9

O-Ring

Torx Flange Screw M6 X 30

Pin Cylindrical

Double Gear

Gear 44T

Gasket

Valve Train Cover

Torx Flange Screw M6 X 35

O-Ring

Plug Screw M24 X 1.5

Carbon Brush Set
