Description

Price

10

Rear Swing Arm

706002399

$656.99

20

Ball Bearing, ID 12, OD 37, L 12

706002649

$14.81

40

Hex. Flange Screw M12 X 70

250000858

$3.80

50

Hex. Flange Screw M12 X 45, Scotch Grip

207524556

$7.51

60

Elastic Stop Nut M12

232521416

$1.69

70a

Rear Shock Ass'y | Comes with hose & reservoir

706002889

$444.99

70b

Spring Compression, Rear

706002890

$50.99

70c

Spring Stopper

706000567

$15.99

71

Button Adjustment

706003499

$2.99

72

Allen Screw M3 X 0.5 X 10

250000644

$2.11

75

Support Shock Absorber Tank Interior

706003311

$4.19

76

Support Shock Absorber Tank Exterior

706003312

$4.19

77

Torx Screw Truss Head K50X20 T20

250000760

$2.11

78

Tie-Rap 180 mm

414115200

$0.11

80

Urethane Bushing

503189117

$8.19

90

Spacer

706002678

$3.99

110

Hex. Flange Screw M10 X 60, Scotch Grip

207506056

$4.50

120

Hex. Elastic Flange Nut , M10 X 1.5

233101464

$2.11

130

Suspension Arm Lever, Primary

706002533

$158.99

140

Bearing, Needles

706002965

$12.71

150

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

160

Axle, Suspenion Arm

706002534

$20.99

170

Hex. Flange Screw M12 X 85, Scotch Grip

207528556

$6.77

180

Elastic Stop Nut M12

232521416

$1.69

200

Suspension Arm Lever, Secondary

706202664

$158.99

210

Bearing, Needles

706002965

$12.71

220

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

230

Pin Threaded M25 X 1.5 S.Grip, Lever

706002961

$36.99

500

Rear Fender Support

705013304

$114.99

500

Rear Fender Support

705014612

$114.99

505

Grommet Ass'y

705005055

$13.49

506

Rivet 3/16"

293150102

$0.70

507

Insert M5 - 0.8

293450267

$4.59

508

Insert Half Hex Body M6 x 1.0

250100199

$3.19

509

Panel Nut M6 X 1.0

250100208

$1.46

510

LH Fender Trim Support

705013305

$18.49

510

LH Fender Trim Support

705013621

$18.49

515

Torx Truss Screw M5 X 16, T25

250000578

$2.11

520

Rear Lower Fender

705013143

$204.99

520

Rear Lower Fender

705013625

$409.99

521

Torx Truss M6X14

250000789

$5.39

522

Panel Nut M6 X 1.0

250100208

$1.46

525

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

526

Screw 8-32

250001097

$2.89

530

Mud Guard

705013229

$39.99

550

Rear Fender Trim

706003151

$14.99

551

Torx Truss M6X14

250000789

$5.39

1000>1000a

License Plate Support Ass'y

706005433

$37.99

1000a

Red Reflector | Canada/USA

705012439

$9.99

1000>1000a

License Plate Support Kit | International

703100931

$71.99

1000a

Amber Reflector

520002069

$4.99

1810

Plastite Screw M4 X 10

250000805

$2.11

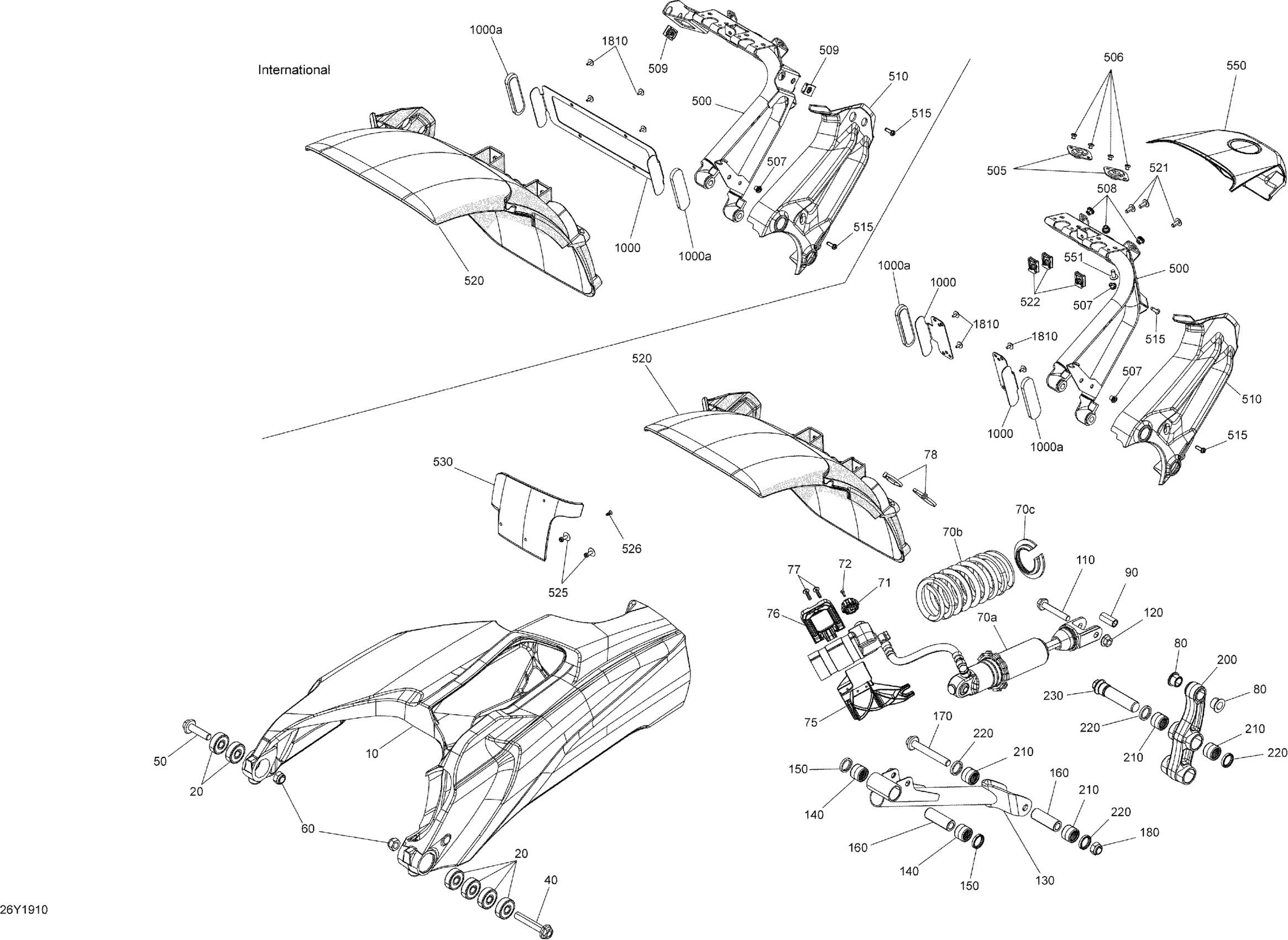

Can-Am 003 - RYKER Rally Edition 900 ACE, 2019 08- Suspension - Rear - Swing Arm / Shock / Fender Diagram

Rear Swing Arm

Ball Bearing, ID 12, OD 37, L 12

Hex. Flange Screw M12 X 70

Hex. Flange Screw M12 X 45, Scotch Grip

Elastic Stop Nut M12

Rear Shock Ass'y | Comes with hose & reservoir

Spring Compression, Rear

Spring Stopper

Button Adjustment

Allen Screw M3 X 0.5 X 10

Support Shock Absorber Tank Interior

Support Shock Absorber Tank Exterior

Torx Screw Truss Head K50X20 T20

Tie-Rap 180 mm

Urethane Bushing

Spacer

Hex. Flange Screw M10 X 60, Scotch Grip

Hex. Elastic Flange Nut , M10 X 1.5

Suspension Arm Lever, Primary

Bearing, Needles

Seal, Single Lip ID 19.4 OD 26

Axle, Suspenion Arm

Hex. Flange Screw M12 X 85, Scotch Grip

Elastic Stop Nut M12

Suspension Arm Lever, Secondary

Bearing, Needles

Seal, Single Lip ID 19.4 OD 26

Pin Threaded M25 X 1.5 S.Grip, Lever

Rear Fender Support

Rear Fender Support

Grommet Ass'y

Rivet 3/16"

Insert M5 - 0.8

Insert Half Hex Body M6 x 1.0

Panel Nut M6 X 1.0

LH Fender Trim Support

LH Fender Trim Support

Torx Truss Screw M5 X 16, T25

Rear Lower Fender

Rear Lower Fender

Torx Truss M6X14

Panel Nut M6 X 1.0

Pop Rivet 3/16" | DS 650 X

Screw 8-32

Mud Guard

Rear Fender Trim

Torx Truss M6X14

License Plate Support Ass'y

Red Reflector | Canada/USA

License Plate Support Kit | International

Amber Reflector

Plastite Screw M4 X 10
