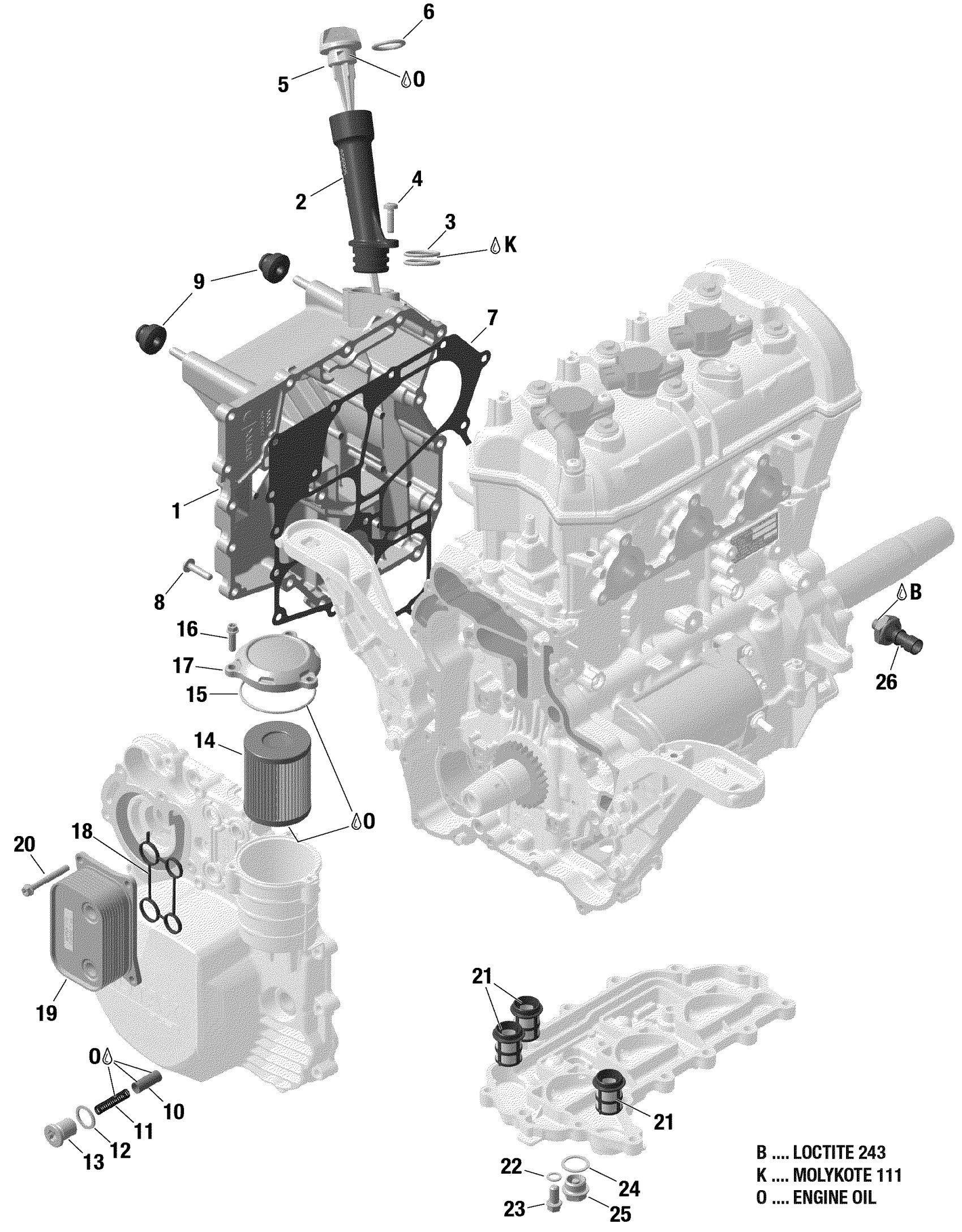

Can-Am 003 - RYKER Rally Edition 900 ACE, 2019 01- Engine - Lubrication - System - 900 ACE Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$110.99

2

Oil Filler Tube

420656905

$6.66

3

O-Ring

420430440

$3.43

4

Torx Flange Screw M6 X 20

420441383

$5.40

5

Oil Dipstick

420856675

$13.75

6

O-Ring

420631640

$2.11

7

Gasket

420431845

$20.49

8

Torx Flange Screw M6 X 25

420841548

$5.40

9

Rubber Grommet

420860150

$5.39

10

Pressure Regulating Piston

420256591

$14.22

11

Spring

420239445

$14.22

12

Gasket Ring

420430624

$1.89

13

Plug Screw

420441373

$13.76

14

Oil Filter

420956123

$13.77

15

O-Ring

420230923

$3.17

16

Torx Flange Screw M6 X 20

420440207

$3.06

17

Oil Filter cover

420612135

$11.63

18

Gasket

420431871

$11.60

19

Oil Water Heat Exchanger

420656698

$116.49

20

Torx Flange Screw M6 X 45

420440324

$0.98

21

Oil Sieve

420656680

$11.60

22

Sealing Ring

420950141

$2.00

23

Torx Flange Screw M8 X 16

420440852

$4.12

24

Crush Washer

420552280

$3.70

25

Drain Plug M18 X 1.5

420840278

$23.99

26

Oil Pressure Switch

420856536

$62.99
