Description

Price

50>50a

Battery 12 Amperes | Includes 50 to 50a

219800518

Unavailable

50a

Battery Bolt Kit

250000282

$7.29

60

Holding Strap

293850112

$18.49

100

Voltage Regulator

710006002

$174.99

101

Hex. Flange Screw M6 X 16

210261650

$1.67

150

Starter Relay

278003012

$42.49

1200

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

1201

Shock Damper

710003279

$10.49

1202

VCM Module Protector

710005542

$8.49

2005

Hex. Flange Screw M6 X 16

210261640

$2.11

2020

Hex. Flange Screw M6 X 16

210261640

$2.11

2150

Starter Cable, #8

710005419

$8.19

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561414

$0.55

2170

Hex. Elastic Stop Nut M6

232561600

$1.15

2180

Tie Wrap 368 mm

293750008

$1.04

2190

Tie Wrap 368 mm

293750008

$1.04

3000

Horn

710006157

$35.99

3006

Hex. Flange Screw M8 X 20

207682046

$1.90

3007

Hex. Elastic Flange Nut M8

233281416

$1.48

4000

Wiring Harness, Chassis

710006898

$629.99

4000

Wiring Harness, Chassis

710006897

$669.99

4010

Connector Plug

710004904

$8.79

4020

Dart Tie Rap 200MM

710003168

$7.09

4030

Dart Tie Rap 200MM

710003168

$7.09

4040

Dart Tie Rap 200MM

710003168

$7.09

4050

Dart Tie Rap 200MM

710003168

$7.09

4055

Dart Tie Rap 200MM

710003168

$7.09

4060

Tie Wrap 368 mm

293750008

$1.04

4070

Tie Wrap 368 mm

293750008

$1.04

4080

Tie Wrap 368 mm

293750008

$1.04

4090

Tie Wrap 368 mm

293750008

$1.04

4095

Tie Wrap 368 mm

293750008

$1.04

4100

Tie Wrap 368 mm

293750008

$1.04

4130

Tie Wrap 368 mm

293750008

$1.04

4140

Tie Wrap 368 mm

293750008

$1.04

4150

Tie Wrap 368 mm

293750008

$1.04

4160

Tie Wrap 368 mm

293750008

$1.04

4360

Front Electronic Component Support

710007891

$22.49

4370

Hex. Flange Screw M6 X 16

210261650

$1.67

4380

Grommet

705003264

$4.09

4390

Panel Nut M6 X 1.0

250100208

$1.46

4400

Tie Wrap 368 mm

293750008

$1.04

8325

Brake Switch

710008326

$49.99

8800

Yaw Rate Sensor

710005658

$179.99

8802

Hex. Flange Screw M6 X 16

210261650

$1.67

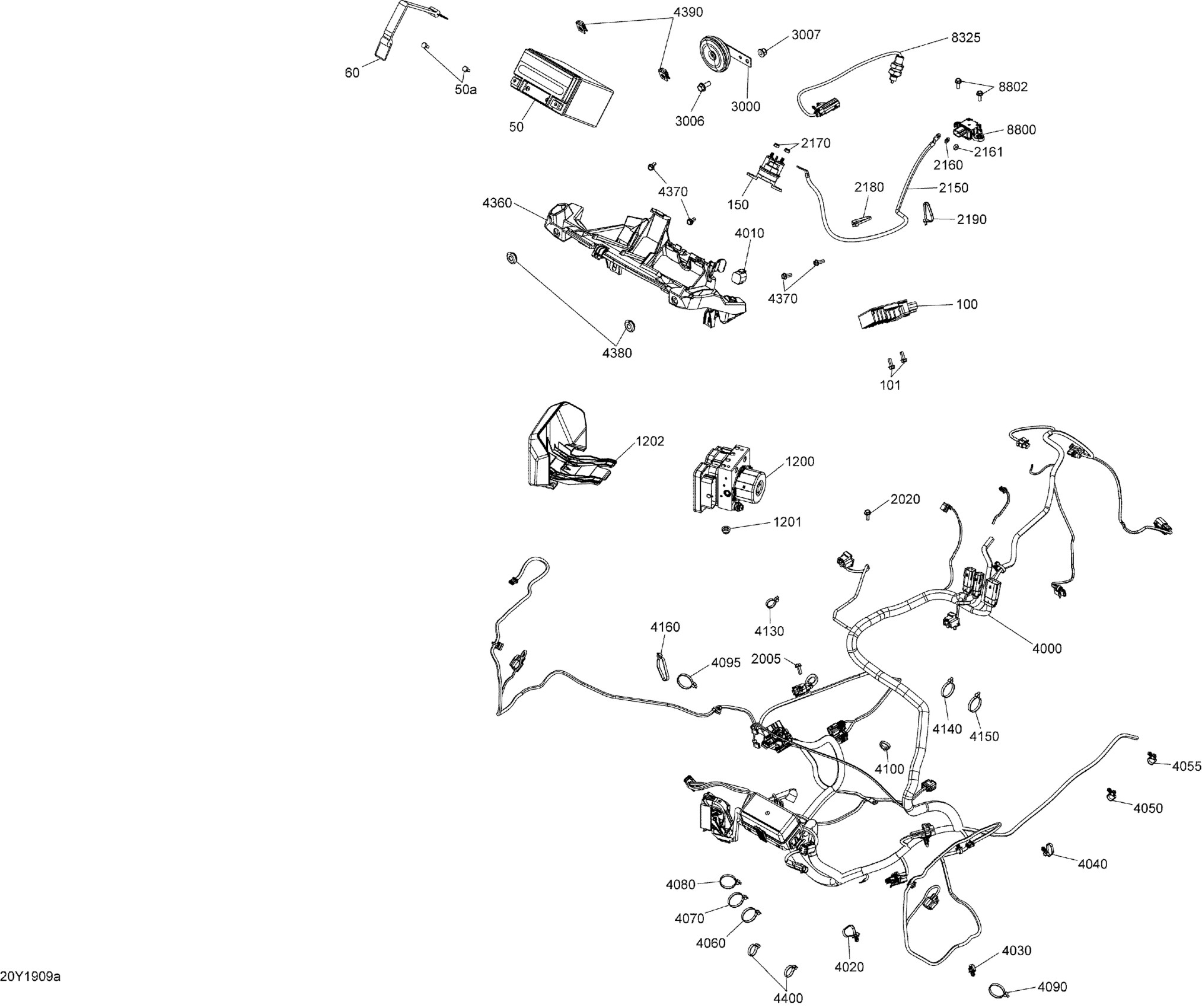

Can-Am 002 - RYKER STD 900 ACE, 2019 10- Electrical - System Diagram

Battery 12 Amperes | Includes 50 to 50a

Battery Bolt Kit

Holding Strap

Voltage Regulator

Hex. Flange Screw M6 X 16

Starter Relay

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

Shock Damper

VCM Module Protector

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 16

Starter Cable, #8

Stainless Flat Washer M6

Elastic Stop Nut M6

Hex. Elastic Stop Nut M6

Tie Wrap 368 mm

Tie Wrap 368 mm

Horn

Hex. Flange Screw M8 X 20

Hex. Elastic Flange Nut M8

Wiring Harness, Chassis

Wiring Harness, Chassis

Connector Plug

Dart Tie Rap 200MM

Dart Tie Rap 200MM

Dart Tie Rap 200MM

Dart Tie Rap 200MM

Dart Tie Rap 200MM

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Front Electronic Component Support

Hex. Flange Screw M6 X 16

Grommet

Panel Nut M6 X 1.0

Tie Wrap 368 mm

Brake Switch

Yaw Rate Sensor

Hex. Flange Screw M6 X 16
