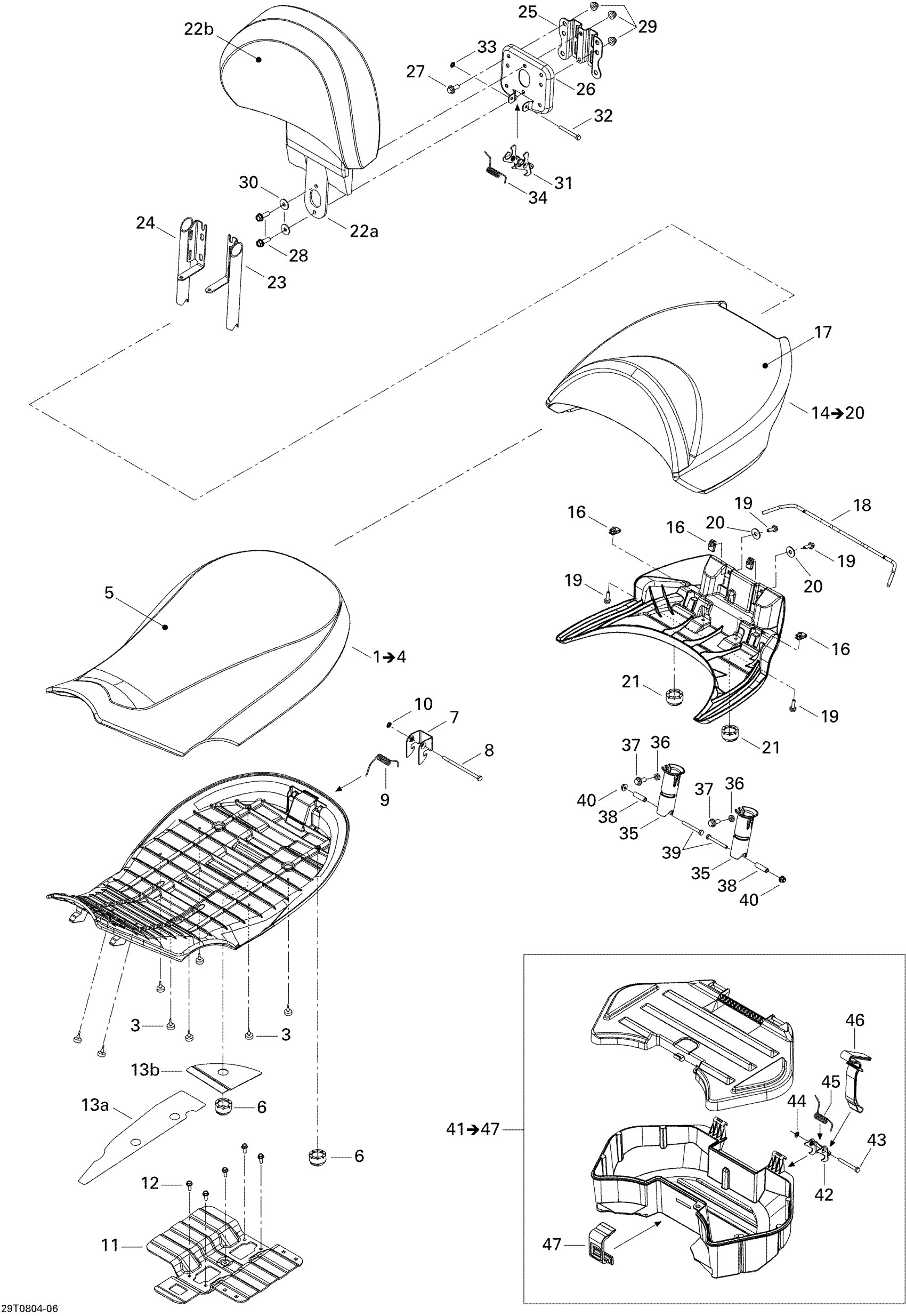

Can-Am Outlander MAX 400 STD, 2008 09- Seat Diagram

#

Description
Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$459.99

3

Rubber Stopper

708000759

$4.19

5

Seat Cover

708000556

$126.99

6

Bumper Rubber

708000760

$10.49

7

Latch, Black

708000144

$11.99

8

Hex. Screw M6 X 110

230061044

$1.48

9

Spring

708000369

$9.19

10

Push Nut

732610072

$2.19

11

Seat Reinforcement

708000512

Unavailable

12

Hex. Flange Screw M6 X 12

210261250

$1.90

13a

REFLECTING SHEET - Call your local BRP dealership

708000198

Unavailable

13b

Reflecting Sheet

708000322

Unavailable

14

Rear Seat Ass'y | Includes 16 to 20

708000805

$234.99

16

Panel Nut M6 X 1.0

250100198

$2.11

17

Seat Cover

708000457

$164.49

18

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

19

Hex. Flange Screw M6 X 20

207662044

$2.00

20

Lock Washer M6, Black

234161471

$0.53

21

Bumper Rubber

708000760

$10.49

22a

Backrest Ass'y

708000809

$519.99

22b

Backrest Cover

708000465

$126.99

23

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

24

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

25

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

26

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

27

Hex. Flange Screw M8 X 20

207682044

$1.15

28

Hex. Flange Screw M8 X 25

207682544

$1.35

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Flat Washer 8 mm

234082410

$1.47

31

LATCH - Call your local BRP dealership

708000448

Unavailable

32

Hex. Screw M6 X 55

207065544

$2.11

33

Push Nut

732610072

$2.19

34

Spring

708000369

$9.19

35

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

36

Hex. Jam Nut M8

232180600

$0.67

37

Hex. Screw M8 X 20

207182044

$0.74

38

INNER BUSHING - Call your local BRP dealership

708000530

Unavailable

39

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

40

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

41

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

Unavailable

42

LATCH - Call your local BRP dealership

708200066

Unavailable

43

HEX. CAP SCREW M6 X 55 - Call your local BRP dealership

207065534

Unavailable

44

Push Nut

732610072

$2.19

45

Spring

708000369

$9.19

46

BELT - Call your local BRP dealership

510004495

Unavailable

47

Cover Latch

708200120

$15.99
