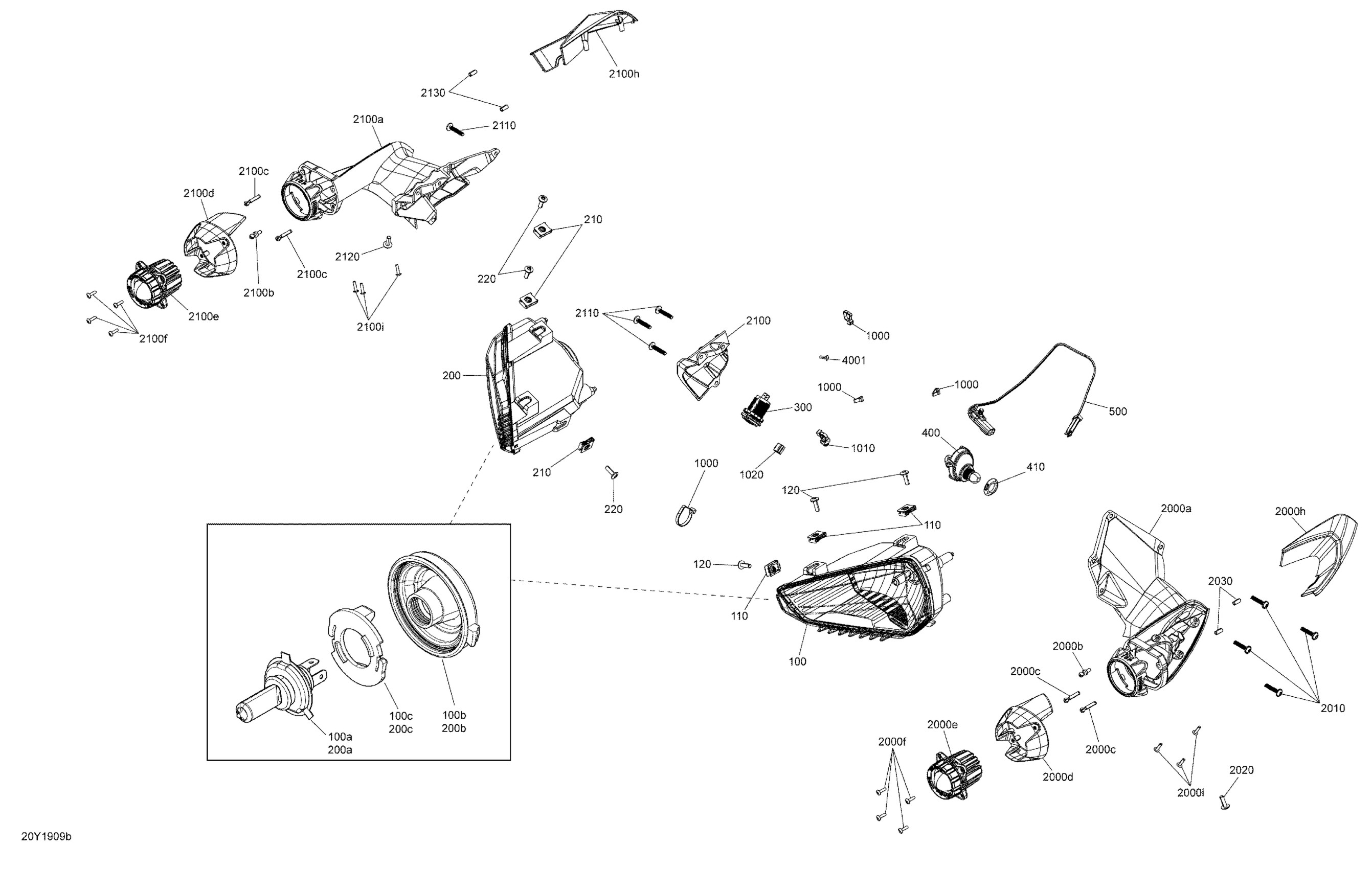

Can-Am 001 - RYKER STD 600 ACE, 2019 10- Electrical - Headlights Diagram

LH Headlight | Includes 300a to 300a3

710008173

$154.99

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Rubber Cap Protector

219800457

$4.09

Bulb Support

219800458

$2.49

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

RH Headlamp | Incl 200>200c

710005637

$154.99

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Rubber Cap Protector

219800457

$4.09

Bulb Support

219800458

$2.49

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

USB Outlet

219400510

$42.99

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Dess Key, RF Type

710006336

$63.49

Receptacle

705013894

$7.87

Safety Nut (DESS Switch)

278002963

$3.28

Passenger Footpeg Position Sensor

705601717

$29.99

Tie Wrap 368 mm

293750008

$1.04

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Christmas Tree Tie-Rap

710005237

$7.16

LH Headlamp Support | Includes 300x1 to 300x1a

705012655

$72.99

Ball Joint

705016154

$6.29

Adjustment Ball Joint | International

705014431

$15.49

LH Mobile Support

705016397

$6.49

Low Beam Ass'y

710006007

$349.99

Torx-Truss Pt K40 X 16

250000759

$2.11

LH Cover

705013632

$20.99

Torx-Truss Pt K40 X 16

250000759

$2.11

Screw PT K60 X 30

250000949

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cap

515176370

$4.69

RH Headlamp Support | Includes 300ab1 to 300ab1a

705012656

$72.99

Ball Joint

705016154

$6.29

Adjustment Ball Joint | International

705014431

$15.49

RH Mobile Support

705016398

$6.49

Low Beam Ass'y

710006007

$349.99

Torx-Truss Pt K40 X 16

250000759

$2.11

RH Cover

705013633

$20.99

Torx-Truss Pt K40 X 16

250000759

$2.11

Canister Holder

709001060

$4.59

Screw PT K60 X 30

250000949

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cap

515176370

$4.69

Torx Truss Screw K40 X 12

250000577

$2.11
