Description

Price

10

TANK_FUEL - Call your local BRP dealership

715007296

Unavailable

10c

Not Available As Spare Parts

XXX

Unavailable

15

Tie-rap Mount (square - self-adhsive)

293750040

$3.99

20

Seal

709000208

$14.99

30>30a

Fuel Pump Module My19-20 | Exhaust emission component

219800529

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

40a

Polyurethane Hose 1000Mm Long

219704391

$5.47

50

Hose Fuel

709001052

$46.49

60

Crimp Clamp, 15.3-706R

293650047

$3.29

80

Hose Fuel Vapor

709001053

$33.99

90a

Fuel Vapor Canister Carbon Activated

709000931

$99.49

90b

Hose Fuel Vapor

709000861

$33.99

90c

Bleed Selenoid Valve

709000991

$45.99

90d

Hose Fuel Vapor Ass'y | Includes 400j4 to 400j4f

709001006

$40.99

90e

Hose Fuel Vapor

709000863

$35.99

90f

Crimp Clamp, 15.3-706R

293650047

$3.29

90g

Hose Clamp 15.5mm-17.5mm (Spring Type)

293650294

$13.99

90h

Hose Clamp 9.8mm-11.5mm (Spring Type)

293650295

$13.99

90i

Hose Fuel Vapor

709000959

$15.99

90j

Flow Reducer

709000705

$6.09

100

Hose Holder

709001051

$2.99

110

Anchorage Support

709001036

$15.49

120a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

130

Rubber Pad

709001087

$14.23

170

Tank Protector

709001115

$4.39

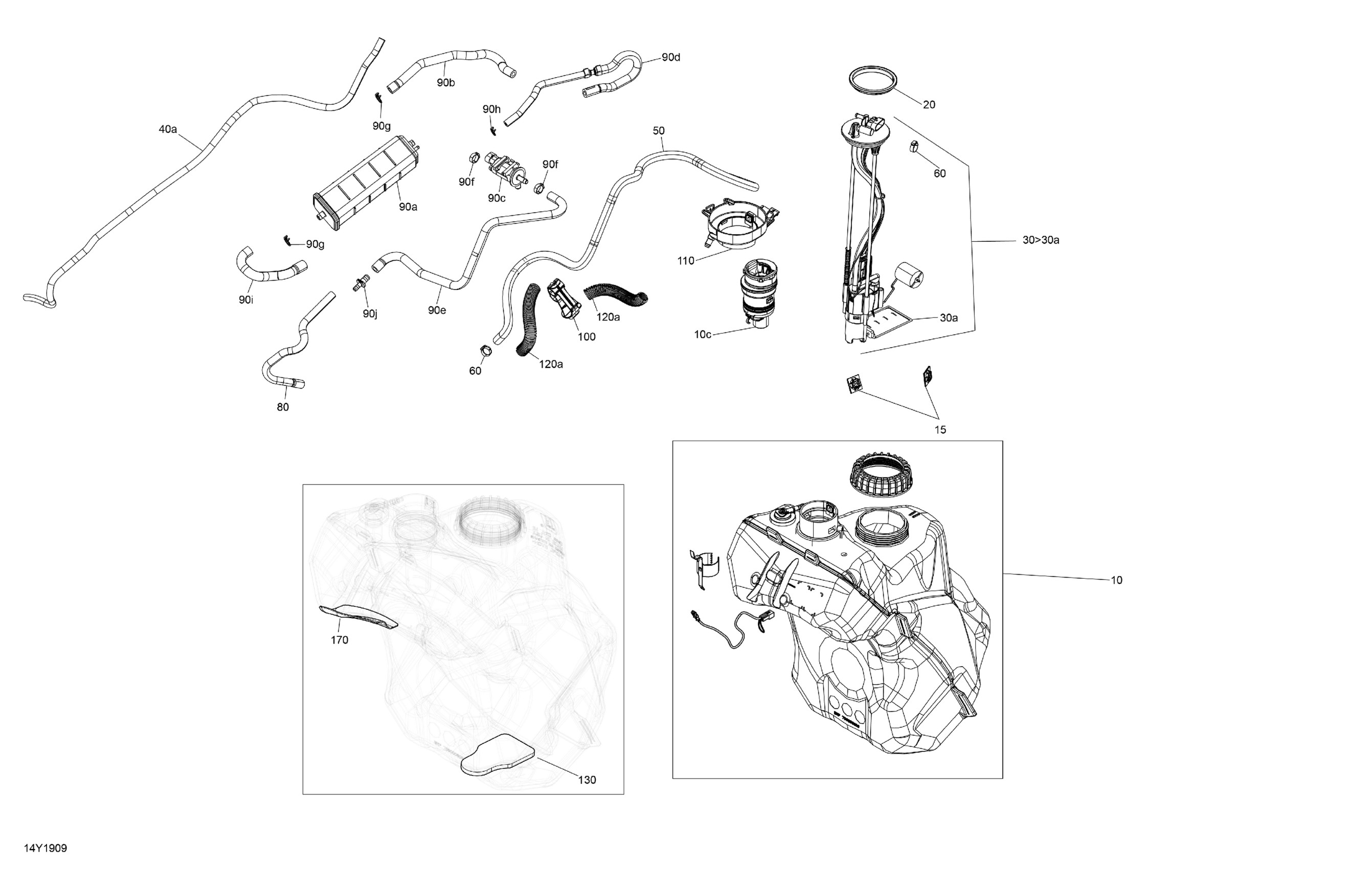

Can-Am 001 - RYKER STD 600 ACE, 2019 02- Fuel System Diagram

TANK_FUEL - Call your local BRP dealership

Not Available As Spare Parts

Tie-rap Mount (square - self-adhsive)

Seal

Fuel Pump Module My19-20 | Exhaust emission component

Prefilter Fuel Pump Kit 86mm Long

Polyurethane Hose 1000Mm Long

Hose Fuel

Crimp Clamp, 15.3-706R

Hose Fuel Vapor

Fuel Vapor Canister Carbon Activated

Hose Fuel Vapor

Bleed Selenoid Valve

Hose Fuel Vapor Ass'y | Includes 400j4 to 400j4f

Hose Fuel Vapor

Crimp Clamp, 15.3-706R

Hose Clamp 15.5mm-17.5mm (Spring Type)

Hose Clamp 9.8mm-11.5mm (Spring Type)

Hose Fuel Vapor

Flow Reducer

Hose Holder

Anchorage Support

Tubing 16 Mm 1000Mm Long

Rubber Pad

Tank Protector
