Description

Price

1

Oil Pump Gear 30 Teeth

420435170

$20.99

2

Needle Pin

420232431

$4.39

3

Intermediate Gear 28\18 Teeth Ass'y | Includes 3 to 4

420435165

$86.99

4

Needle Bushing

420232031

$15.74

5

Pin Cylindrical

420229472

$14.24

6

Torx Flange Screw M6 X 20

420440207

$3.06

7

Oil Pump Cover

420210220

$33.99

8

Needle Pin

420929075

$2.11

9

Oil Pump Rotor 16 mm

420956675

$36.99

10

Shaft And Oil Pump Rotor

420637077

$116.49

11

Pressure Regulator Valve Ass'y | Includes 11 to 12.

420456141

$67.99

12

O-Ring

420230405

$4.55

13

Torx Flange Screw M6 X 20

420440207

$3.06

14

Oil Pump Cover

420210260

$33.99

15

Needle Pin

420929075

$2.11

16

Oil Pump Rotor

420256831

$75.99

17

Needle Pin

420232731

$4.01

18

Oil Pump Cover

420210770

$33.99

19

O-Ring

420631830

$2.11

20

Oil Pump Shaft

420637070

$36.99

21

Oil Pump Rotor

420956278

$72.99

22

Oil Sieve

420656885

$13.62

23

Screw M14 X 1.5

420441681

$39.99

24

O-Ring

420250460

$2.32

25

O-Ring

420430115

$2.32

26

Gasket Ring

420430624

$1.89

27

Gasket

420431711

$5.77

28

Oil Radiator

420888857

$148.49

29

Torx Flange Screw M6 X 16

420440162

$3.17

30

Baffle

420201450

$17.03

31

O-Ring

420430372

$6.77

32

Vent Hose

420210710

$18.49

33

Torx Flange Screw M6 X 20

420440207

$3.06

34

O-Ring

420430783

$1.90

35

Vent Hose

420224810

$18.49

36

Torx Flange Screw M6 X 16

420641588

$2.11

37

Oil Tank Cover Ass'y | Includes 37 to 44

420893282

$423.49

38

Oil Filter

420956744

$20.99

39

Oil Filter Cover Ass'y | Includes 39 to 42

420210885

$33.49

40

O-Ring

420850482

$9.32

41

O-Ring

420950812

$5.93

42

O-Ring

420650927

$5.93

43

O-Ring

420931636

$17.39

44

Gasket

420431990

$17.04

45a

Oil Filler Tube Ass'y | Includes 45a to 49.

420456510

$29.99

45b

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

O-Ring

420631876

$11.60

48

O-Ring

420430140

$6.92

49

Spring Clip

420939343

$7.19

50

Torx Flange Screw M6 X 16

420641588

$2.11

51

Oil Gauge Ass'y | Includes 51 to 52

420656984

$29.99

52

Gasket Ring

420431790

$8.57

53

Silent Block

420201180

$8.47

54

Oil Pressure Switch

420256917

$49.99

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

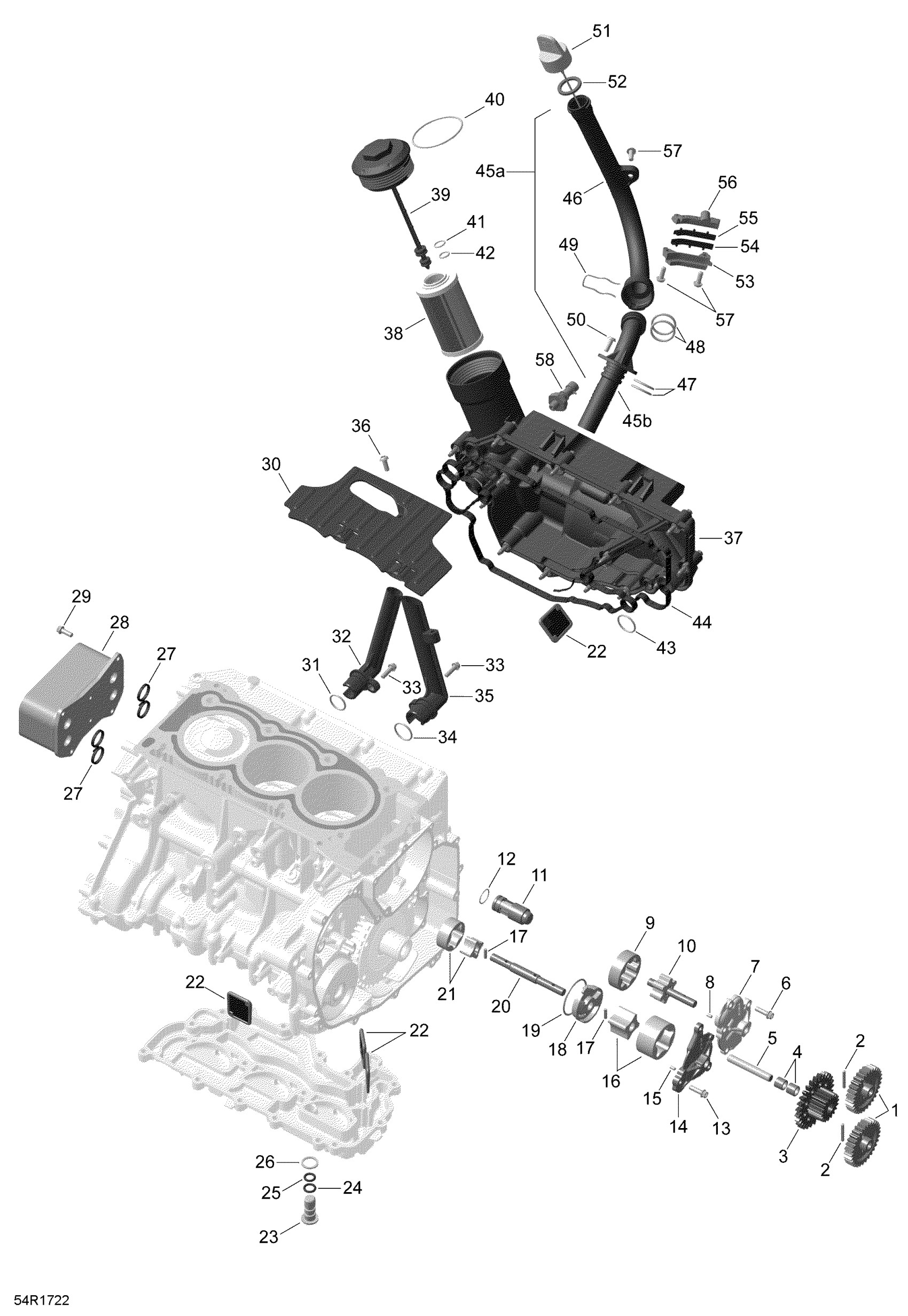

Can-Am 003 - RT LTD SE6, 2019 01- Engine Lubrication Diagram

Oil Pump Gear 30 Teeth

Needle Pin

Intermediate Gear 28\18 Teeth Ass'y | Includes 3 to 4

Needle Bushing

Pin Cylindrical

Torx Flange Screw M6 X 20

Oil Pump Cover

Needle Pin

Oil Pump Rotor 16 mm

Shaft And Oil Pump Rotor

Pressure Regulator Valve Ass'y | Includes 11 to 12.

O-Ring

Torx Flange Screw M6 X 20

Oil Pump Cover

Needle Pin

Oil Pump Rotor

Needle Pin

Oil Pump Cover

O-Ring

Oil Pump Shaft

Oil Pump Rotor

Oil Sieve

Screw M14 X 1.5

O-Ring

O-Ring

Gasket Ring

Gasket

Oil Radiator

Torx Flange Screw M6 X 16

Baffle

O-Ring

Vent Hose

Torx Flange Screw M6 X 20

O-Ring

Vent Hose

Torx Flange Screw M6 X 16

Oil Tank Cover Ass'y | Includes 37 to 44

Oil Filter

Oil Filter Cover Ass'y | Includes 39 to 42

O-Ring

O-Ring

O-Ring

O-Ring

Gasket

Oil Filler Tube Ass'y | Includes 45a to 49.

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

O-Ring

O-Ring

Spring Clip

Torx Flange Screw M6 X 16

Oil Gauge Ass'y | Includes 51 to 52

Gasket Ring

Silent Block

Oil Pressure Switch

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
