Description

Price

1100

Multifunction Gauge_Full Size Color

710006937

$1,209.99

3100

4.5" Speaker

710005433

$35.99

3101

Torx Truss Screw K40 X 12

250000577

$2.11

3150

4.5" Speaker

710005433

$35.99

3151

Torx Truss Screw K40 X 12

250000577

$2.11

4060

Stainless Steel Flat Washer

234062670

$2.11

4061

Hex. Flange Screw M6 X 16

210261650

$1.67

4064

Amplifier Holder

710005814

$17.49

4065

Amplifier 6 x 20 Watts

710006566

$455.49

4071

Screw-Torx Button Head M5 X 14

235551454

$7.51

4075

Connector Plug

710004901

$13.22

4076

Connector Plug

710004901

$13.22

4118

Tie Wrap 142 mm

293750002

$1.25

4300

Dashboard Harness | See Electrical Harness Console for more details

710006487

$339.99

4302

Tie-Rap 173 mm

293750009

$1.04

4304

Clip Tie-Rap

293750063

$8.75

4307

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4315

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4316

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4320

Tie-Rap 180 mm

414115200

$0.11

4322

Packard Connector With Plug | Brazil

710002162

$13.22

4323

Packard Connector With Plug | Brazil

710002162

$13.22

4600

Switch Harness

710005527

$34.99

4601

Tie-Rap 180 mm

414115200

$0.11

8000>8000a

Ignition Switch with Harness

710005640

$306.99

8000a

DESS Antenna

219800373

$60.49

8001

Switch Cover

710003594

$16.49

8005

Tie-Rap Clip

710002896

$4.39

8010

Switch Support

710001365

$20.99

8011

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

8190a

Plug

710002260

$4.65

8190b

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

8190c

Switch, Heat Grip

710002354

$41.49

8190d

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

8190e

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

8190f

Beam Switch | North America

710002351

$20.49

8190g

PANEL SEAL - Call your local BRP dealership | Australia, Brazil, Europe, Japan

710002288

Unavailable

8190h

PANEL SEAL - Call your local BRP dealership | Australia, Brazil, Europe, Japan

710002288

Unavailable

8604

Connector Holder

710002033

$3.39

8605

Connector Holder

710002033

$3.39

8606<8606a

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

8606a

Key Sleeve

710003597

$26.49

9050

2.5" Speaker

710005432

$22.49

9051

Torx Truss Screw K40 X 12

250000577

$2.11

9100

2.5" Speaker

710005432

$22.49

9101

Torx Truss Screw K40 X 12

250000577

$2.11

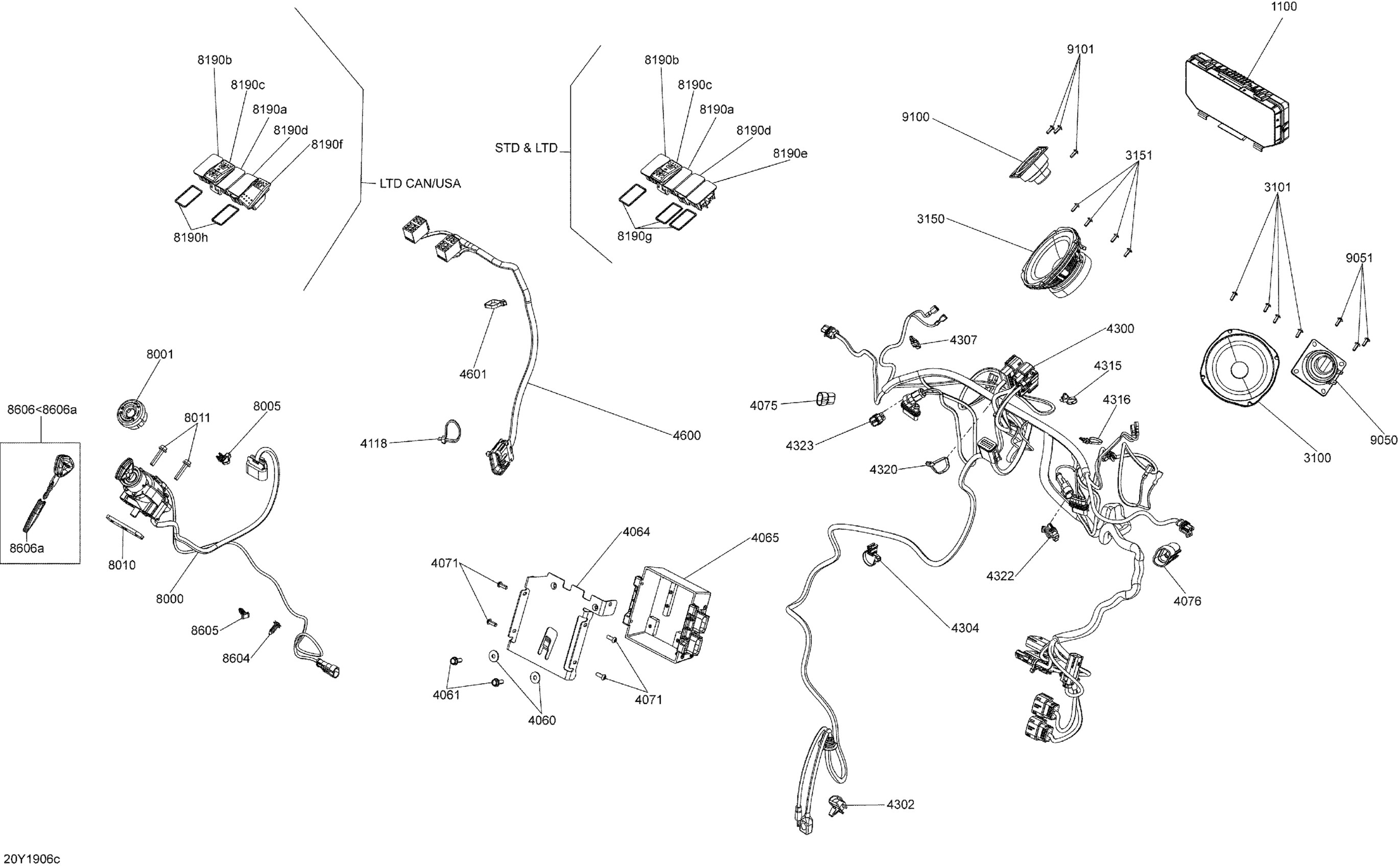

Can-Am 002 - RT STD SE6, 2019 10- Electrical Console - Radio & Switch Diagram

Multifunction Gauge_Full Size Color

4.5" Speaker

Torx Truss Screw K40 X 12

4.5" Speaker

Torx Truss Screw K40 X 12

Stainless Steel Flat Washer

Hex. Flange Screw M6 X 16

Amplifier Holder

Amplifier 6 x 20 Watts

Screw-Torx Button Head M5 X 14

Connector Plug

Connector Plug

Tie Wrap 142 mm

Dashboard Harness | See Electrical Harness Console for more details

Tie-Rap 173 mm

Clip Tie-Rap

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

Tie-Rap 180 mm

Packard Connector With Plug | Brazil

Packard Connector With Plug | Brazil

Switch Harness

Tie-Rap 180 mm

Ignition Switch with Harness

DESS Antenna

Switch Cover

Tie-Rap Clip

Switch Support

Hex. Flange Screw M6 X 30, Scotch Grip

Plug

Plug Carling | Australia, Brazil, Europe, Japan

Switch, Heat Grip

Plug Carling | Australia, Brazil, Europe, Japan

Plug Carling | Australia, Brazil, Europe, Japan

Beam Switch | North America

PANEL SEAL - Call your local BRP dealership | Australia, Brazil, Europe, Japan

PANEL SEAL - Call your local BRP dealership | Australia, Brazil, Europe, Japan

Connector Holder

Connector Holder

Ignition Key Kit | Includes 35b1 to 35b1a

Key Sleeve

2.5" Speaker

Torx Truss Screw K40 X 12

2.5" Speaker

Torx Truss Screw K40 X 12
