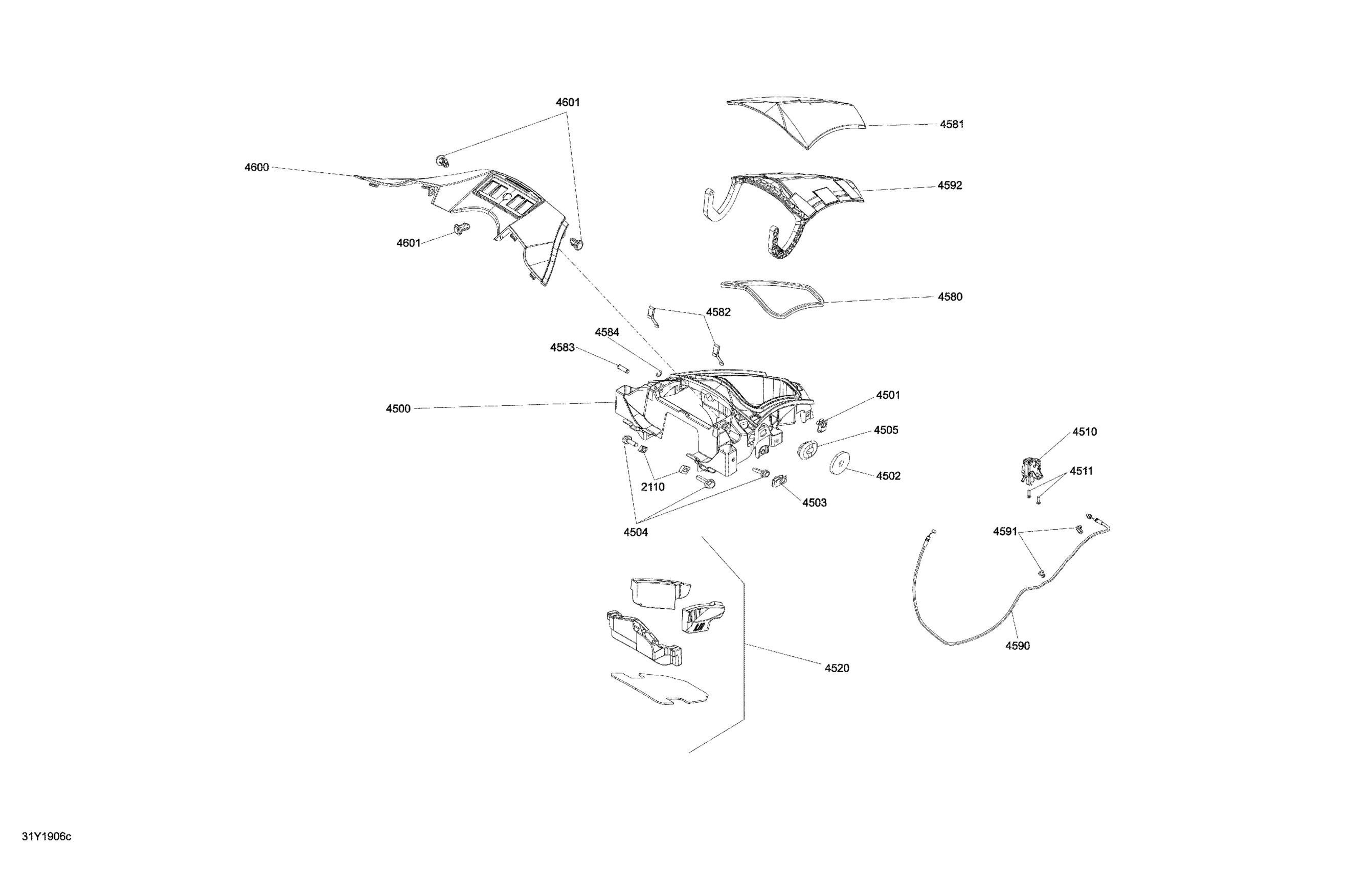

Can-Am 002 - RT STD SE6, 2019 09- System Console - Glove Box Diagram

Description

Price

2110

Square Nut M6

232862412

$1.49

4500

Glove Box

705002726

$79.99

4501

Panel Nut M6 X 1.0

250100198

$2.11

4502

Oval Washer

705000321

$5.61

4503

Panel Nut M6 X 1.0

250100198

$2.11

4504

Hex. Flange Screw M6 X 20

207662044

$2.00

4505

Rubber Washer

705007085

$1.57

4510

Push Latch

705007380

$62.99

4511

Flange Torx Screw K40 X 16

250000287

$2.11

4520

OUTER FRONT INSULATION FOAM KIT - Call your local BRP dealership

219800172

Unavailable

4580

NEOPRENE SEAL, METER - Call your local BRP dealership

219800143

Unavailable

4581

Glove Box Cover, Vegas White B-313 | Model-White

705006973

$169.99

4582

Glove Box Spring

705003748

$25.99

4583

Retainer Pin

705003295

$18.49

4584

Circlip

705600272

$9.23

4590

Glove Box Cable

705007381

$24.99

4591

Tie Wrap 142 mm

293750002

$1.25

4592

Door Box

705009361

$169.99

4600

Center Panel

705004461

$38.99

4601

Tuflok Plastic Rivet

293150230

$1.47
