Description

Price

2100

Console Support

705002743

$99.99

2105

Torx Screw M6 X 20

250000712

$2.11

2110

Square Nut M6

232862412

$1.49

2120

Panel Nut M6 X 1.0

250100198

$2.11

2125

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

2140

LH Acoustic Foam

707800349

$18.49

2145

RH Acoustic Foam

707800341

$18.49

2150

Black, Dart

293730006

$0.99

2500

Console Cross-support

705012150

$82.99

2505

Hex. Flange Screw M6 X 16

210261650

$1.67

2510

Hex. Flange Screw M6 X 20

207662044

$2.00

2515

Panel Nut M6 X 1.0

250100198

$2.11

2520

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

2700

LH Speaker Housing Ass'y

705011996

$20.99

2705

RH Speaker Housing Ass'y

705011997

$19.49

2710

Torx Screw M5 X 25

250000762

$2.11

2711

Hex. Flange Nut M5

250100071

$2.11

2712

Washer M5

250200025

$0.74

2715

Panel Nut M5 X 0.8

250000958

$4.23

3000

Guide Chart Support

705002746

$27.99

3005

Edge Clip

517302785

$0.88

3010

Guide Chart

705009360

$27.99

3100

Dashboard

705006656

$114.99

3101

LH Lower Speaker Grille

705011416

$13.69

3102

RH Lower Speaker Grille

705011417

$14.69

3110

Torx Screw M6 X 20

250000722

$1.68

3111

Flat washer M6

250200164

$1.01

3115

Panel Nut M5 X 0.8

250000958

$4.23

3120

Oval Washer

705000321

$5.61

3200

Dashboard Bezel

705011418

$49.99

3201

LH Upper Speaker Grille

705011603

$4.66

3202

RH Upper Speaker Grille

705011605

$4.66

3205

Torx Screw M5 X 14

250000742

$1.47

3400>3400f

Motor Support Ass'y

705011453

$759.99

3400a

Rear Arm Ass'y

219800432

$83.99

3400b

Sleeve

705003267

$9.48

3400c

Hex. Screw M6 X 50

207065060

$2.22

3400d

Elastic Stop Nut M6, Brass

232561200

$4.23

3400e

Stainless Flat Washer M6

234061600

$0.33

3400f

Windshield Motor

278002579

$234.99

3405

Hex. Flange Screw M6 X 35

207663544

$0.90

3560

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

3575>3575a

Pivot Arms Repair Kit | Included 4220 to 4220b

219800355

$47.99

3575a

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

3750

Console Support Plate

705003779

$27.99

3755

Spherical Head Stud

705004322

$17.26

3760

Spherical Head Stud

705004323

$17.26

3800>3800b

LH Mirror Assembly | Includes 1 to 9

708400146

$306.99

3800a

LH Lower Mirror Shell

705003148

$144.99

3800b

LH Front Flasher Unit

710001510

$163.99

3800c

Housing with Spring | Includes 3 to 5

219800156

$21.99

3800d

Housing with Spring

219800158

$11.49

3800e

Screw

219800118

$6.35

3800f

Screw 2.9 X 12.5

219800157

$6.89

3805>3805b

RH Mirror Assembly | Includes 10 to 18

708400147

$306.99

3805a

RH Lower Mirror Shell

705003159

$144.99

3805b

RH Front Flasher Unit

710001511

$163.99

3805c

Housing with Spring | Includes 3 to 5

219800156

$21.99

3805d

Housing with Spring

219800158

$11.49

3805e

Screw

219800118

$6.35

3805f

Screw 2.9 X 12.5

219800157

$6.89

3850

LH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

705007405

$144.99

3855

RH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

705007406

$139.99

4700>4700a

RH Speaker Support Ass'y | Includes 4700 to 4700a

708400242

$13.62

4700a

Seal 1000Mm Long

219704373

$8.26

4705>4705a

LH Speaker Support Ass'y | Includes 4705 to 4705a

708400243

$12.99

4705a

Seal 1000Mm Long

219704373

$8.26

4710

Deep Black, LH Trim Gauge

705012349

$5.59

4715

Deep Black, RH Trim Gauge

705012351

$5.59

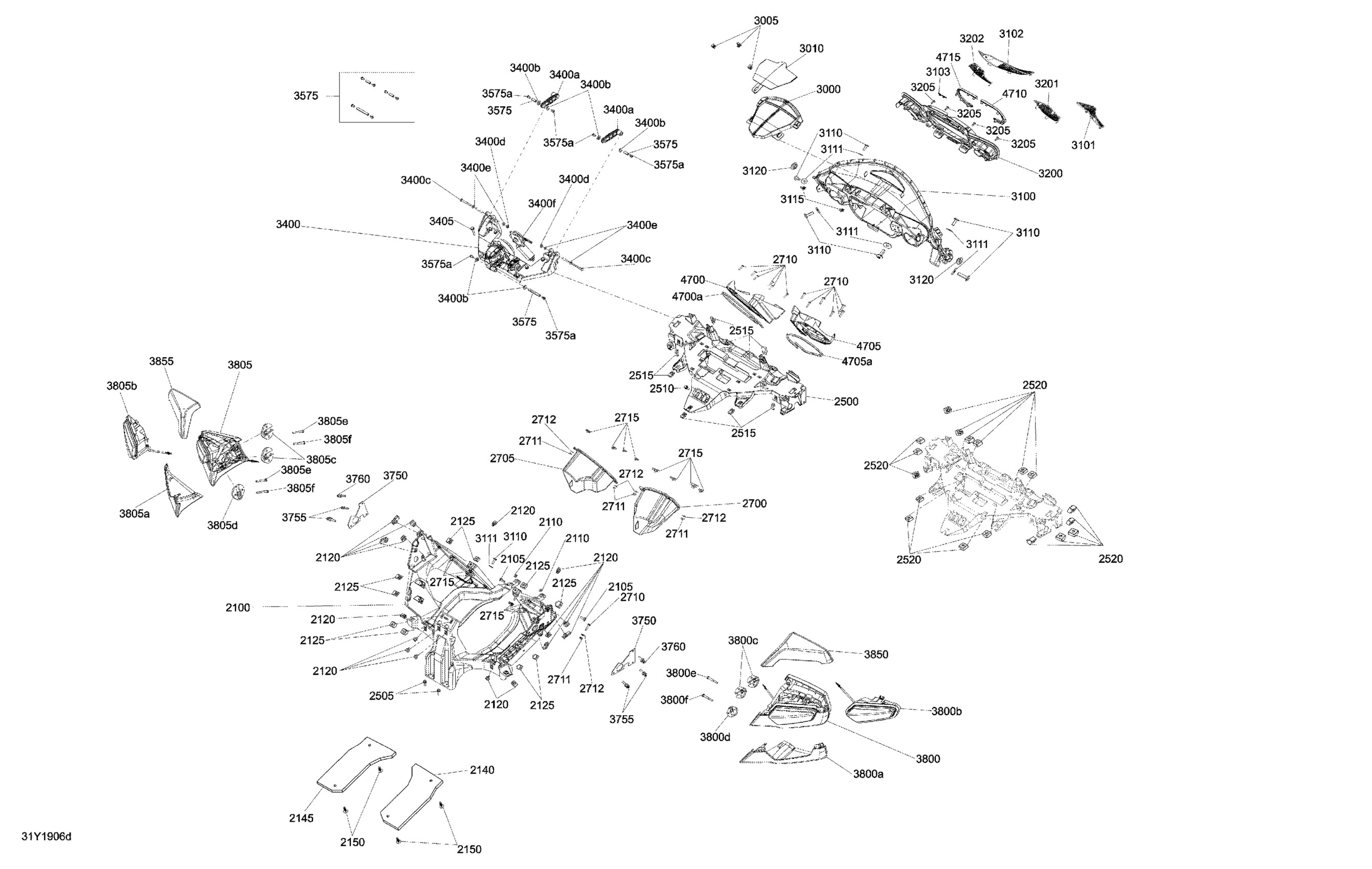

Can-Am 002 - RT STD SE6, 2019 09- System Console - Front Console, Mirrors & Supports Diagram

Console Support

Torx Screw M6 X 20

Square Nut M6

Panel Nut M6 X 1.0

Housing Nut M6 | Included 550f to 550f2

LH Acoustic Foam

RH Acoustic Foam

Black, Dart

Console Cross-support

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Housing Nut M6 | Included 550f to 550f2

LH Speaker Housing Ass'y

RH Speaker Housing Ass'y

Torx Screw M5 X 25

Hex. Flange Nut M5

Washer M5

Panel Nut M5 X 0.8

Guide Chart Support

Edge Clip

Guide Chart

Dashboard

LH Lower Speaker Grille

RH Lower Speaker Grille

Torx Screw M6 X 20

Flat washer M6

Panel Nut M5 X 0.8

Oval Washer

Dashboard Bezel

LH Upper Speaker Grille

RH Upper Speaker Grille

Torx Screw M5 X 14

Motor Support Ass'y

Rear Arm Ass'y

Sleeve

Hex. Screw M6 X 50

Elastic Stop Nut M6, Brass

Stainless Flat Washer M6

Windshield Motor

Hex. Flange Screw M6 X 35

Socket Head Screw M6 X 10, Scotch Grip

Pivot Arms Repair Kit | Included 4220 to 4220b

Socket Head Screw M6 X 10, Scotch Grip

Console Support Plate

Spherical Head Stud

Spherical Head Stud

LH Mirror Assembly | Includes 1 to 9

LH Lower Mirror Shell

LH Front Flasher Unit

Housing with Spring | Includes 3 to 5

Housing with Spring

Screw

Screw 2.9 X 12.5

RH Mirror Assembly | Includes 10 to 18

RH Lower Mirror Shell

RH Front Flasher Unit

Housing with Spring | Includes 3 to 5

Housing with Spring

Screw

Screw 2.9 X 12.5

LH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

RH Upper Mirror Shell, Vegas White B-313 | Model-RT STD Vegas White Pearl

RH Speaker Support Ass'y | Includes 4700 to 4700a

Seal 1000Mm Long

LH Speaker Support Ass'y | Includes 4705 to 4705a

Seal 1000Mm Long

Deep Black, LH Trim Gauge

Deep Black, RH Trim Gauge
