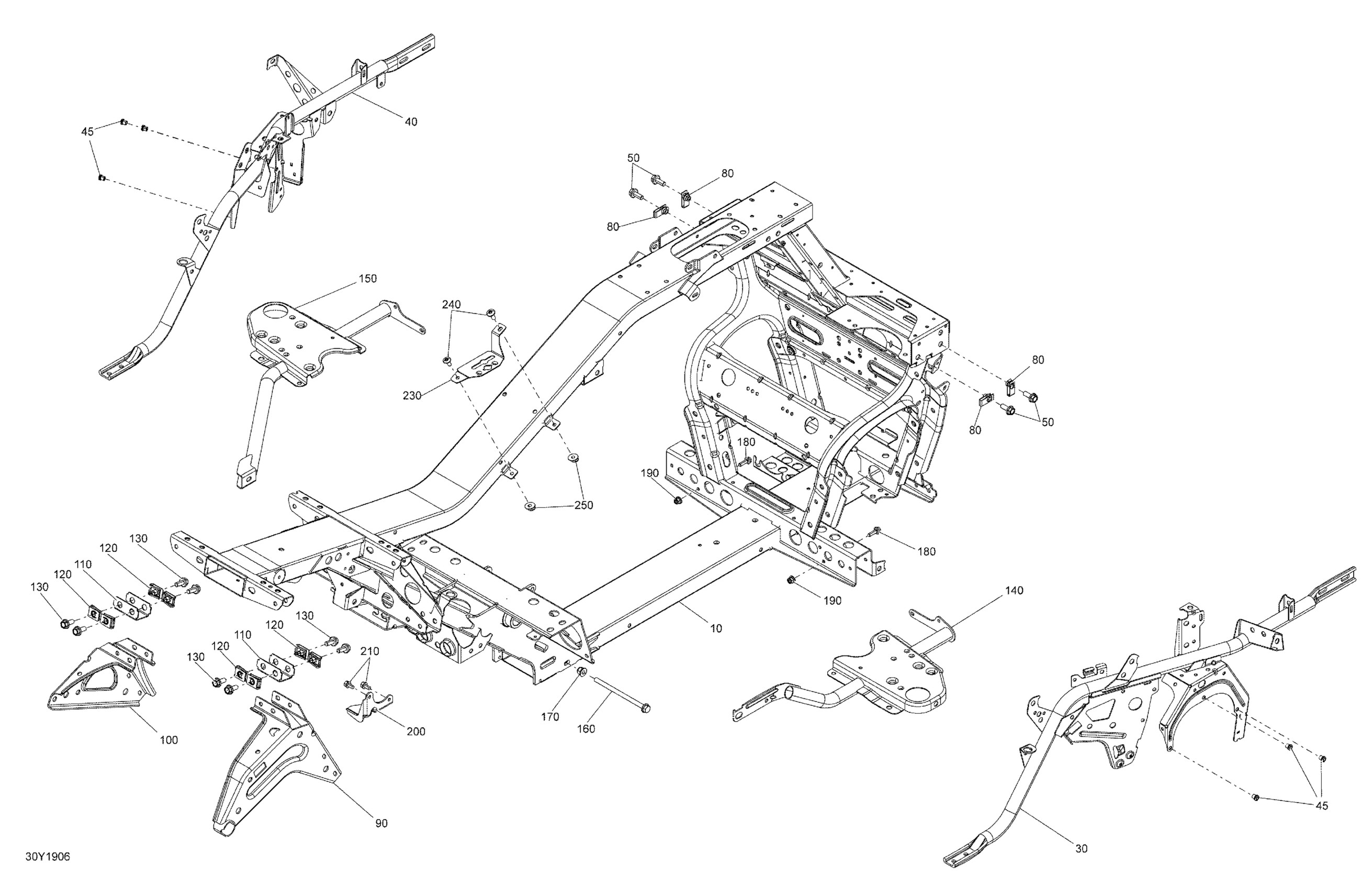

Can-Am 002 - RT STD SE6, 2019 09- Frame Diagram

#

Description
Price

10

Frame

705204866

$1,389.99

30

RH Painted Lateral Support Ass'y

705203016

$209.99

40

LH Painted Lateral Support Ass'y

705203017

$209.99

45

Insert M5 X 0.8

293450268

$2.09

50

Hex Screw Washer Head M8 X 20

207582054

$3.17

80

Panel Nut M8 X 1.25

250100118

$2.09

90

Rear Support RH

705203959

$99.99

100

Rear Support LH

705203969

$49.99

110

U-Bracket

705202484

$19.49

120

Panel Nut M8 X 1.25

250100069

$4.29

130

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

140

RH Painted Lower Lateral Support

705202625

$104.99

150

LH Painted Lower Lateral Support

705202626

$85.99

160

Hex. Flange Screw M8 X 130

230683034

$7.51

170

Hex. Flange Elastic Nut M8

233281414

$1.47

180

Hex. Flange Screw M6 X 20

207662044

$2.00

190

Hex. Flange Elastic Nut M6

233261466

$2.00

200

Stopper Swing Arm

705202587

$28.99

210

Hex. Flange Screw M6 X 12

210261250

$1.90

230

Latch Support

705205078

$15.49

240

Torx Head Screw M6 X 16

250000717

$2.11

250

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
