Description

Price

5000<5000g

LH Support

705009063

$119.99

5000c

Grommet Ass'y

705005055

$13.49

5000d

Panel Nut M5 X 0.8

250000958

$4.23

5000e

Hex. Screw M5 X 20

207152060

$1.47

5000f

Grommet

705003264

$4.09

5000g

Panel Nut M6 X 1.0

250100198

$2.11

5010<5010g

RH Support

705009064

$124.99

5010c

Grommet Ass'y

705005055

$13.49

5010d

Panel Nut M5 X 0.8

250000958

$4.23

5010e

Hex. Screw M5 X 20

207152060

$1.47

5010f

Grommet

705003264

$4.09

5010g

Panel Nut M6 X 1.0

250100198

$2.11

5020

Panel Nut M6 X 1.0

250100198

$2.11

5030

Torx Screw M6 X 20

250000722

$1.68

5040

Washer M6

250200029

$2.50

5050

LH Side Grille

705007307

$30.99

5060

Rubber Stopper

708000759

$4.19

5070

RH Side Grille

705004803

$30.99

5080

Tuflok Plastic Rivet

293150230

$1.47

5090

LH Radiatior Moulding

705004789

$104.99

5100

RH Radiatior Moulding

705004790

$104.99

5160

Hex. Flange Screw M6 X 25

207662544

$0.64

5170

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5180

Flat Washer 6 mm

234062410

$0.77

5190

Pressure Nut

250100163

$0.98

5210

Hex. Flange Screw M6 X 16

210261650

$1.67

5230

Torx Screw M6 X 20

250000722

$1.68

5240

Panel Nut M6 X 1.0

250100198

$2.11

5320

LH Lower Pannel

705006820

$78.99

5330

RH Lower Pannel

705007736

$83.99

5380

Hex. Flange Elastic Nut M8

233281434

$2.11

5390

Tuflok Plastic Rivet

293150230

$1.47

5410

Panel Nut M8

250100111

$4.29

5420

Panel Support

705007375

$39.99

5430

Panel Nut M8 X 1.25

250100069

$4.29

5450<5450d

LH Water Deflector Ass'y

705003759

$45.99

5450c

Hex.Flange Screw M5 X 20

207652044

$1.90

5450d

Panel Nut M5 X 0.8

250000958

$4.23

5460<5460d

RH Water Deflector Ass'y

705003760

$45.99

5460c

Hex.Flange Screw M5 X 20

207652044

$1.90

5460d

Panel Nut M5 X 0.8

250000958

$4.23

5470

Tuflok Plastic Rivet

293150230

$1.47

5480

Tuflok Plastic Rivet

293150230

$1.47

5490

Torx Truss Screw M6 X 12

250000767

$2.00

5590

Vegas White Pearl, LH Side Panel | Model-White

705008999

$249.99

5600

Bare, RH Side Panel | Model-White

705008992

$114.99

5630

Deep Black, LH Lat Pan Cap

705013557

$78.99

5640

Deep Black, RH Lat Pan Cap

705013556

$78.99

5650

Rubber Pad

293830143

$18.49

5660

Torx-Truss Pt K40 X 16

250000759

$2.11

5870

LH Deflector Pannel

705004610

$27.99

5880

RH Deflector Pannel

705004611

$20.99

5890

Tuflok Plastic Rivet

293150230

$1.47

5920

Tuflok Plastic Rivet

293150230

$1.47

5940

LH Skid Plate

705005438

$28.49

5950

RH Skid Plate

705005439

$28.49

7500<7500b

LH Tank Cover Ass'y

705004631

$109.99

7500b

Tie Rap Mount

293750044

$2.49

7505<7505b

RH Tank Cover Ass'y

705004632

$114.99

7505b

Tie Rap Mount

293750044

$2.49

7510

Tuflok Plastic Rivet

293150230

$1.47

7525

Neoprene Seal (1PAC=3M)

219704364

$27.49

7700

LH Lower Air Deflector

705004924

$43.99

7705

RH Lower Air Deflector

705004925

$43.99

7710

Torx Screw M6 X 20

250000712

$2.11

7800

White LH Upper Panel | Model-White

705006168

$299.99

7801

Upper Panel Foam

518329812

$20.99

7802

LH Upper Panel Foam

518329821

$20.99

7805

Bare, RH Up Side Pan | Model-White

705006212

$124.99

7806

RH Upper Panel Foam

518329820

$20.99

7810

Torx Screw M6 X 20

250000722

$1.68

7815

Stainless Steel Flat Washer

234062670

$2.11

7840

Knob

705003842

$5.82

7845

Angled Knob

705003746

$5.69

7850

Torx Screw, K50X16

250000459

$4.29

7855

Seal Tray 1000Mm Long

219704368

$13.99

8150

LH Upper Side Panel Grille

705003385

$30.99

8155

RH Upper Side Panel Grille

705003386

$30.99

8160

Edge Clip

517302785

$0.88

8250

White LH Lateral Panel | Model-White

705006178

$359.99

8255

White RH Upper Lateral Panel | Model-White

705006177

$359.99

8260

Oval Washer

705000321

$5.61

8265

Torx Screw M6 X 20

250000722

$1.68

8270

Stainless Steel Flat Washer

234062670

$2.11

8275

Panel Nut M6 X 1.0

250100198

$2.11

8280

Tuflok Plastic Rivet

293150230

$1.47

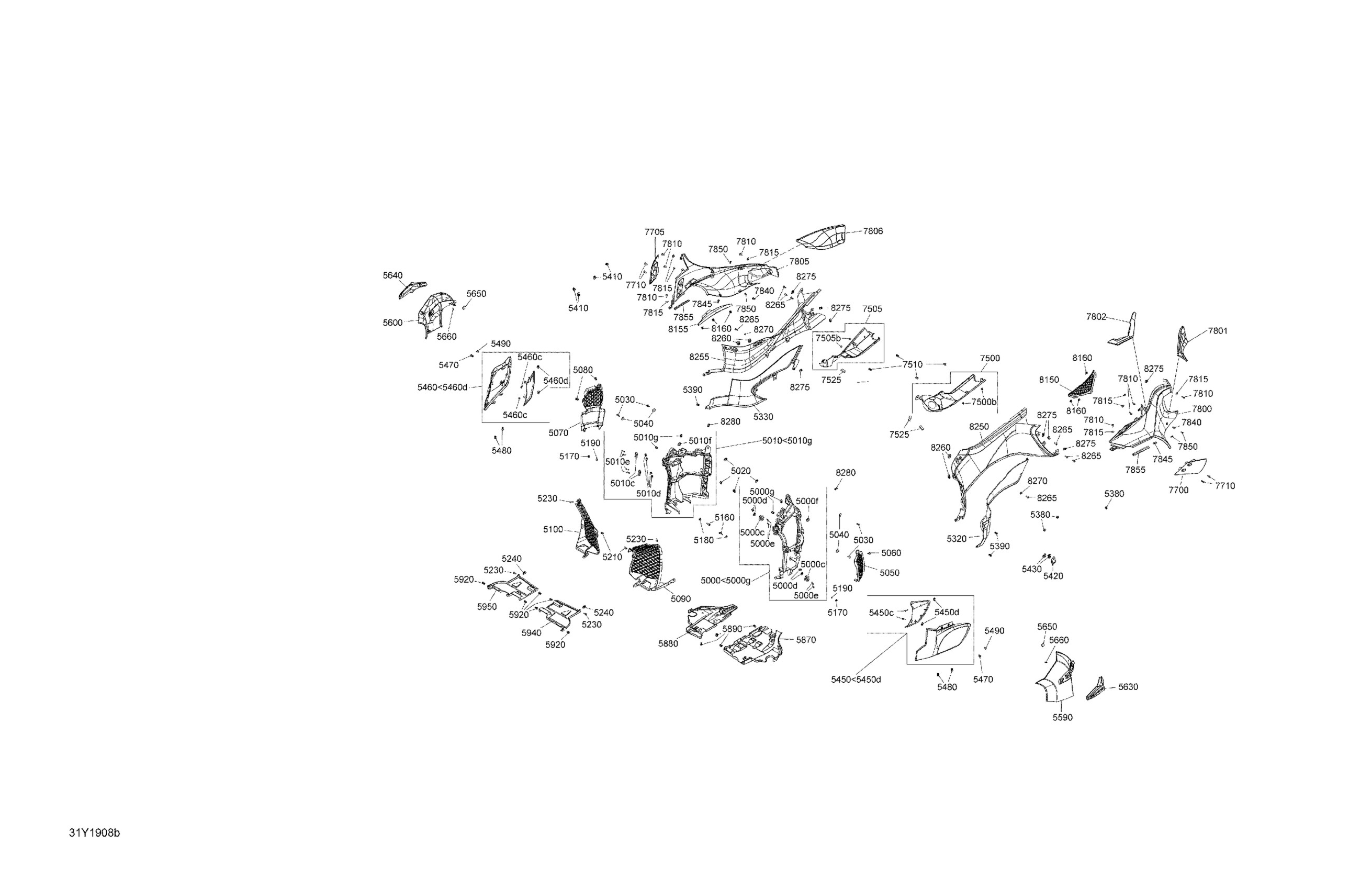

Can-Am 002 - RT STD SE6, 2019 09- Body And Accessories Side Panels Diagram

LH Support

Grommet Ass'y

Panel Nut M5 X 0.8

Hex. Screw M5 X 20

Grommet

Panel Nut M6 X 1.0

RH Support

Grommet Ass'y

Panel Nut M5 X 0.8

Hex. Screw M5 X 20

Grommet

Panel Nut M6 X 1.0

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Washer M6

LH Side Grille

Rubber Stopper

RH Side Grille

Tuflok Plastic Rivet

LH Radiatior Moulding

RH Radiatior Moulding

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer 6 mm

Pressure Nut

Hex. Flange Screw M6 X 16

Torx Screw M6 X 20

Panel Nut M6 X 1.0

LH Lower Pannel

RH Lower Pannel

Hex. Flange Elastic Nut M8

Tuflok Plastic Rivet

Panel Nut M8

Panel Support

Panel Nut M8 X 1.25

LH Water Deflector Ass'y

Hex.Flange Screw M5 X 20

Panel Nut M5 X 0.8

RH Water Deflector Ass'y

Hex.Flange Screw M5 X 20

Panel Nut M5 X 0.8

Tuflok Plastic Rivet

Tuflok Plastic Rivet

Torx Truss Screw M6 X 12

Vegas White Pearl, LH Side Panel | Model-White

Bare, RH Side Panel | Model-White

Deep Black, LH Lat Pan Cap

Deep Black, RH Lat Pan Cap

Rubber Pad

Torx-Truss Pt K40 X 16

LH Deflector Pannel

RH Deflector Pannel

Tuflok Plastic Rivet

Tuflok Plastic Rivet

LH Skid Plate

RH Skid Plate

LH Tank Cover Ass'y

Tie Rap Mount

RH Tank Cover Ass'y

Tie Rap Mount

Tuflok Plastic Rivet

Neoprene Seal (1PAC=3M)

LH Lower Air Deflector

RH Lower Air Deflector

Torx Screw M6 X 20

White LH Upper Panel | Model-White

Upper Panel Foam

LH Upper Panel Foam

Bare, RH Up Side Pan | Model-White

RH Upper Panel Foam

Torx Screw M6 X 20

Stainless Steel Flat Washer

Knob

Angled Knob

Torx Screw, K50X16

Seal Tray 1000Mm Long

LH Upper Side Panel Grille

RH Upper Side Panel Grille

Edge Clip
