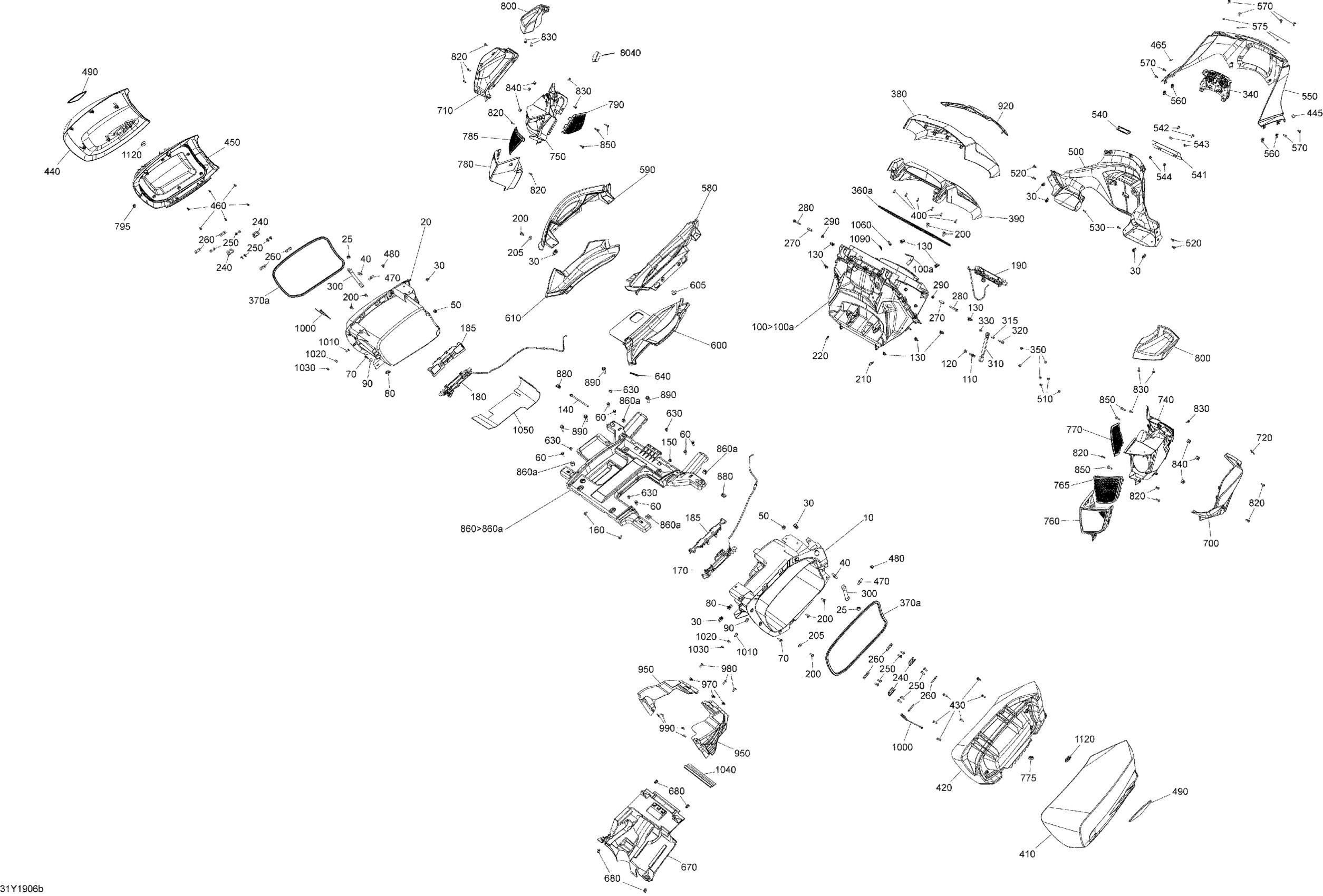

Can-Am 002 - RT STD SE6, 2019 09- Body And Accessories Cargo Diagram

#

Description
Price

10

Cargo Box Inner LH

708301016

$92.99

20

Cargo Box Inner RH

708301017

$92.99

30

Panel Nut M6 X 1.0

250100198

$2.11

40

Ball Head Stud

250300016

$14.81

50

Hex. Flange Elastic Nut M8

233281414

$1.47

60

Hex. Flange Screw M6 X 20

207662044

$2.00

70

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

80

Panel Nut M6 X 1.0

250100198

$2.11

90

Flat Washer

224061201

$1.37

100>100a

Storage Bin Ass'y Rear

708301798

$499.99

100a

Était/Was 414843500 Velcro #8MVA PSA 1"

219704406

$13.23

110

Ball Head Stud

250300039

$7.51

120

Hex. Flange Elastic Nut M8

233281414

$1.47

130

Panel Nut M6 X 1.0

250100198

$2.11

140

Hex. Flange Screw M6 X 130

230663084

$3.38

150

Hex. Flange Elastic Nut M6

233261494

$1.58

160

Hex. Flange Screw M6 X 12

207661244

$2.11

170

Latch Ass'y LH

708301640

$154.99

180

Latch Ass'y RH

708301641

$154.99

185

Latch Protector

708300514

$15.99

190

Center Latch

708301642

$154.99

200

Torx Truss M8 X 16

250000881

$2.11

205

Flat washer M6

250200164

$1.01

210

Tie-Rap 180 mm

414115200

$0.11

220

Tie-Rap 180 mm

414115200

$0.11

240

Hinge

708300006

$25.99

250

Torx Truss M8 X 16

250000881

$2.11

260

Back Plate Support

708300129

$11.49

270

Spacer

708300394

$14.99

280

Hex. Flange Screw M6 X 45

207664544

$1.46

290

Flange Elastic Nut M6

233261434

$4.44

300

Gaz Shock

708300011

$79.99

310

Gaz Shock

708300383

$79.99

315

Spacer

708300384

$14.49

320

Torx Truss Screw M6 X 30

250000843

$2.11

330

Domed Nut M6

232361493

$2.11

340

Main Control (WO lock cylinder)

708302620

$164.99

350

Torx Truss Screw M6 X 10

250000349

$7.51

360a

Seal, 1PC = 3M

293830188

$39.99

370a

Seal, 1PC = 3M

293830188

$39.99

380

Bare, RH Rear Trunk Cover | Model-White

708300723

$139.99

390

Inner Cover

708300678

$89.99

400

Torx Screw K50 X 16

250000720

$1.69

410

Cover Trunk LH, Vegas White B-313 | Model-White

708301111

$309.99

420

Cover Interior LH

708301023

$83.99

430

Torx Screw K50 X 16

250000720

$1.69

440

Cover Trunk RH, Vegas White B-313 | Model-White

708301112

$309.99

445

Lateral Console Foam

518327441

$6.99

450

Cover Interior RH

708301022

$83.99

460

Torx Screw K50 X 16

250000720

$1.69

465

Lateral Console Foam

518327441

$6.99

470

Ball Head Stud

250300016

$14.81

480

Hex. Flange Elastic Nut M8

233281414

$1.47

490

Amber, Lateral Reflector

705002423

$15.49

490

Red, Lateral Reflector

705003412

$15.49

500

Fender Rear

708302277

$204.99

510

Torx Truss Screw M6 X 10

250000349

$7.51

520

Torx Truss M8 X 16

250000881

$2.11

530

Torx Screw K50 X 16

250000720

$1.69

540

License Plate Light Support

708300177

$14.49

550

Rear Pannel, Vegas White B-313 | Model-White

708301564

$329.99

560

Panel Nut M6 X 1.0

250100198

$2.11

570

Torx Truss M8 X 16

250000881

$2.11

575

Plastic Washer

705003207

$0.80

580

LH Passenger Handle

708300022

$105.99

580b

Male Housing, 2 Circuits

710000667

$8.32

590

RH Passenger Handle

708300024

$105.99

590b

Male Housing, 2 Circuits

710000667

$8.32

600

LH Handle Pannel

708300209

$84.99

605

Cap

708300405

$6.39

610

RH Handle Pannel

708300027

$84.99

630

Torx Screw M6 X 12

250000804

$1.68

640

Crontrol Cap

708300049

$11.49

670

Under Tail Rear Wheel Cover

708300028

$49.99

680

Tuflok Plastic Rivet

293150230

$1.47

700

Arm Cover LH, Vegas White B-313 | Model-White

708300708

$244.99

710

Arm Cover RH, Vegas White B-313 | Model-White

708300709

$244.99

720

Antenna Cap LH, Vegas White B-313 | Model-White

708300716

$15.99

740

Sound Box LH

708301555

$80.49

750

Sound Box RH

708301556

$80.49

760

LH Grille Sup.

708302609

$26.99

765

LH Rear Grille | Not Shown

708302567

$8.49

770

Central LH Rear Grille

708302610

$8.49

775

Grommet | Not Shown

293720115

$2.49

780

RH Grille Sup. | Not Shown

708302611

$26.99

785

RH Rear Grille | Not Shown

708302568

$8.49

790

Central RH Rear Grille | Not Shown

708302612

$8.49

795

Grommet | Not Shown

293720115

$2.49

800

Deep Black, LH Arm Rest | Model-With Black Seat

708000614

$89.99

810

Deep Black, RH Arm Rest | Model-With Black Seat

708000615

$89.99

820

Torx Screw K50 X 16

250000720

$1.69

830

Torx Screw K50 X 16

250000720

$1.69

840

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

850

Torx-Truss M/S M6 X 25

250000880

$2.11

860>860a

Rear Support Ass'y | Includes 160 to 162

708300781

$279.99

860a

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

880

Panel Nut M6 X 1.0

250100198

$2.11

890

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

900

Trim Saddlebag LH , DARK

708302823

$134.99

910

Trim Saddlebag RH , DARK

708302824

$134.99

920

Trim Trunk Rear, Dark | Package DARK

708302825

$134.99

950

LH Inner Fender

708300327

$56.99

960

RH Inner Fender

708300328

$56.99

970

Panel Nut M6 X 1.0

250100198

$2.11

980

Torx Truss Screw M6 X 20

250000350

$5.29

990

Torx Screw K50 X 16

250000720

$1.69

1000

Retainer Cable

708300385

$38.99

1010

Torx Truss M8 X 16

250000881

$2.11

1020

Flat Washer, Stainless/Neoprene

211200055

$0.73

1030

Hex. Nut M6

232061414

$0.53

1040

Seal

708300397

$38.99

1050

Heat Shield

705004173

$47.99

1060

Tie Wrap 142 mm

293750002

$1.25

1090

Tie-rap Mount (square - self-adhsive)

293750040

$3.99

8040

Radio Antenna Base RH, 11.7mm Dia.

708302047

$22.49
