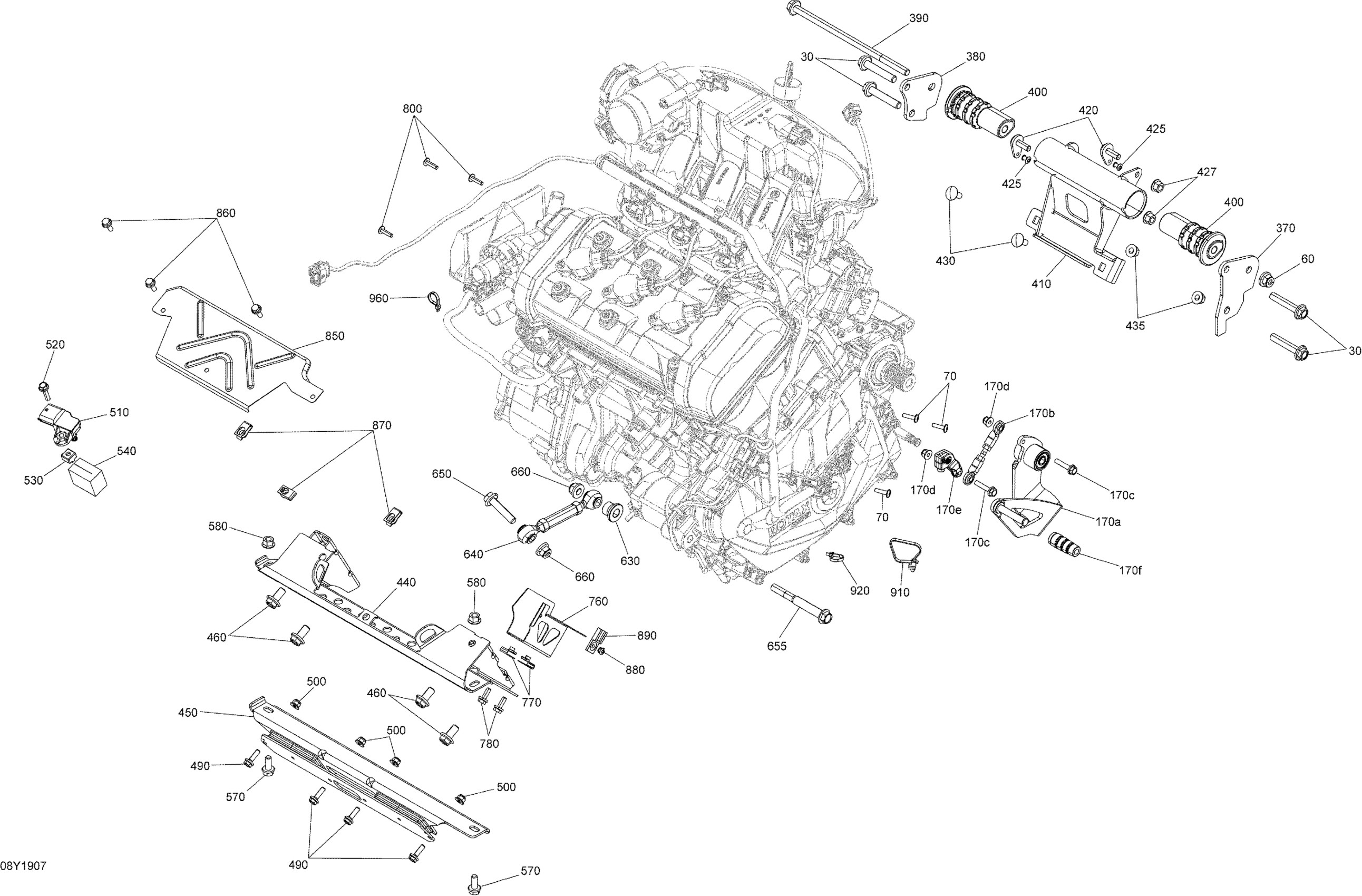

Can-Am 002 - RT STD SE6, 2019 01- Engine Diagram

Hex. Flange Screw M10 X 55, Scotch Grip

207505544

$3.91

Hex. Flange Elastic Nut M10

233201436

$2.11

Torx Screw M5 X 20

250000724

$1.69

Carbon Black Lever

707001421

$121.99

Double Ball Joint

707001103

$90.99

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Shifter Arm

707000926

$42.99

End Clutch Pedal

707000456

$8.89

LH Engine Support

707001293

$22.49

RH Engine Support

707001294

$22.49

Hex. Flange Screw M10 X 220

250000507

$7.59

Rubber Mount

707000973

$89.99

Frame Extension

707000877

$94.99

Attach

707001292

$19.49

Pop Rivet 3/16"

390402300

$0.75

Hex. Flange Nut M8

233081416

$1.15

Carriage Bolt M8 X 20

207782046

$1.90

Hex. Flange Nut M8

233081416

$1.15

Front Engine Support

707001561

$104.99

Rubber Mount

707000876

$134.99

Hex Flange Screw M10 X 20

207502044

$4.44

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6

233261466

$2.00

Pressure And Temperature Sensor

707000995

$88.99

Hex. Flange Screw M6 X 25

207662554

$1.48

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

Foam Filter

707000586

$5.50

Hex. Flange Screw M8 X 20

207682046

$1.90

Hex. Flange Nut M8

233081416

$1.15

Spacer

707001736

$27.49

Connecting Rod

707001918

$63.99

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

Hex. Flange Screw M10 X 100

250000702

$11.64

Hex. Flange Elastic Nut M10

233201436

$2.11

Connector Support

707001353

$15.27

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Torx Screw M5 X 20

250000724

$1.69

Upper Heat Deflector

707601057

$24.49

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Panel Nut M6 X 1.0

250100198

$2.11

Pop Rivet 3/16"

390402200

$0.35

Clip

270000141

$11.49

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

Tie Wrap 368 mm

293750008

$1.04

Tie Wrap 368 mm

293750008

$1.04
