Description

Price

10

Brake Light Switch Ass'y

710003412

$46.49

15

Pressure And Temperature Sensor

707000995

$88.99

20

Brake Pressure Switch Ass'y

710001379

$43.49

25

Hex. Flange Screw M6 X 25

207662554

$1.48

30

Pop Rivet

293150150

$2.40

35

Panel Nut M6 X 1.0

250100198

$2.11

40

Tie-Rap 173 mm

293750009

$1.04

45

Foam Filter

707000586

$5.50

50

Clip Tie-Rap

710002899

$8.49

60

Tie Wrap 142 mm

293750002

$1.25

1150

Dess Module

710004916

$179.99

1152

Tie-Rap 173 mm

293750009

$1.04

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Flat Washer 6 mm

234062410

$0.77

1160

Rubber Bumper

293830091

$8.29

1300>1300d

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$194.99

1300a

Hex. Screw Forming M4 X 30

250000955

$0.90

1300b

Push Nut | Not shown

211100002

$2.19

1300c

Flat Washer, Emhart

213200016

$0.72

1300d

Flat Washer 5 mm, Stainless

234052400

$2.85

2000

Starter Cable Ass'y

710006399

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561414

$0.55

2170

Lock Washer Helical M6

234161601

$1.15

2171

Hex. Nut M6

232061600

$1.15

2250

Pos Cable

710005026

$84.99

2260

Hex. Nut M6

232061600

$1.15

2261

Lock Washer Helical M6

234161601

$1.15

2270

Rivet 6,4 mm

293150173

$4.29

2280

Rivet 6,4 mm

293150173

$4.29

4042

Lock

710001222

$2.09

4044

Pop Rivet 3/16"

390402400

$0.35

4045

Clip

270000141

$11.49

4050

Tie Wrap 368 mm

293750008

$1.04

4052

Tuflok Plastic Rivet

293150230

$1.47

4065

Support Cable

293750083

$2.29

4066

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4067

Tie-Rap 173 mm

293750009

$1.04

4068

Tie Rap | Not Shown

710004947

$8.68

4069

Clip Tie-Rap

293750063

$8.75

4070

Rubber Pad

709000401

$9.79

4074

Support

710004613

$8.29

4075

Connector Plug

710004901

$13.22

4076

Connector Plug

710004901

$13.22

4077

Wire Support

710004669

$6.79

4080

Tie-Rap 180 mm

414115200

$0.11

4090

Harness Holder

710004794

$3.39

4091

Tie-Rap 180 mm

414115200

$0.11

4095

Tuflok Plastic Rivet

293150230

$1.47

4110

Tie Wrap 368 mm

293750008

$1.04

4124

Tie-Rap 173 mm

293750009

$1.04

4125

Tie-Rap 173 mm

293750009

$1.04

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4220

Tie Rap

710004424

$6.29

4221

Tie-Rap 180 mm

414115200

$0.11

4222

Tie-Rap 180 mm

414115200

$0.11

4225

Tuflock Phillips Plastic Screw

414745900

$1.69

4230

Tie Rap

710004424

$6.29

4235

Tuflock Phillips Plastic Screw

414745900

$1.69

4350

Wire Guide

709401619

$15.49

4351

Torx Screw M5 X 14

250000742

$1.47

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

4370

RH/LH Fuse Box Decal

710003077

$0.64

4380

Cable Support

710004299

$4.19

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Fuel Tank Cable

710006436

$19.49

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5410

Lock Washer Serrated M6

250200041

$1.15

5415

Serrated Lock Washer 8 mm

234481608

$1.15

5420

Washer

250200111

$2.11

8400

LH Multi-Function Switch

710008091

$509.99

8500

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

8501

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

8502

Braided Sleeve

710004231

$38.99

8503

Braided Sleeve

710004231

$38.99

8505

Tie Wrap 94 mm | 4X4

293750001

$1.03

8506

Tie Rap

293750074

$1.29

8520

Wire Guide

709401804

$3.09

8521

Torx Cutting Screw, M4 X 10

250000453

$3.89

8530

Heating Handle Grip

709400625

$195.99

8531

Torx Cutting Screw, M4 X 10

250000453

$3.89

8535

Tie Wrap 94 mm | 4X4

293750001

$1.03

8540

Heated Throttle Grip

709402720

$289.99

8541

Socket Screw, M4 X 25

205042594

$2.11

8542

Flat Washer 4 mm

234040600

$0.55

8545

Tie Wrap 94 mm | 4X4

293750001

$1.03

8550

Bushing

709401801

$2.53

8560

Spring

709401937

$19.99

8570

Housing Support

515175283

$9.19

9000

Tie-Rap 180 mm

414115200

$0.11

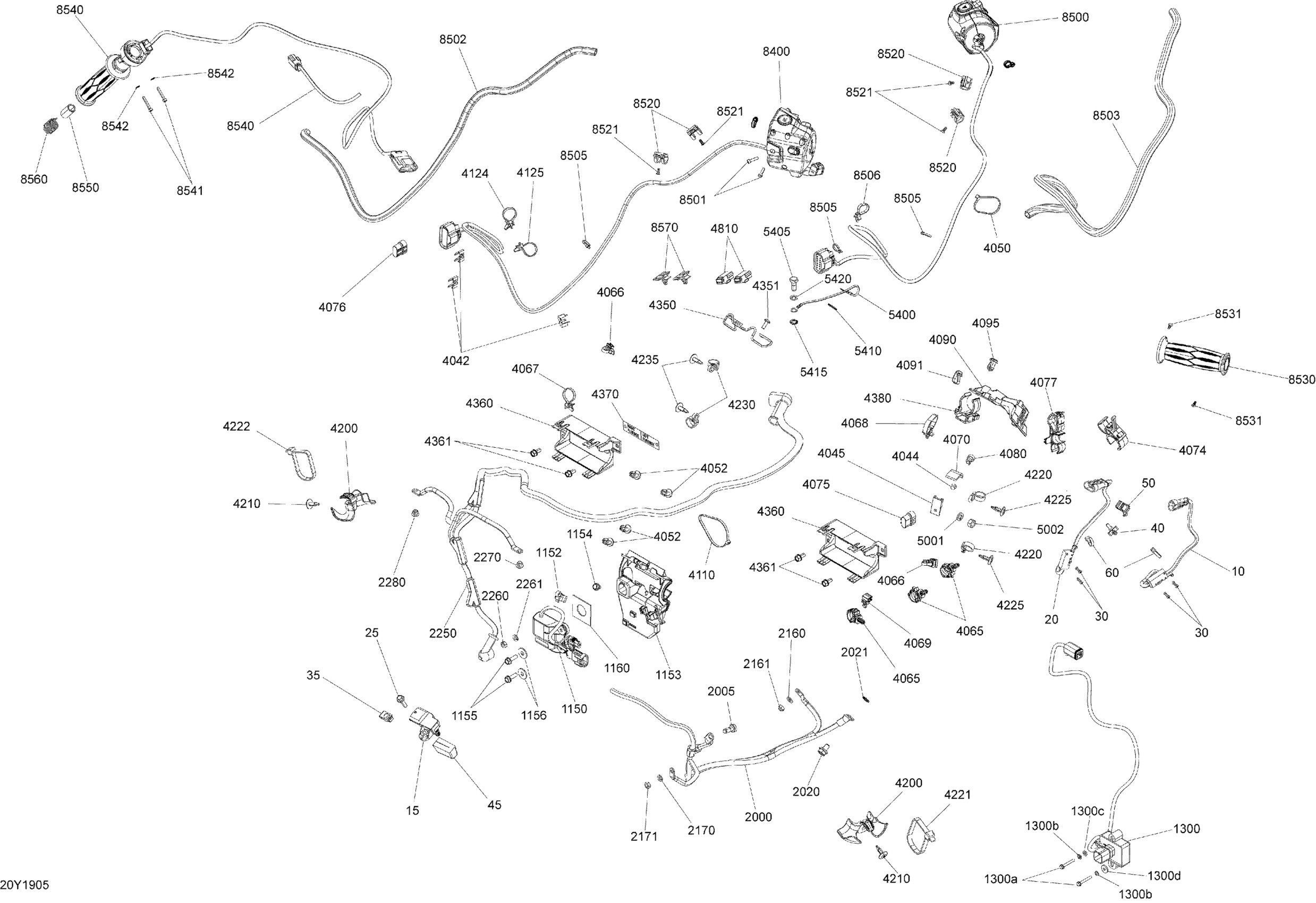

Can-Am 005 - F3 LTD SE6, 2019 10- Electrical System Accessories Diagram

Brake Light Switch Ass'y

Pressure And Temperature Sensor

Brake Pressure Switch Ass'y

Hex. Flange Screw M6 X 25

Pop Rivet

Panel Nut M6 X 1.0

Tie-Rap 173 mm

Foam Filter

Clip Tie-Rap

Tie Wrap 142 mm

Dess Module

Tie-Rap 173 mm

Wire Support

Hex. Forming Screw M6 X 10

Hexagonal Head Screw

Flat Washer 6 mm

Rubber Bumper

CCK Module Ass'y | Includes 1300 to 1300d

Hex. Screw Forming M4 X 30

Push Nut | Not shown

Flat Washer, Emhart

Flat Washer 5 mm, Stainless

Starter Cable Ass'y

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 12, Scotch Grip

Serrated Lock Washer 8 mm

Stainless Flat Washer M6

Elastic Stop Nut M6

Lock Washer Helical M6

Hex. Nut M6

Pos Cable

Hex. Nut M6

Lock Washer Helical M6

Rivet 6,4 mm

Rivet 6,4 mm

Lock

Pop Rivet 3/16"

Clip

Tie Wrap 368 mm

Tuflok Plastic Rivet

Support Cable

2-Pieces Fixing Tie Rap for Edges | Not Shown

Tie-Rap 173 mm

Tie Rap | Not Shown

Clip Tie-Rap

Rubber Pad

Support

Connector Plug

Connector Plug

Wire Support

Tie-Rap 180 mm

Harness Holder

Tie-Rap 180 mm

Tuflok Plastic Rivet

Tie Wrap 368 mm

Tie-Rap 173 mm

Tie-Rap 173 mm

Harness Holder

Tuflock Phillips Plastic Screw

Tie Rap

Tie-Rap 180 mm

Tie-Rap 180 mm

Tuflock Phillips Plastic Screw

Tie Rap

Tuflock Phillips Plastic Screw

Wire Guide

Torx Screw M5 X 14

Fuse Holder Support

Hex. Flange Screw M6 X 12

RH/LH Fuse Box Decal

Cable Support

Lock Washer 8 mm, Stainless

Hex. Nut M8

Fuel Tank Cable

Hex. Screw M8 X 20, Scotch Grip

Lock Washer Serrated M6

Serrated Lock Washer 8 mm

Washer

LH Multi-Function Switch
