Description

Price

100

LH Front Skid Plate

705007785

$28.49

110

Tuflok Plastic Rivet

293150230

$1.47

120

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

130

Panel Nut M6 X 1.0

250100208

$1.46

200

RH Front Skid Plate

705007786

$28.49

210

Tuflok Plastic Rivet

293150230

$1.47

220

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

230

Panel Nut M6 X 1.0

250100208

$1.46

300a

Carbon Black, LH Footrest Support | Includes 30 to 30b

705008955

$119.99

300b

LH Outer Protective Film

705014178

$9.21

300c

LH inner Protective Film

705014174

$6.50

300d

Tube Support | Includes 150 to 150a

705008950

$22.99

300e

Washer

506152582

$4.55

300f

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

300g

Carbon Black, LH Slider Outside | Includes 160 to 160b

705009466

$64.99

300i

Pivot Pin | Includes 220 to 220

705013628

$17.82

300j

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$39.99

300k

Socket Head Screw M8 X 25

250000830

$1.90

300l

Back Plate

705008553

$24.99

300m

Socket Head Screw M8 X 25

250000830

$1.90

300n

LH Foot Board | Includes 10 to 10b

705009454

$109.99

300o

LH Footrest Pad

705015846

$66.99

300p

Allen Plastite Screw #12

250000099

$2.19

300r

Thin Socket Screw, Scotch Grip, M10

250000997

$6.77

300s

Stainless Flat Washer, 10 mm

250200105

$2.11

300t

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

300u

Hex. Flange Elastic Nut M6

233261466

$2.00

300v

Bright Chrome, LH Rear Footrest Support | Includes 80 to 80a

705008276

$949.99

300v

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$389.99

300w

Spacer Bushing

705008166

$5.59

300x

Pivot Pin | Includes 220 to 220

705013628

$17.82

300y

Rubber Bumper

293830005

$8.09

300z

Pivot Cap | Includes 540 to 540b

705010203

$27.99

300aa

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

300ab

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$109.99

300ac

Foot Board Pad, Passenger

705009234

$53.99

300ad

Allen Plastite Screw #12

250000099

$2.19

300ae

Rubber Stopper

708000759

$4.19

300af

Socket Head Screw M8 X 25

250000830

$1.90

300ag

LH Fairing Support

705008961

$16.49

300ah

Black, Flat Washer 6 mm

234061670

$1.25

300ai

Hex. Flange Screw M6 X 12

210261250

$1.90

300aj

Panel Nut M6 X 1.0

250100198

$2.11

310

Spacer

705008219

$13.49

320

Hex. Flange Screw M6 X 60

250000778

$4.44

330

Hex. Flange Elastic Nut M6

233261466

$2.00

340

Washer M6

250200029

$2.50

350

Pivot Cap

705010202

$22.99

360

Socket Head Screw

205505560

$6.77

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

400a

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$119.99

400b

RH Outer Protective Film

705014179

$10.43

400c

RH Inner Protective Film

705014175

$6.50

400d

Tube Support | Includes 150 to 150a

705008950

$22.99

400e

Washer

506152582

$4.55

400f

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

400g

Carbon Black, RH Slider Outside | Includes 170 to 170b

705009463

$62.99

400i

Pivot Pin | Includes 220 to 220

705013628

$17.82

400j

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$39.99

400k

Socket Head Screw M8 X 25

250000830

$1.90

400l

Back Plate

705008553

$24.99

400m

Socket Head Screw M8 X 25

250000830

$1.90

400n

RH Foot Board | Includes 20 to 20b

705009455

$109.99

400o

RH Footrest Pad

705015847

$66.99

400p

Allen Plastite Screw #12

250000099

$2.19

400q

Thin Socket Screw, Scotch Grip, M10

250000997

$6.77

400r

Stainless Flat Washer, 10 mm

250200105

$2.11

400s

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

400v

Hex. Flange Elastic Nut M6

233261466

$2.00

400x

Bright Chrome, RH Rear Footrest Support | Includes 70 to 70a

705008277

$939.99

400x

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$409.99

400y

Spacer Bushing

705008166

$5.59

400z

Pivot Pin | Includes 220 to 220

705013628

$17.82

400aa

Rubber Bumper

293830005

$8.09

400ab

Pivot Cap | Includes 540 to 540b

705010203

$27.99

400ac

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

400ad

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$109.99

400ae

Foot Board Pad, Passenger

705009234

$53.99

400af

Allen Plastite Screw #12

250000099

$2.19

400ag

Rubber Stopper

708000759

$4.19

400ah

Socket Head Screw M8 X 25

250000830

$1.90

400ai

RH Fairing Support

705008962

$16.49

400aj

Black, Flat Washer 6 mm

234061670

$1.25

400ak

Hex. Flange Screw M6 X 12

210261250

$1.90

400al

Panel Nut M6 X 1.0

250100198

$2.11

400am

Brake Pedal | Includes 800 to 800a3

705601419

$104.99

400an

Rubber Pad

705004933

$20.99

400ao

Hex. Flange Screw M6 X 12

210261250

$1.90

400ap

Bearing

705600458

$19.99

400aq

Washer

503192496

$0.77

400ar

Washer

503183800

$3.28

400as

Elastic Locking Nut M10

233601466

$2.11

400at

Hex. Cap Screw M10 X 60

207006056

$7.51

400au

Master Cylinder Rocker | Includes 900 to 900d

705601308

$49.99

400av

Bearing

705600458

$19.99

400aw

Bushing

705600541

$15.36

400ax

O-Ring

293300191

$1.46

400ay

Washer

503183800

$3.28

400az

Locking Tab | Includes 940 to 940b

705601229

$25.99

400ba

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

400bb

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

400bc

Brake Master Cylinder Stopper

705601375

$12.10

400bd

Screw M4 X 16

250000725

$3.49

400be

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$20.99

400bf

Flange Screw M6 X 26

250000714

$3.91

400bg

Hex. Flange Elastic Nut M6

233261466

$2.00

400bh

Quick-Attach Bracket

705601350

$13.16

400bi

Push Nut

250100178

$0.63

400bj

Light Switch Bracket | Includes 1100 to 1100b

705601342

$12.16

400bk

Torx Head Screw M6 X 16

250000717

$2.11

400bl

Switch Deflector

705601343

$13.99

400bm

Torx Head Screw M6 X 16

250000717

$2.11

400bn

ROD END - Call your local BRP dealership

705601506

$14.99

400bo

Piston Rod

705600468

$23.49

400bp

Hex. Nut M8

232081414

$0.72

400bq

Hexagonal Head Cap Screw M8 X 35

207283544

$2.85

400br

Hex. Elastic Stop Nut M8

232581414

$0.56

410

Spacer

705008219

$13.49

420

Hex. Flange Screw M6 X 60

250000778

$4.44

430

Hex. Flange Elastic Nut M6

233261466

$2.00

440

Washer M6

250200029

$2.50

450

Pivot Cap

705010202

$22.99

460

Socket Head Screw

205505560

$6.77

470

Hex Screw Washer Head M8 X 20

207582054

$3.17

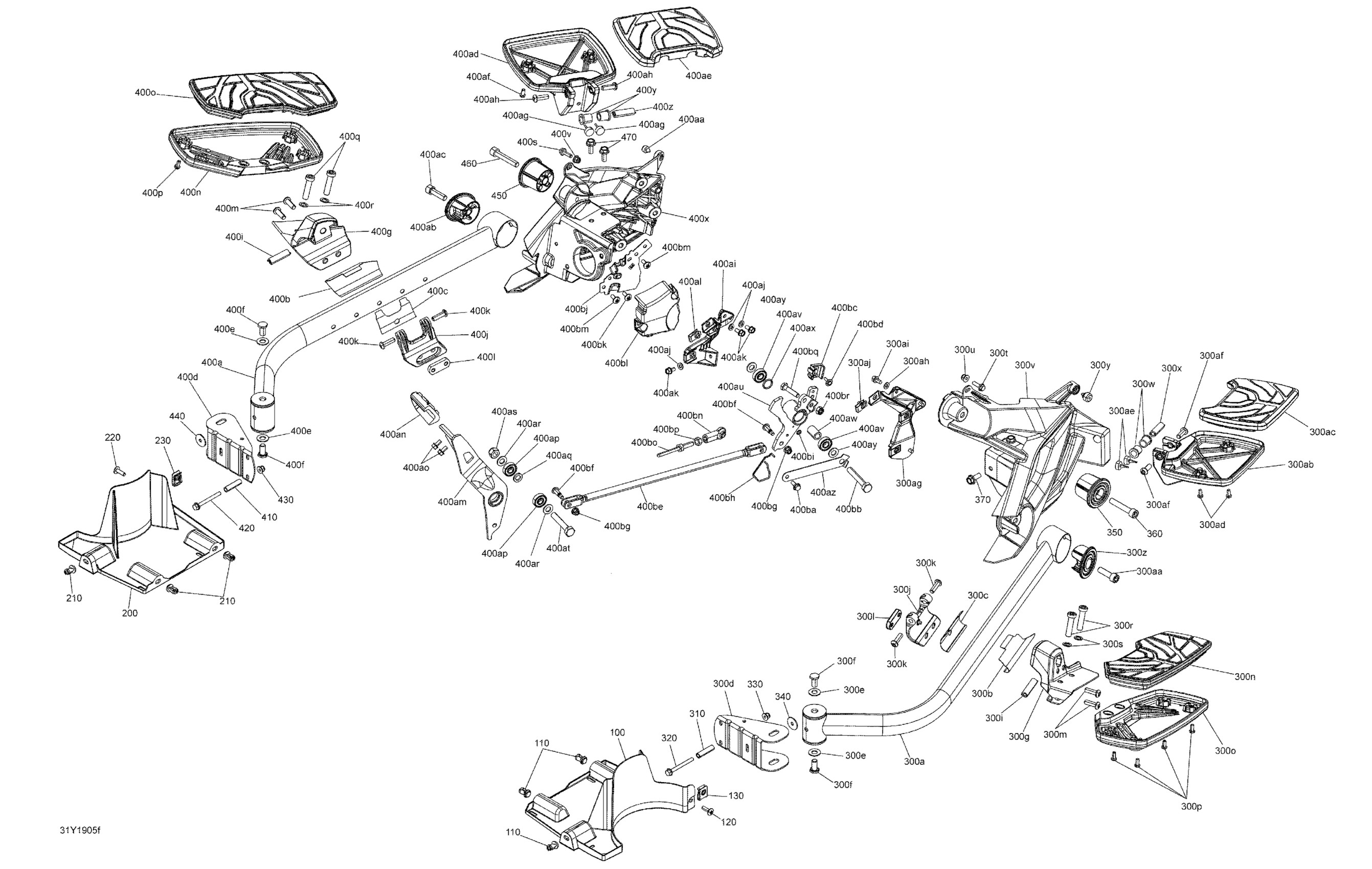

Can-Am 005 - F3 LTD SE6, 2019 09- Body And Accessories Footrest Diagram
