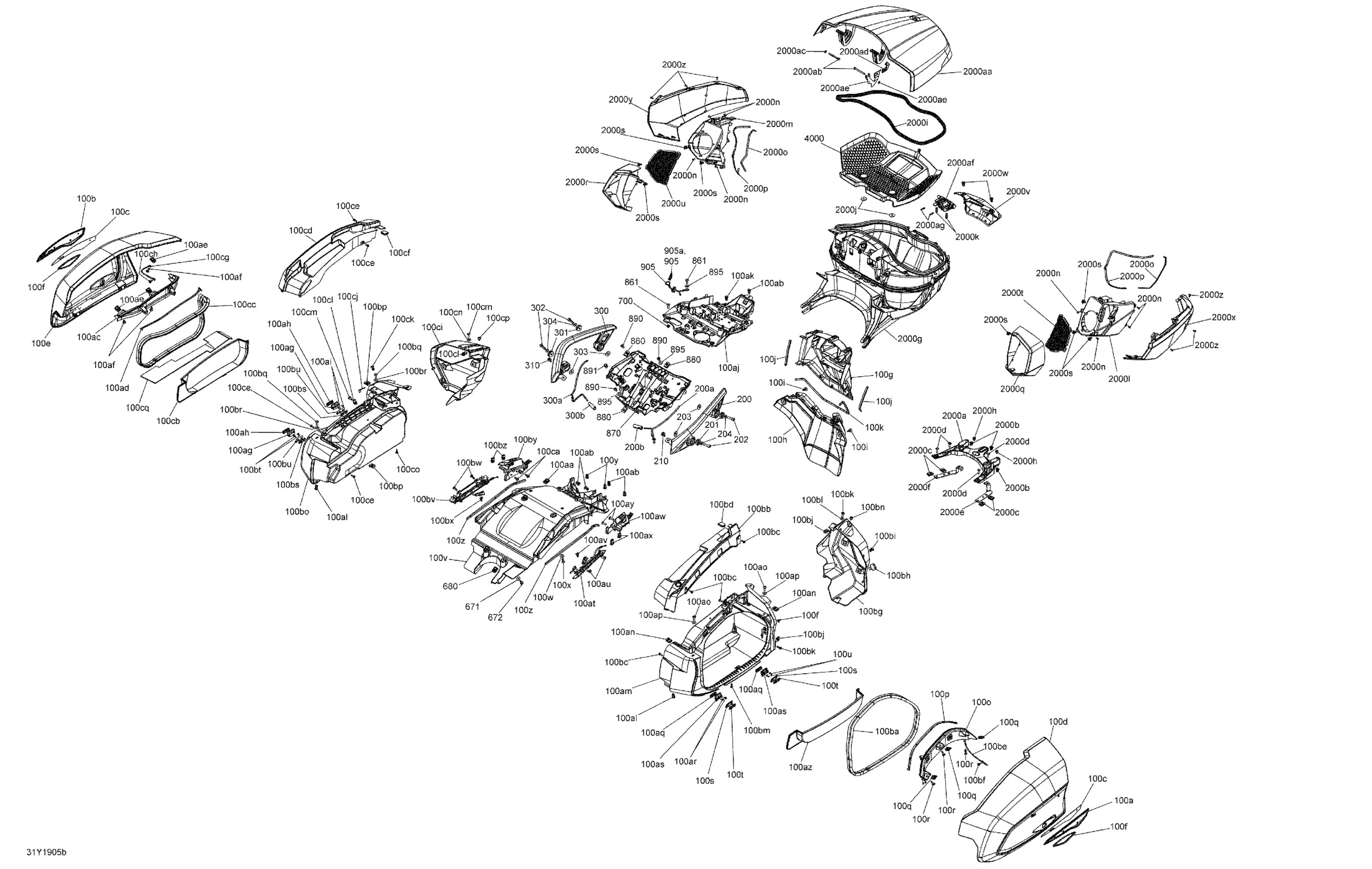

Can-Am 005 - F3 LTD SE6, 2019 09- Body And Accessories Cargo Diagram

#

Description
Price

100a

LH Trim Box

708301587

$129.99

100b

RH Trim Box

708301588

$129.99

100c

Trim Box Double Face Tape

704905469

$3.69

100d

Steel Black, LH Trunck Cover

708301268

$459.99

100d

Vegas White, LH Trunk Cover

708301917

$459.99

100d

LH Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302450

$459.99

100d

LH Trunk Cover, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302826

$459.99

100e

Steel Black, RH Trunk Cover

708301269

$459.99

100e

Vegas White, RH Trunk Cover

708301922

$459.99

100e

RH Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302451

$449.99

100e

RH Trunk Cover, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302827

$459.99

100f

Amber, Lateral Reflector

705002423

$15.49

100f

Red, Lateral Reflector

705003412

$15.49

100g

Rear Fender

708301584

$204.99

100h

Rear Fender Extention

708301747

$204.99

100i

Tuflock Phillips Plastic Screw

414745900

$1.69

100j

Neoprene Seal, 150 MM

293250385

$3.39

100k

Seal 1000Mm Long

219704373

$8.26

100o

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

100p

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100q

Panel Nut M6 X 1.0

250100208

$1.46

100r

Torx Screw M6 X 20

250000722

$1.68

100s

Female Hinge

708302044

$11.49

100t

Retaining Plate

708302046

$13.49

100u

Torx Truss Screw K40 X 12

250000577

$2.11

100v

Under Tail

708301609

$46.49

100w

Stainless Steel Flat Washer

234062670

$2.11

100x

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

100y

Tuflok Plastic Rivet

293150230

$1.47

100z

Neoprene Seal, 150 MM

293250385

$3.39

100aa

Panel Nut M6 X 1.0

250100208

$1.46

100ab

Tuflok Plastic Rivet

293150230

$1.47

100ac

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

100ad

Gasket, Neoprene 2000Mm Long

219704476

$15.36

100ae

Panel Nut M6 X 1.0

250100208

$1.46

100af

Torx Screw M6 X 20

250000722

$1.68

100ag

Female Hinge

708302044

$11.49

100ah

Retaining Plate

708302046

$13.49

100ai

Torx Truss Screw K40 X 12

250000577

$2.11

100aj

Support

708302143

$23.99

100ak

Tuflok Plastic Rivet

293150230

$1.47

100al

Tuflok Plastic Rivet

293150230

$1.47

100am

LH Cargo

708302404

$94.99

100an

Panel Nut M6 X 1.0

250100208

$1.46

100ao

Torx Screw M6 X 20

250000722

$1.68

100ap

Flat washer M6

250200164

$1.01

100aq

Retaining Plate

708302046

$13.49

100ar

Torx Truss Screw K40 X 12

250000577

$2.11

100as

Male Hinge

708302045

$11.49

100at

LH Latch Assembly

708301794

$154.99

100au

Torx Screw M6 X 20

250000722

$1.68

100av

Connector Holder

710002033

$3.39

100aw

LH Control

708301222

$43.99

100ax

Panel Nut M6 X 1.0

250100198

$2.11

100ay

Torx Screw M6 X 20

250000722

$1.68

100az

Cargo Separator LH | Package T and LTD

708301719

$14.99

100ba

Molded Weather Strip

293250420

$30.99

100bb

LH Cargo Fairing

708302401

$78.99

100bc

Torx Screw K50 X 16

250000720

$1.69

100bd

Antena Cap

708301805

$3.89

100be

Retainer Cable

708300385

$38.99

100bf

Screw M4 X 16

250000725

$3.49

100bg

LH Light Support

708302283

$49.99

100bh

Brace

708302284

$12.99

100bi

Tuflok Plastic Rivet

293150230

$1.47

100bj

Panel Nut M6 X 1.0

250100198

$2.11

100bk

Torx Screw M6 X 20

250000722

$1.68

100bl

Flat washer M6

250200164

$1.01

100bm

Torx Screw K50 X 16

250000720

$1.69

100bn

Rubber Bumper

293830005

$8.09

100bo

RH Cargo

708302405

$94.99

100bp

Panel Nut M6 X 1.0

250100208

$1.46

100bq

Torx Screw M6 X 20

250000722

$1.68

100br

Flat washer M6

250200164

$1.01

100bs

Retaining Plate

708302046

$13.49

100bt

Torx Truss Screw K40 X 12

250000577

$2.11

100bu

Male Hinge

708302045

$11.49

100bv

RH Latch Assembly

708301795

$154.99

100bw

Torx Screw M6 X 20

250000722

$1.68

100bx

Connector Holder

710002033

$3.39

100by

RH Control

708301697

$43.99

100bz

Panel Nut M6 X 1.0

250100198

$2.11

100ca

Torx Screw M6 X 20

250000722

$1.68

100cb

Cargo Separator RH | Package T and LTD

708301862

$14.99

100cc

Molded Weather Strip

293250420

$30.99

100cd

RH Cargo Fairing

708302402

$78.99

100ce

Torx Screw K50 X 16

250000720

$1.69

100cf

Antena Cap

708301805

$3.89

100cg

Retainer Cable

708300385

$38.99

100ch

Screw M4 X 16

250000725

$3.49

100ci

RH Light Support

708302285

$49.99

100cj

Brace

708302284

$12.99

100ck

Tuflok Plastic Rivet

293150230

$1.47

100cl

Panel Nut M6 X 1.0

250100198

$2.11

100cm

Torx Screw M6 X 20

250000722

$1.68

100cn

Flat washer M6

250200164

$1.01

100co

Torx Screw K50 X 16

250000720

$1.69

100cp

Rubber Bumper

293830005

$8.09

100cq

Heat Shield

705009908

$47.99

200>200b

LH Rear Heated Holding Handle

708304250

$174.99

200a

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

200b

Male Housing, 2 Circuits

710000667

$8.32

201

Bushing

708302461

$19.49

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

203

Flat Washer 8 mm

234082410

$1.47

204

Stainless Steel Flat Washer 8 mm

234081670

$0.67

210

Tuflock Phillips Plastic Screw

414745900

$1.69

300>300b

RH Heated Passenger Handle | Package LTD

708301657

$142.99

300a

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

300b

Male Housing, 2 Circuits

710000667

$8.32

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

861

Torx Screw M6 X 20

250000722

$1.68

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Truss M8 X 16

250000881

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

895

Flat washer M6

250200164

$1.01

905>905a

Lanyard | Included 905 to 905d

708002532

$22.99

905a

Cord Decal

704905127

Unavailable

2000a

Central Pillar | Package LTD

708301989

$10.49

2000b

Edge Clip

517302785

$0.88

2000c

Panel Nut M6 X 1.0

250100208

$1.46

2000d

Torx Screw M6 X 20

250000722

$1.68

2000e

LH Central Pillar Stiffener | Package LTD

708302556

$25.99

2000f

RH Central Pillar Stiffener | Package LTD

708302557

$25.99

2000g

Storage Box | Package LTD

708302228

$489.99

2000h

Rubber Bumper

293830005

$8.09

2000i

Trim

293250579

$15.99

2000j

Washer | Not Shown

503193995

$4.54

2000k

Stud

518333307

$13.49

2000l

LH Speaker Enclosure

708302113

$19.99

2000m

RH Speaker Enclosure

708302114

$19.99

2000n

Torx Truss Screw K40 X 12

250000577

$2.11

2000o

Seal 1000Mm Long

219704373

$8.26

2000p

Seal 1000Mm Long

219704373

$8.26

2000q

LH Rear Speaker Trim

708302692

$45.49

2000r

RH Rear Speaker Trim

708302693

$45.49

2000s

Edge Clip

517302785

$0.88

2000t

LH Speaker Grille

708302106

$4.44

2000u

RH Speaker Grille

708302107

$4.44

2000v

Light Support

708302152

$12.49

2000w

Tuflok Plastic Rivet

293150230

$1.47

2000x

Vegas White Pearl, LH Trunk Panel | Package LTD White

708302229

$219.99

2000x

Steel Black, LH Trunk Panel | Model Steel
Black

708302230

$214.99

2000x

LH Trunk Panel, Oxford Blue | Model Oxford
Blue

708302534

$219.99

2000x

LH Trunk Panel, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302830

$219.99

2000y

Vegas White Pearl, RH Trunk Panel | Package LTD White

708302232

$219.99

2000y

Steel Black, RH Trunk Panel | Model Steel
Black

708302233

$219.99

2000y

RH Trunk Panel, Oxford Blue | Model Oxford
Blue

708302535

$219.99

2000y

RH Trunk Panel, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302831

$219.99

2000z

Torx Truss Screw K40 X 12

250000577

$2.11

2000aa

Kit Cover Trunk R B-266 | Package LTD Red

219800479

$299.99

2000aa

Vegas White Pearl, Trunk Cover | Package LTD White

708302201

$309.99

2000aa

Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302540

$309.99

2000aa

Kit Cover Trunk R B-424 | Model B-424 Pheonix Orange Metallic

219800483

$399.99

2000ab

Hex. Screw M6 X 65

207066544

$0.46

2000ac

Pressure Nut

250100163

$0.98

2000ad

Stopper | Package LTD

708302446

$6.29

2000ae

Unlocking Lever | Not Shown

708302444

$18.99

2000af

Trunk Control Ass'y

708302100

$24.49

2000ag

Spring

708302198

$2.09

4000

Inner Liner | Package LTD

708302203

$30.99
