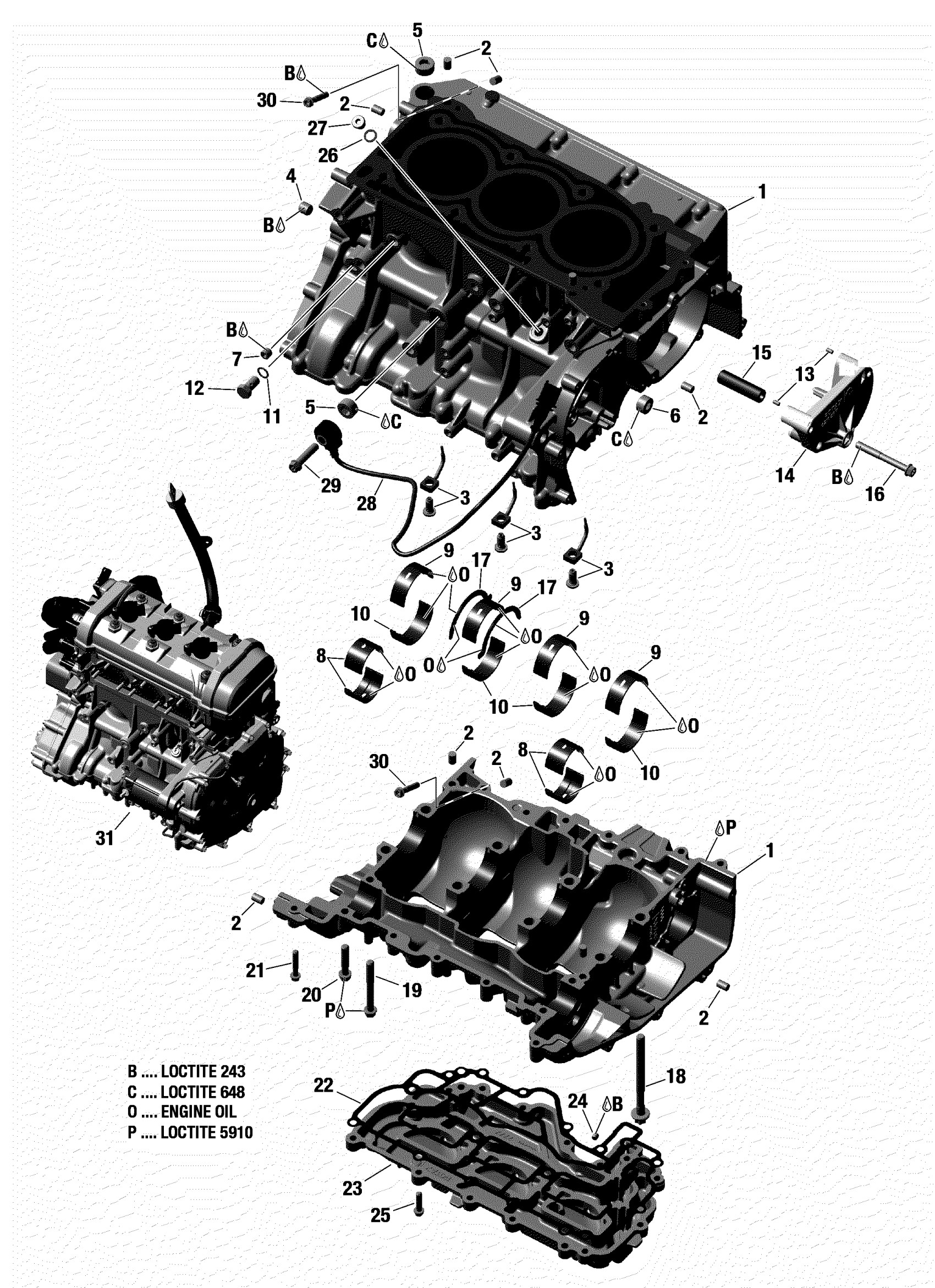

Can-Am 002 - F3 S SM6, 2019 01- Crankcase Diagram

#

Description
Price

1>16

Crankcase | Includes 1 to 13

420686583

$2,672.99

2

Center Pin 8 X 12

420632010

$4.01

3

Oil Spraying Jet

420656973

$26.49

4

Plug Screw M12 X 1.5

420840657

$8.57

5

Plug Screw M20 X 1.5

420641317

$14.22

6

Plug Screw M18 X 1.5

420441050

$13.22

7

Plug Screw M10 X 1

420641323

$14.28

8

Plain Bearing

420933858

$27.49

9

Plain Bearing

420233848

$28.49

10

Plain Bearing

420233846

$28.49

11

Oil Seal

420230150

$2.85

12

Bleeder Screw M10 X 1

420441630

$15.35

13

Needle Pin

420929075

$2.11

14

Bearing Bracket

420210868

$51.99

15

Intermediate Gear Shaft

420249011

$50.99

16

Torx Flange Screw M8 X 65

420440403

$2.19

17

Half-Ring

420933475

$11.63

18

Torx Flange Screw M9 X 113

420940945

$13.70

19

Torx Flange Screw M8 x 70

420441085

$4.65

20

Torx Flange Screw M8 x 40

420440485

$5.40

21

Torx Flange Screw M6 X 35

420440274

$1.01

22

Gasket

420250610

$15.89

23

Oil Pan

420611742

$169.49

24

Plug Screw M8 x 1

420941614

$6.98

25

Torx Flange Screw M6 X 25

420440234

$3.06

26

Oil Seal

420230150

$2.85

27

Plug Screw M10 X 1

420641733

$12.72

28

Noise Sensor

420664031

$63.99

29

Torx Flange Screw M8 X 35

420641188

$7.41

30

FLANGED TORX SCREW M6 X 35 - Call your local BRP dealership

420440270

Unavailable

31

Engine

420014032

$12,720.00
