Description

Price

100

LH Front Skid Plate

705007785

$28.49

110

Tuflok Plastic Rivet

293150230

$1.47

120

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

130

Panel Nut M6 X 1.0

250100208

$1.46

200

RH Front Skid Plate

705007786

$28.49

210

Tuflok Plastic Rivet

293150230

$1.47

220

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

230

Panel Nut M6 X 1.0

250100208

$1.46

300a

Deep Black, LH Footrest Support | Includes 30 to 30b

705008256

$119.99

300b

LH Frame Protector Outside

705009449

$9.21

300c

LH inner Protective Film

705014174

$6.50

300d

Tube Support | Includes 150 to 150a

705008950

$22.99

300e

Washer

506152582

$4.55

300f

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

300g

LH Slider Outside | Includes 160 to 160b

705007798

$84.99

300h

Spacer Bushing

705008166

$5.59

300i

Pivot Pin | Includes 220 to 220

705013628

$17.82

300j

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$39.99

300k

Socket Head Screw M8 X 25

250000830

$1.90

300l

Back Plate

705008553

$24.99

300m

Socket Head Screw M8 X 25

250000830

$1.90

300n

Carbon Black, LH Footpeg | Includes 10 to 10b

705008663

$50.99

300o

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

300p

Allen Plastite Screw #12

250000099

$2.19

300q

Rubber Stopper

708000759

$4.19

300r

Socket Head Screw M8 X 25

250000830

$1.90

300t

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

300u

Hex. Flange Elastic Nut M6

233261466

$2.00

300v

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$389.99

300w

Stainless Steel Flat Washer

234062670

$2.11

300y

Rubber Bumper

293830005

$8.09

300z

Pivot Cap | Includes 540 to 540b

705010203

$27.99

300aa

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

300ab

Carbon Black, LH Footpeg

708302066

$6.29

300ac

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

300ad

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

300ae

LH Fairing Support

705008961

$16.49

300af

Black, Flat Washer 6 mm

234061670

$1.25

300ag

Hex. Flange Screw M6 X 12

210261250

$1.90

300ah

Panel Nut M6 X 1.0

250100198

$2.11

310

Spacer

705008219

$13.49

320

Hex. Flange Screw M6 X 60

250000778

$4.44

330

Hex. Flange Elastic Nut M6

233261466

$2.00

340

Washer M6

250200029

$2.50

350

Pivot Cap

705010202

$22.99

360

Socket Head Screw

205505560

$6.77

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

400a

Deep Black, RH Footrest Support | Includes 40 to 40b

705008258

$119.99

400b

RH Outer Protective Film

705014177

$6.50

400c

RH Inner Protective Film

705014175

$6.50

400d

Tube Support | Includes 150 to 150a

705008950

$22.99

400e

Washer

506152582

$4.55

400f

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

400g

RH Slider Outside | Includes 170 to 170b

705008158

$84.99

400h

Spacer Bushing

705008166

$5.59

400i

Pivot Pin | Includes 220 to 220

705013628

$17.82

400j

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$39.99

400k

Socket Head Screw M8 X 25

250000830

$1.90

400l

Back Plate

705008553

$24.99

400m

Socket Head Screw M8 X 25

250000830

$1.90

400n

Carbon Black, RH Footpeg | Includes 20 to 20b

705008160

$50.99

400o

Footpeg Rubber Pad | Includes 50 to 50a

705011281

$37.99

400p

Allen Plastite Screw #12

250000099

$2.19

400q

Rubber Stopper

708000759

$4.19

400r

Socket Head Screw M8 X 25

250000830

$1.90

400s

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

400t

Hex. Flange Elastic Nut M6

233261466

$2.00

400u

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$409.99

400v

Stainless Steel Flat Washer

234062670

$2.11

400w

Rubber Bumper

293830005

$8.09

400x

Pivot Cap | Includes 540 to 540b

705010203

$27.99

400y

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

400z

Black, RH Footrest Trim

708302067

$5.49

400aa

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

400ab

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

400ac

RH Fairing Support

705008962

$16.49

400ad

Black, Flat Washer 6 mm

234061670

$1.25

400ae

Hex. Flange Screw M6 X 12

210261250

$1.90

400af

Panel Nut M6 X 1.0

250100198

$2.11

400ag

Brake Pedal | Includes 800 to 800a3

705601419

$104.99

400ah

Rubber Pad

705004933

$20.99

400ai

Hex. Flange Screw M6 X 12

210261250

$1.90

400aj

Bearing

705600458

$19.99

400ak

Washer

503192496

$0.77

400al

Washer

503183800

$3.28

400am

Elastic Locking Nut M10

233601466

$2.11

400an

Hex. Cap Screw M10 X 60

207006056

$7.51

400ao

Master Cylinder Rocker | Includes 900 to 900d

705601308

$49.99

400ap

Bearing

705600458

$19.99

400aq

Bushing

705600541

$15.36

400ar

O-Ring

293300191

$1.46

400as

Washer

503183800

$3.28

400at

Locking Tab | Includes 940 to 940b

705601229

$25.99

400au

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

400av

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

400aw

Brake Master Cylinder Stopper

705601375

$12.10

400ax

Screw M4 X 16

250000725

$3.49

400ay

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$20.99

400az

Flange Screw M6 X 26

250000714

$3.91

400ba

Hex. Flange Elastic Nut M6

233261466

$2.00

400bb

Quick-Attach Bracket

705601350

$13.16

400bc

Push Nut

250100178

$0.63

400bd

Light Switch Bracket | Includes 1100 to 1100b

705601342

$12.16

400be

Torx Head Screw M6 X 16

250000717

$2.11

400bf

Switch Deflector

705601343

$13.99

400bg

Torx Head Screw M6 X 16

250000717

$2.11

400bh

ROD END - Call your local BRP dealership

705601506

$14.99

400bi

Piston Rod

705600468

$23.49

400bj

Hex. Nut M8

232081414

$0.72

400bk

Hexagonal Head Cap Screw M8 X 35

207283544

$2.85

400bl

Hex. Elastic Stop Nut M8

232581414

$0.56

410

Spacer

705008219

$13.49

420

Hex. Flange Screw M6 X 60

250000778

$4.44

430

Hex. Flange Elastic Nut M6

233261466

$2.00

440

Washer M6

250200029

$2.50

450

Pivot Cap

705010202

$22.99

460

Socket Head Screw

205505560

$6.77

470

Hex Screw Washer Head M8 X 20

207582054

$3.17

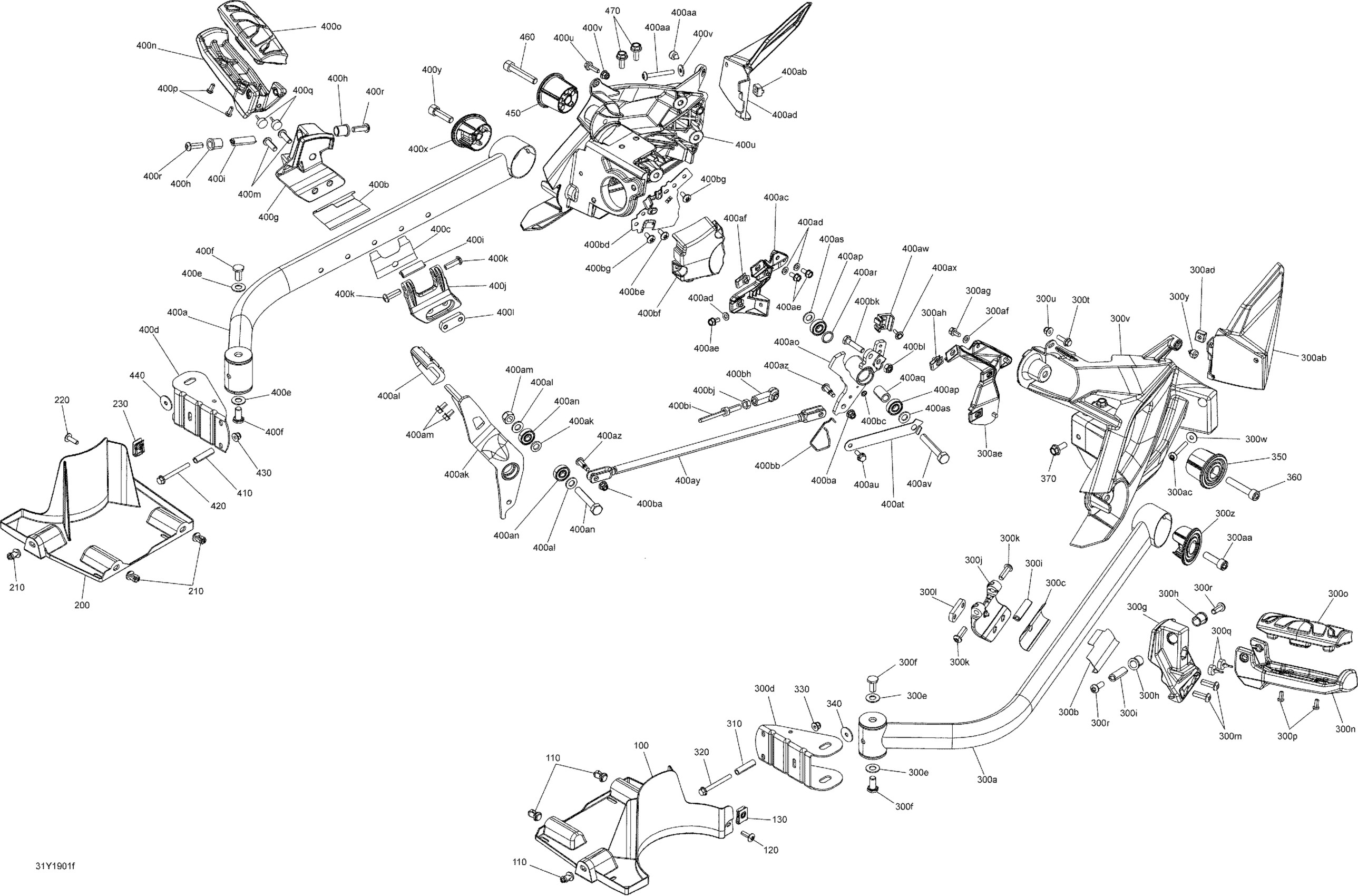

Can-Am 001 - F3 STD SE6, 2019 09- Body And Accessories Footrest Diagram

LH Front Skid Plate

Tuflok Plastic Rivet

Torx Screw M6 X 20, Scotch Grip

Panel Nut M6 X 1.0

RH Front Skid Plate

Tuflok Plastic Rivet

Torx Screw M6 X 20, Scotch Grip

Panel Nut M6 X 1.0

Deep Black, LH Footrest Support | Includes 30 to 30b

LH Frame Protector Outside

LH inner Protective Film

Tube Support | Includes 150 to 150a

Washer

Hex. Cap Screw Full Thread M10 X 20

LH Slider Outside | Includes 160 to 160b

Spacer Bushing

Pivot Pin | Includes 220 to 220

Black, LH Slider Clamp | Includes 305 to 305b

Socket Head Screw M8 X 25

Back Plate

Socket Head Screw M8 X 25

Carbon Black, LH Footpeg | Includes 10 to 10b

Footpeg Rubber Pad | Includes 50 to 50a

Allen Plastite Screw #12

Rubber Stopper

Socket Head Screw M8 X 25

Hex. Flange Screw S.Grip M6 X 20

Hex. Flange Elastic Nut M6

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

Stainless Steel Flat Washer

Rubber Bumper

Pivot Cap | Includes 540 to 540b

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

Carbon Black, LH Footpeg

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

M6 Nut Housing Ass'y | Includes 290 to 290b

LH Fairing Support

Black, Flat Washer 6 mm

Hex. Flange Screw M6 X 12

Panel Nut M6 X 1.0

Spacer

Hex. Flange Screw M6 X 60

Hex. Flange Elastic Nut M6

Washer M6

Pivot Cap

Socket Head Screw

Hex Screw Washer Head M8 X 20

Deep Black, RH Footrest Support | Includes 40 to 40b

RH Outer Protective Film

RH Inner Protective Film

Tube Support | Includes 150 to 150a

Washer

Hex. Cap Screw Full Thread M10 X 20

RH Slider Outside | Includes 170 to 170b

Spacer Bushing

Pivot Pin | Includes 220 to 220

Black, RH Slider Clamp | Includes 307 to 307b

Socket Head Screw M8 X 25

Back Plate

Socket Head Screw M8 X 25

Carbon Black, RH Footpeg | Includes 20 to 20b

Footpeg Rubber Pad | Includes 50 to 50a

Allen Plastite Screw #12

Rubber Stopper

Socket Head Screw M8 X 25

Hex. Flange Screw S.Grip M6 X 20

Hex. Flange Elastic Nut M6

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

Stainless Steel Flat Washer

Rubber Bumper

Pivot Cap | Includes 540 to 540b

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

Black, RH Footrest Trim

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

M6 Nut Housing Ass'y | Includes 290 to 290b

RH Fairing Support

Black, Flat Washer 6 mm

Hex. Flange Screw M6 X 12

Panel Nut M6 X 1.0
