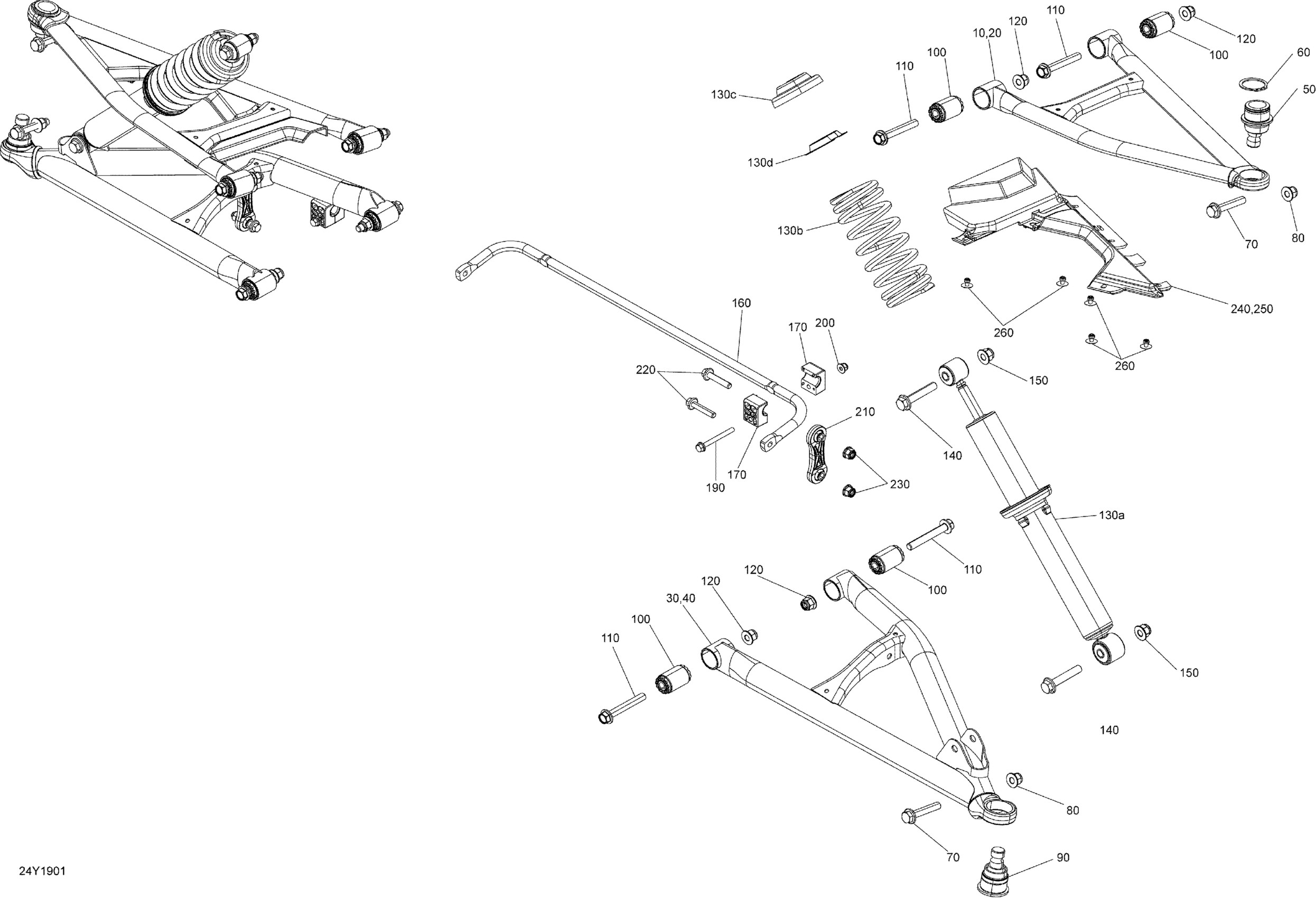

Can-Am 001 - F3 STD SE6, 2019 07- Suspension, Front Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706204682

$158.99

20

Deep Black, RH Upper Suspension Arm

706204686

$158.99

30

Deep Black, LH Lower Arm

706202165

$158.99

40

Deep Black, RH Lower Arm

706202166

$158.99

50

Ball Joint

706202507

$61.99

60

Circlip

293370035

$2.64

70

Hex. Flange Screw M10 X 55

207605554

$7.62

80

Flange Elastic Nut M10

233201466

$3.17

90

Ball Joint

706202508

$42.49

100

Suspension Arm Bushing

706201519

$13.76

110

Hex. Flange Screw M10 X 70

207607056

$4.29

120

Flange Elastic Nut M10

233201466

$3.17

130>130d

Shock Assembly Front | Includes 130 TO 130d

706202798

Unavailable

130a

Shock

706002653

$169.49

130b

Spring

706002654

$64.49

130c

Spring Stopper

706200881

$12.99

130d

Cap

706200785

$4.69

140

Hex. Flange Screw M10 X 55

207605554

$7.62

150

Flange Elastic Nut M10

233201466

$3.17

160

Sway Bar

706202799

$90.99

170

Bushing

706201429

$10.01

190

Hex. Flange Screw M6 X 60

250000778

$4.44

200

Hex. Flange Elastic Nut M6

233261466

$2.00

210

Tie Rod

706200671

$20.99

220

Hex. Flange Screw M8 X 40

207684054

$2.11

230

Elastic Flange Nut M8

233281464

$1.01

240

LH Cable Cap

706203371

$13.99

250

RH Cable Cap

706203372

$13.99

260

Pop Rivet 3/16"

293150103

$0.55
