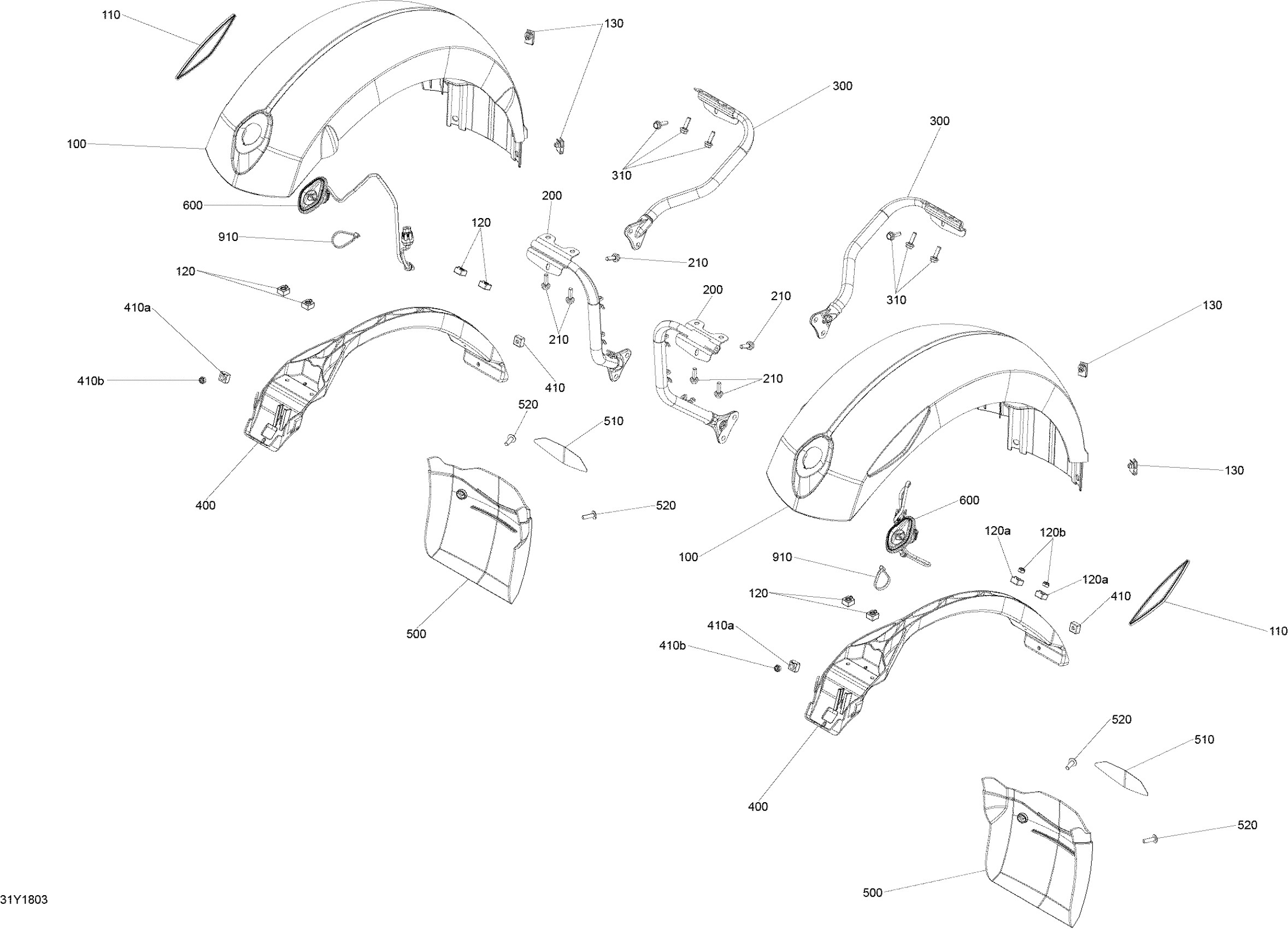

Can-Am RT STD SM6 & SE6, 2018 09- Body And Accessories - Fender Diagram

Description

Price

100

Pearl White LH Front Fender | Model-RS STD Vegas White Pearl

705003904

$204.99

100

Pearl White RH Front Fender | Model-RS STD Vegas White Pearl

705003903

$309.99

110

Amber, Lateral Reflector

705002423

$15.49

120

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

120a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

120b

Hex. Elastic Stop Nut M6

232561600

$1.15

130

Panel Nut M6 X 1.0

250100198

$2.11

200

LH Painted Fender Front Support | Model-RS STD

705010102

$86.99

200

RH Painted Fender Front Support | Model-RS STD

705010103

$86.99

210

Hex. Flange Screw M6 X 20

207662054

$1.01

300

LH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership

705010100

$76.99

300

RH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership

705010101

Unavailable

310

Hex. Flange Screw M6 X 20

207662054

$1.01

400

Central Front Fender Support | Model-RS STD

705002389

$62.99

410

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

410a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

410b

Hex. Elastic Stop Nut M6

232561600

$1.15

500

LH Mudguard | Model-RS STD

705001767

$51.99

500

RH Mudguard | Model-RS STD

705001768

$51.99

510

Reflective Stripe

704901160

$10.99

520

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

600

Position Light | STD Model

710003295

$62.49

910

Tie Wrap 142 mm

293750002

$1.25
