Description

Price

10a

Fuel Tank

709001447

$599.99

10b

Fuel Pump Module

709000370

$372.49

10c

Rollover Valve

709000413

$55.99

10d

Gaz Cap

709000683

$15.82

10e

Seal Kit

219800248

$38.99

10f

Seal Kit

219800248

$38.99

20

Grommet

709000582

$4.69

30

Carpet

709000130

$14.49

40

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

40a

Elbow Fitting 90°

293710105

$14.22

40b

Fuel Line 7.9 mm, Meter

709000264

$15.99

40c

Oetiker Clamp

293650125

$3.29

40d

Fuel Line 7.9 mm, Meter

709000265

$12.99

40e

Fuel Filter

513034047

$21.99

40f

Fuel Line 7.9 mm, Meter

709000264

$15.99

40g

Female Quick Fitting Ass'y

709000684

$15.49

40h

Y Fitting

709000453

$10.49

40j

Hose, 275MM

709000776

$15.99

40k

Quick Connect Pipe Fitting

293710192

$12.49

40m

Oetiker Clamp

293650046

$2.89

45

Tubing 16 Mm 1000Mm Long

219704408

$7.49

47

Protector Tube, 16 mm

513033231

$2.21

49

Was 409901800 Tubing (13 mm)

219704400

$14.49

60a

Bleed Valve

709000443

$73.99

60b

Hose, 880MM

709000656

$31.99

60c

Vapor Canister

709000090

$90.99

60d

Hose, 275MM

709000657

$12.99

60e

Formed Hose

709000523

$26.99

60f

Hose, 1275MM

709000658

$30.49

60g

Crimp Clamp, 15.3-706R

293650047

$3.29

60h

Oetiker Gear Clamp

293650025

$3.09

60j

Oetiker Clamp

293650140

$2.69

70

Oetiker Gear Clamp

293650025

$3.09

80

Hex. Flange Screw M6 X 25

207662544

$0.64

100

Bushing

709000716

$7.73

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

140

Universal Spring Clamp

513033029

$5.39

180

Fuel Filter Support

709000452

$19.49

190

Hex. Flange Screw M6 X 20

207662044

$2.00

195

Panel Nut M6 X 1.0

250100198

$2.11

200

Open Clamp

513033047

$5.19

210

Torx Truss Screw M6 X 12

250000767

$2.00

215

Domed Nut M6

232361493

$2.11

220

Reflective Sheet

709000157

$20.99

230

Reflective Sheet

709000340

$28.99

320

Open Clamp

709000057

$5.39

330

Hex. Flange Screw M6 X 12

210261250

$1.90

550

Hose Support

709000814

$6.66

560

Tuflok Plastic Rivet

293150230

$1.47

700

Air Filter

709000524

$45.99

710

Spring Clamp

513033865

$4.49

720

Filter Support

709000526

$13.24

730

Tuflock Phillips Plastic Screw

414745900

$1.69

740

Tuflock Phillips Plastic Screw

414745900

$1.69

920

Tie-Rap 180 mm

414115200

$0.11

930

Tie-Rap 180 mm

414115200

$0.11

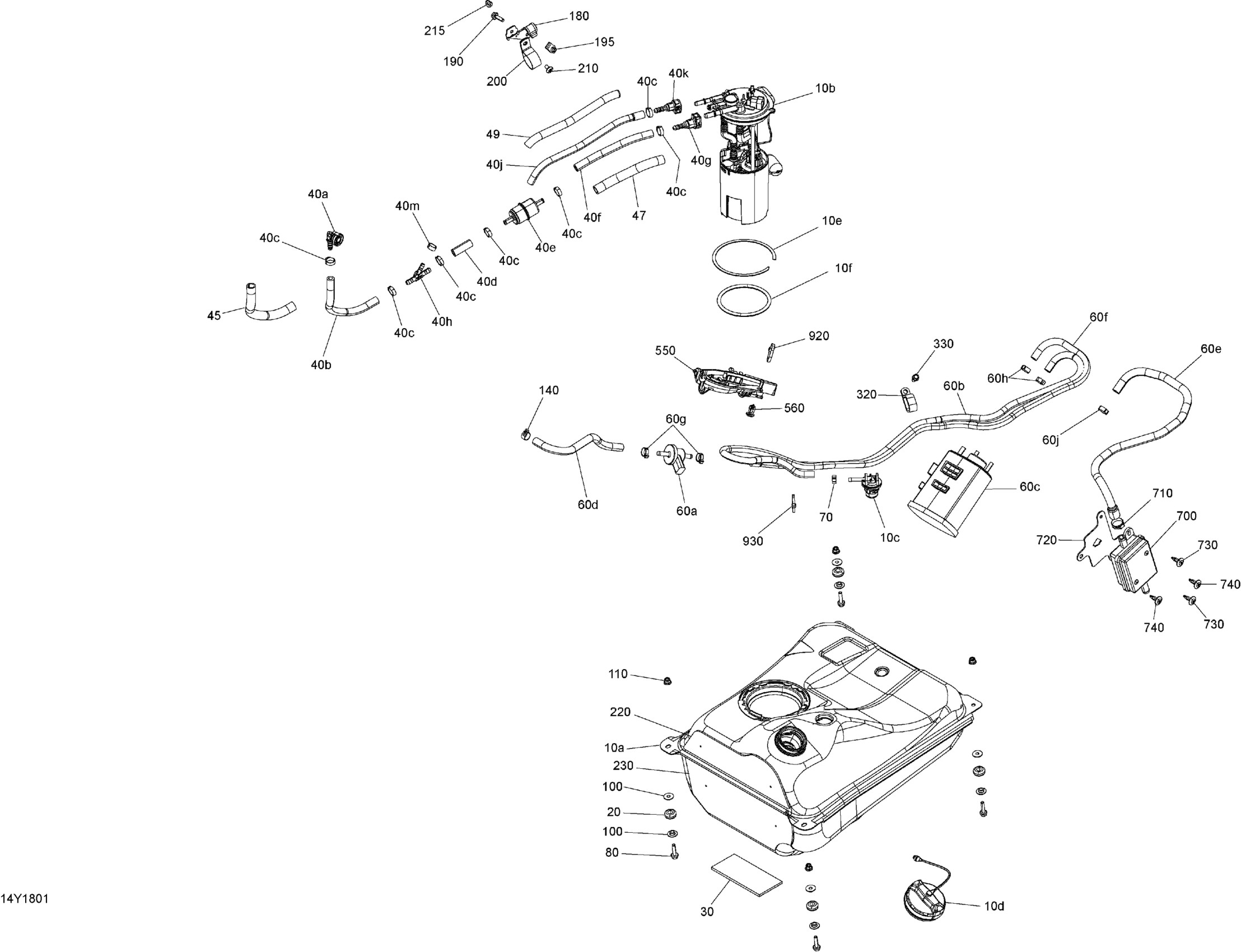

Can-Am RT STD SM6 & SE6, 2018 02- Fuel Diagram

Fuel Tank

Fuel Pump Module

Rollover Valve

Gaz Cap

Seal Kit

Seal Kit

Grommet

Carpet

Fuel Filter Ass'y | Includes 40f to 40f2

Elbow Fitting 90°

Fuel Line 7.9 mm, Meter

Oetiker Clamp

Fuel Line 7.9 mm, Meter

Fuel Filter

Fuel Line 7.9 mm, Meter

Female Quick Fitting Ass'y

Y Fitting

Hose, 275MM

Quick Connect Pipe Fitting

Oetiker Clamp

Tubing 16 Mm 1000Mm Long

Protector Tube, 16 mm

Was 409901800 Tubing (13 mm)

Bleed Valve

Hose, 880MM

Vapor Canister

Hose, 275MM

Formed Hose

Hose, 1275MM

Crimp Clamp, 15.3-706R

Oetiker Gear Clamp

Oetiker Clamp

Oetiker Gear Clamp

Hex. Flange Screw M6 X 25

Bushing

Hex. Flange Elastic Nut M6 x 1.0

Universal Spring Clamp

Fuel Filter Support

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Open Clamp

Torx Truss Screw M6 X 12

Domed Nut M6

Reflective Sheet

Reflective Sheet

Open Clamp

Hex. Flange Screw M6 X 12

Hose Support

Tuflok Plastic Rivet

Air Filter

Spring Clamp

Filter Support

Tuflock Phillips Plastic Screw

Tuflock Phillips Plastic Screw

Tie-Rap 180 mm

Tie-Rap 180 mm
