Description

Price

240

USB Outlet

219400510

$42.99

3200

4.5" Speaker

710005433

$35.99

3201

Torx-Truss M/S M4 X 20

250000783

$2.11

3202

Flat Washer

517225900

$0.18

3203

Well Rubber Nut M4 X 0.7

705003635

$6.14

3250

4.5" Speaker

710005433

$35.99

3251

Torx-Truss M/S M4 X 20

250000783

$2.11

3252

Flat Washer

517225900

$0.18

3253

Well Rubber Nut M4 X 0.7

705003635

$6.14

4013

Cap

708400166

$3.89

4056

Trim 1000Mm Long

219704354

$15.99

4059

Connector Plug

710004903

$2.85

4061

Rear Support

710002860

$11.49

4062

Tuflok Plastic Rivet

293150230

$1.47

4073

Connector Plug

710004902

$2.85

4083

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

4401

Clip

414227300

$1.67

4402

Clip

414227300

$1.67

4409

Clip

414227300

$1.67

4450

Rubber Plug, 16.65 X 5.35 mm

710002212

$1.26

5150

Antenna Cable Ass'y

710005506

$105.99

5151

Antenna Support

710001532

$58.99

5152

Curved Stainless Lock Washer DIN.128A

234140602

$2.11

5153

Brass Hex Nut M4 DIN.934

232041200

$2.00

5154

Brass Flat Washer DIN.433 M4

234040200

$2.96

5155

Brass Hex Nut M4 DIN.934

232041200

$2.00

5156

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5157

Screw M4 X 16

250000725

$3.49

5158

Hex. Screw M8 X 16, Scotch Grip

207381660

$1.01

5159

Flat Washer 8 mm, Stainless

234082600

$2.43

7700

LH Rear Flasher | Includes 501 to 502, Japan

710003567

$68.99

7700

RH Rear Flasher | Includes 498 to 499, Japan

710003566

$68.99

7700a

Bulb 12V/10W, Amber

219800039

$5.29

7760

Tie-rap Mount (square - self-adhsive)

293750040

$3.99

7950

License Light | Includes 0an to 0an1

710001451

$76.49

7950a

Bulb

219800128

$2.46

7955

Flange Torx Screw K40 X 16

250000287

$2.11

7960

LH Rear Tail Light | Includes 354 to 356, All Models Except Japan

710002502

$423.49

7960

LH Rear Tail Light | Includes 504 to 506, Japan

710003575

$402.49

7960a

Bulb

520000758

$9.10

7960b

Flasher Bulb

219800122

$6.66

7960b

Flasher Bulb

219800304

$6.66

7961

Torx Truss M8 X 16

250000881

$2.11

7962

Flat Washer

224060201

$1.26

7963

Torx Truss M8 X 16

250000881

$2.11

7970

RH Rear Tail Light | Includes 357 to 359, All Models Except Japan

710002501

$423.49

7970

RH Rear Tail Light | Includes 507 to 509, Japan

710003576

$402.49

7970a

Bulb

520000758

$9.10

7970b

Flasher Bulb

219800122

$6.66

7970b

Flasher Bulb

219800304

$6.66

7971

Torx Truss M8 X 16

250000881

$2.11

7972

Flat Washer

224060201

$1.26

7973

Torx Truss M8 X 16

250000881

$2.11

8700

LH Housing

710002349

$169.99

8750

RH Housing Passenger Switch

710002464

$100.49

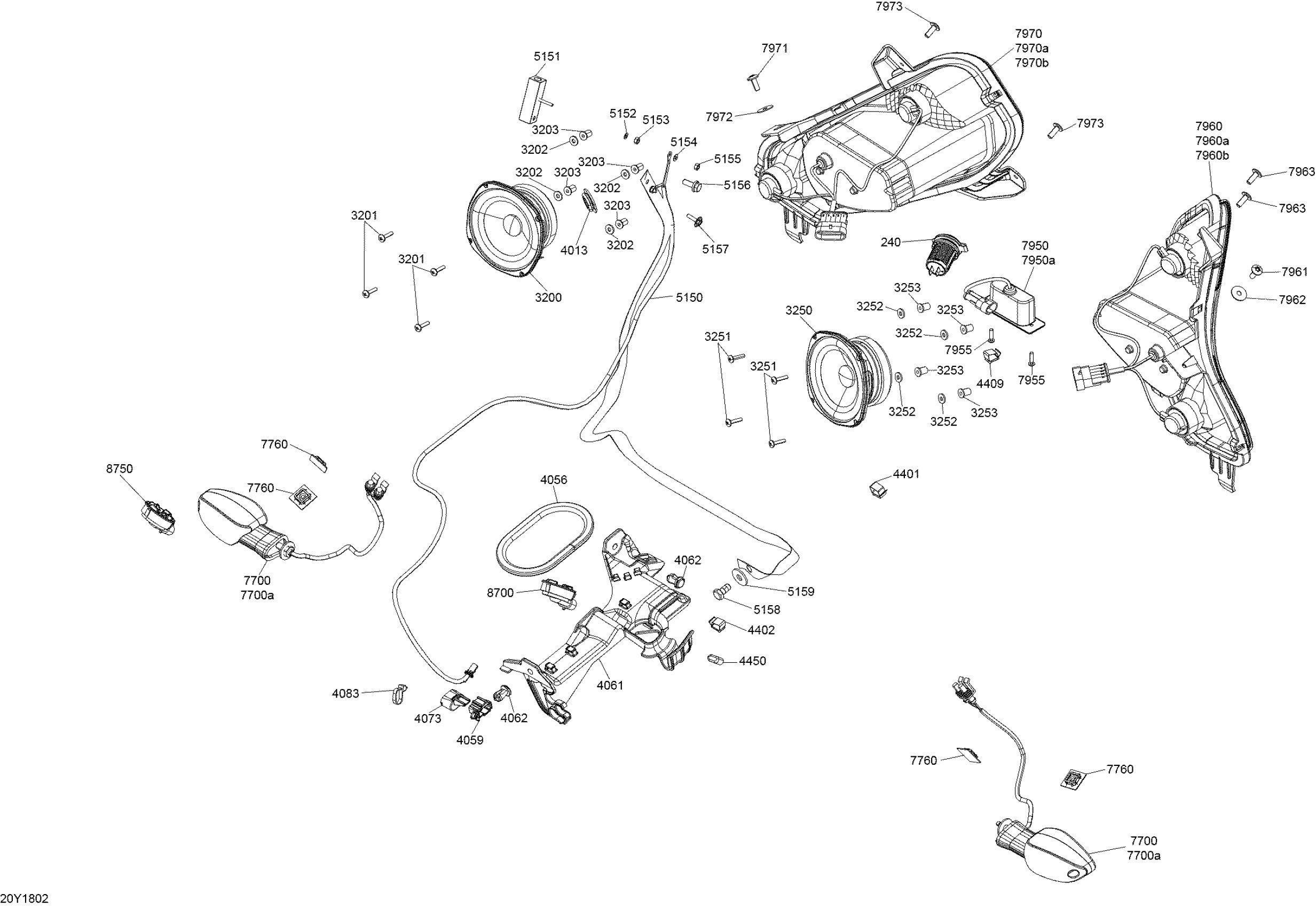

Can-Am RT LTD SE6, 2018 10- Electrical Cargo Diagram

USB Outlet

4.5" Speaker

Torx-Truss M/S M4 X 20

Flat Washer

Well Rubber Nut M4 X 0.7

4.5" Speaker

Torx-Truss M/S M4 X 20

Flat Washer

Well Rubber Nut M4 X 0.7

Cap

Trim 1000Mm Long

Connector Plug

Rear Support

Tuflok Plastic Rivet

Connector Plug

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

Clip

Clip

Clip

Rubber Plug, 16.65 X 5.35 mm

Antenna Cable Ass'y

Antenna Support

Curved Stainless Lock Washer DIN.128A

Brass Hex Nut M4 DIN.934

Brass Flat Washer DIN.433 M4

Brass Hex Nut M4 DIN.934

Hex. Flange Screw M6 X 16, Scotch Grip

Screw M4 X 16

Hex. Screw M8 X 16, Scotch Grip

Flat Washer 8 mm, Stainless

LH Rear Flasher | Includes 501 to 502, Japan

RH Rear Flasher | Includes 498 to 499, Japan

Bulb 12V/10W, Amber

Tie-rap Mount (square - self-adhsive)

License Light | Includes 0an to 0an1

Bulb

Flange Torx Screw K40 X 16

LH Rear Tail Light | Includes 354 to 356, All Models Except Japan

LH Rear Tail Light | Includes 504 to 506, Japan

Bulb

Flasher Bulb

Flasher Bulb

Torx Truss M8 X 16

Flat Washer

Torx Truss M8 X 16

RH Rear Tail Light | Includes 357 to 359, All Models Except Japan

RH Rear Tail Light | Includes 507 to 509, Japan

Bulb

Flasher Bulb

Flasher Bulb

Torx Truss M8 X 16

Flat Washer

Torx Truss M8 X 16

LH Housing

RH Housing Passenger Switch
