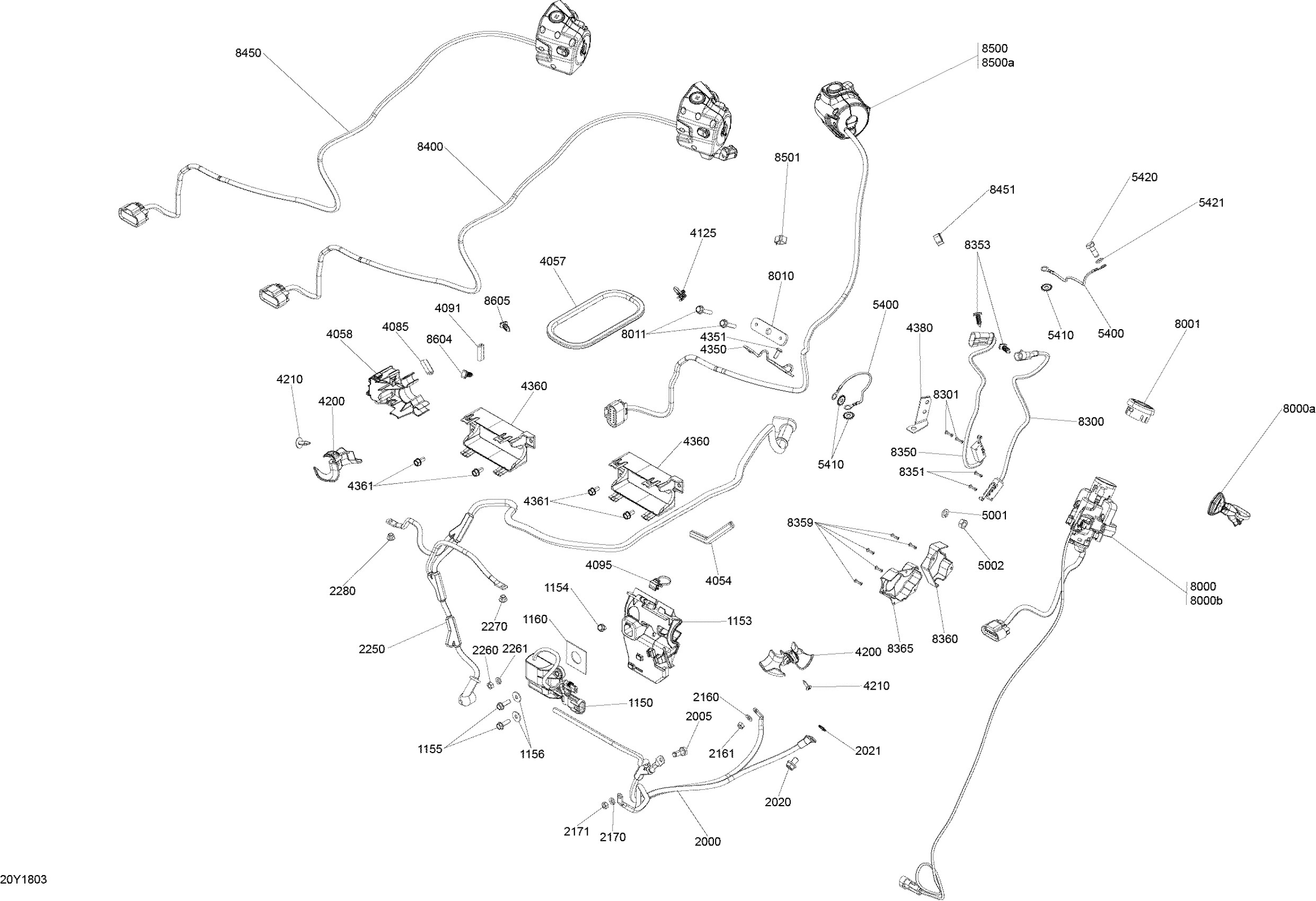

Can-Am RT LTD SE6, 2018 10- Electrical Accessories Diagram

#

Description
Price

1150

Dess Module

710004916

$179.99

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Flat Washer 6 mm

234062410

$0.77

1160

Rubber Bumper

293830091

$8.29

2000

Starter Cable | Man. Date Aug 1rst 2016 And Up

710005322

$58.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561414

$0.55

2170

Lock Washer Helical M6

234161601

$1.15

2171

Hex. Nut M6

232061600

$1.15

2250

Pos Cable

710005026

$84.99

2260

Hex. Nut M6

232061600

$1.15

2261

Lock Washer Helical M6

234161601

$1.15

2270

Rivet 6,4 mm

293150173

$4.29

2280

Rivet 6,4 mm

293150173

$4.29

4054

Trim 1000Mm Long

219704354

$15.99

4057

Trim 1000Mm Long

219704354

$15.99

4058

Connector Support

710004086

$8.49

4085

Trim 1000Mm Long

219704354

$15.99

4091

Trim 1000Mm Long

219704354

$15.99

4095

Clip Tie-Rap

293750063

$8.75

4125

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4350

Grommet Spindle

710003017

$14.83

4351

Torx Screw M5 X 14

250000742

$1.47

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

4380

Connectors Bracket

710003305

$13.17

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Tank Cable

710004849

$19.49

5410

Lock Washer Serrated M6

250200041

$1.15

5420

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5421

Washer

250200111

$2.11

8000

Ignition Switch with Harness

710005640

$306.99

8000a

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

8000b

DESS Antenna

219800373

$60.49

8001

Switch Cover

710003594

$16.49

8010

Switch Support

710001365

$20.99

8011

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

8300

Brake Light Switch Ass'y

710003412

$46.49

8301

Pop Rivet

293150150

$2.40

8350

Brake Pressure Switch Ass'y

710001379

$43.49

8351

Pop Rivet

293150150

$2.40

8353

Connector Holder

710002033

$3.39

8359

Pop Rivet

293150150

$2.40

8360

LPS Deflector

705601402

$13.23

8365

Deflector

705601344

$12.71

8400

Logem.Inter. *Housing-Switch | Automatic

710008164

$699.99

8450

LH Switch Housing | Manual

710005430

$455.49

8451

Clip

414227300

$1.67

8500

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

8500a

Housing Switch

710005158

$16.49

8501

Clip

414227300

$1.67

8604

Connector Holder

710002033

$3.39

8605

Connector Holder

710002033

$3.39

Hex. Jam Nut M14

232170411

$1.48

Antenna

710005434

$27.49
