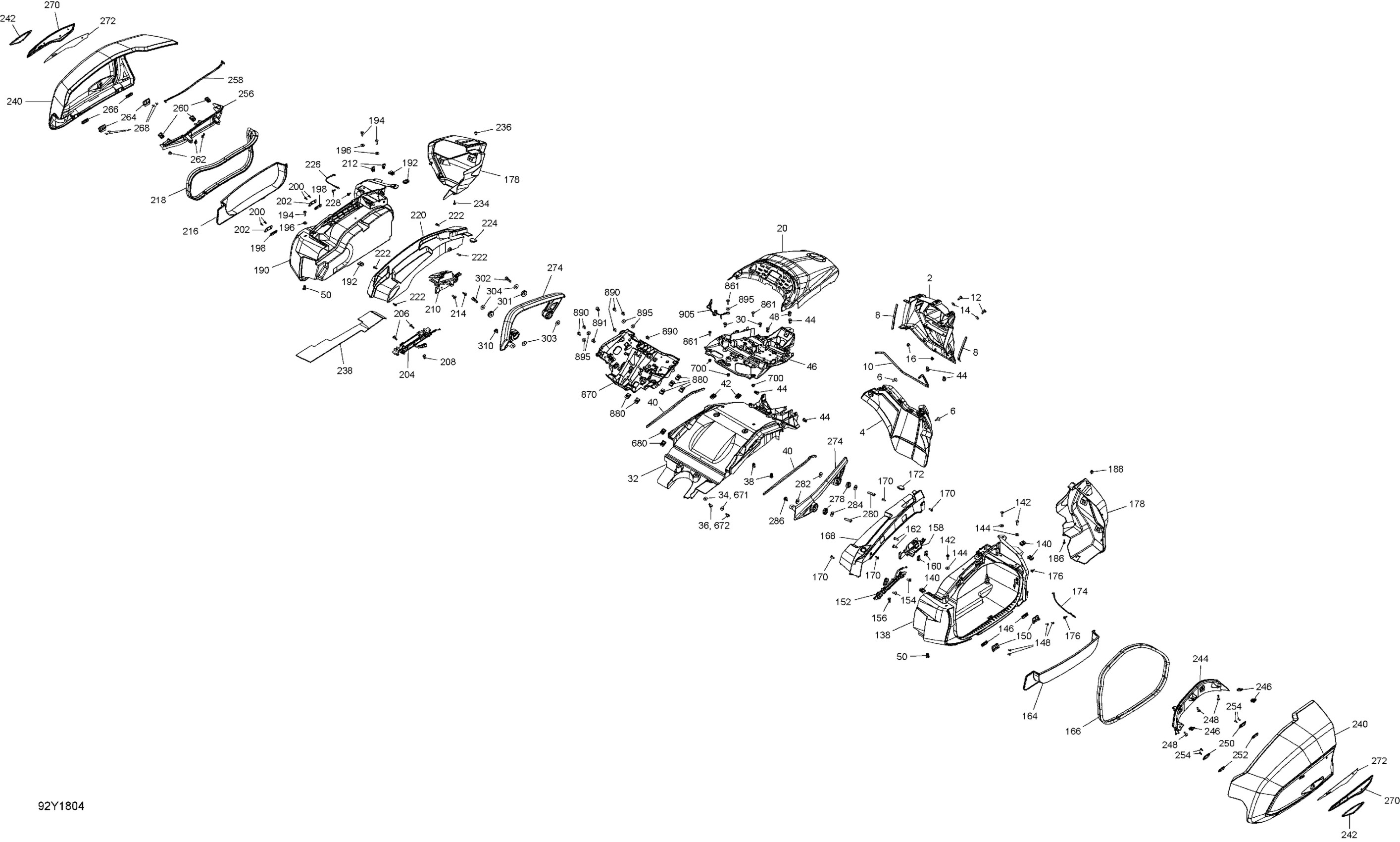

Can-Am F3 T SE6, 2018 09- Cargo Diagram

Rear Fender

708301584

$204.99

Rear Fender Extention

708301747

$204.99

Tuflock Phillips Plastic Screw

414745900

$1.69

Neoprene Seal, 150 MM

293250385

$3.39

Seal 1000Mm Long

219704373

$8.26

Steel black Tail Fairing | Package LTD Monolith Black

708001786

$249.99

Edge Clip

517302785

$0.88

Tuflok Plastic Rivet

293150230

$1.47

Under Tail

708301609

$46.49

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Tuflok Plastic Rivet

293150230

$1.47

Neoprene Seal, 150 MM

293250385

$3.39

Panel Nut M6 X 1.0

250100208

$1.46

Tuflok Plastic Rivet

293150230

$1.47

Support

708302143

$23.99

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

LH Cargo

708302404

$94.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Flat washer M6

250200164

$1.01

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

Male Hinge

708302045

$11.49

LH Latch Assembly

708301794

$154.99

Torx Screw M6 X 20

250000722

$1.68

Connector Holder

710002033

$3.39

LH Control

708301222

$43.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cargo Separator LH | Package T and LTD

708301719

$14.99

Molded Weather Strip

293250420

$30.99

LH Cargo Fairing

708302401

$78.99

Torx Screw K50 X 16

250000720

$1.69

Retainer Cable

708300385

$38.99

Screw M4 X 16

250000725

$3.49

LH Light Support

708302283

$49.99

RH Light Support

708302285

$49.99

Brace

708302284

$12.99

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Torx Screw K50 X 16

250000720

$1.69

Rubber Bumper

293830005

$8.09

RH Cargo

708302405

$94.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Flat washer M6

250200164

$1.01

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

Male Hinge

708302045

$11.49

RH Latch Assembly

708301795

$154.99

Torx Screw M6 X 20

250000722

$1.68

Connector Holder

710002033

$3.39

RH Control

708301697

$43.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cargo Separator RH | Package T and LTD

708301862

$14.99

Molded Weather Strip

293250420

$30.99

RH Cargo Fairing

708302402

$78.99

Torx Screw K50 X 16

250000720

$1.69

Antena Cap

708301805

$3.89

Retainer Cable

708300385

$38.99

Screw M4 X 16

250000725

$3.49

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Torx Screw K50 X 16

250000720

$1.69

Rubber Bumper

293830005

$8.09

Heat Shield

705009908

$47.99

Steel Black, LH Trunck Cover

708301268

$459.99

Vegas White, LH Trunk Cover

708301917

$459.99

Monolith Black, LH Trunk Cover

708301993

$459.99

LH Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302450

$459.99

Jet Black Met., LH Cover | Model Jet
Black

708302452

$459.99

Intense Red Pearl, LH Cover | Package T and LTD Intense Red

708302635

$459.99

Steel Black, RH Trunk Cover

708301269

$459.99

Vegas White, RH Trunk Cover

708301922

$459.99

Monolith Black, RH Trunk Cover

708301994

$459.99

RH Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302451

$449.99

Jet Black Metallic , RH Cover | Model Jet
Black

708302453

$459.99

Intense Red Pearl, RH Cover | Model Intense
Red

708302636

$459.99

Amber, Lateral Reflector

705002423

$15.49

Red, Lateral Reflector

705003412

$15.49

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Female Hinge

708302044

$11.49

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

Gasket, Neoprene 2000Mm Long

219704476

$15.36

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Female Hinge

708302044

$11.49

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

LH Trim Box

708301587

$129.99

TRIM_BOX LH B-282 - Call your local BRP dealership | Package T

708301701

Unavailable

LH Moulding

708301839

$129.99

TRIM_BOX LH B-257 - Call your local BRP dealership | Model Jet
Black

708302532

Unavailable

RH Trim Box

708301588

$129.99

Moulding RH | Package T

708301702

$129.99

RH Moulding

708301840

$129.99

TRIM_BOX RH B-257 - Call your local BRP dealership | Model Jet
Black

708302533

Unavailable

Trim Box Double Face Tape

704905469

$3.69

LH Rear Holding Handle

708003456

$105.99

Bushing

708302461

$19.49

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

Flat Washer 8 mm

234082410

$1.47

Stainless Steel Flat Washer 8 mm

234081670

$0.67

Tuflock Phillips Plastic Screw

414745900

$1.69

RH Rear Holding Handle

708003457

$105.99

Bushing

708302461

$19.49

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

Flat Washer 8 mm

234082410

$1.47

Stainless Steel Flat Washer 8 mm

234081670

$0.67

Tuflock Phillips Plastic Screw

414745900

$1.69

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Panel Nut M6 X 1.0

250100208

$1.46

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Torx Screw M6 X 20

250000722

$1.68

Cargo Rear Support

708301698

$89.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Head Screw M6 X 16

250000717

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Flat washer M6

250200164

$1.01

Lanyard | Included 905 to 905d

708002532

$22.99

Cord Decal

704905127

Unavailable
