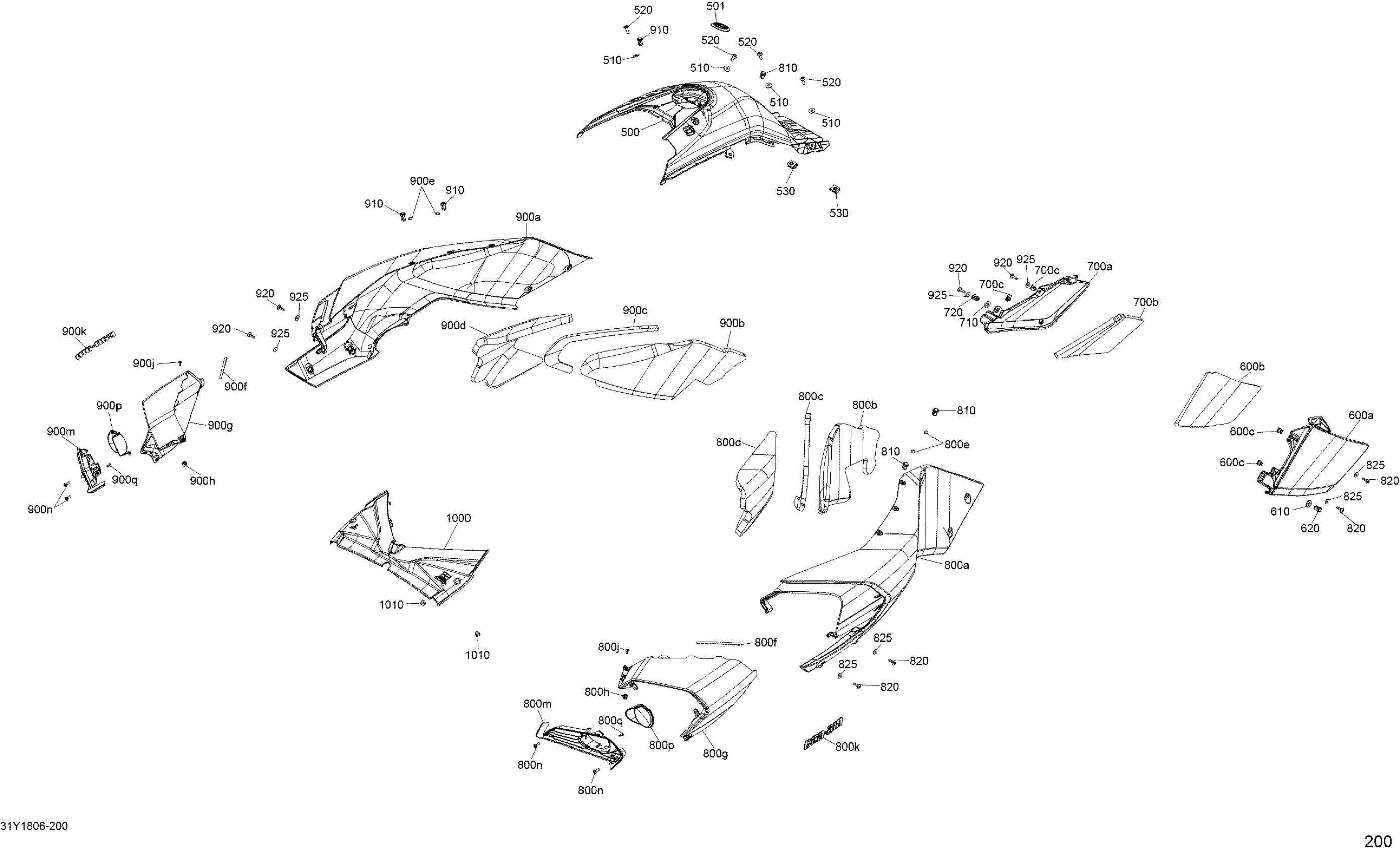

Can-Am F3 T SE6, 2018 09- Body And Accessories - Fairing Diagram

#

Description
Price

500

Steel Black Fuel Tank Cover

705008246

$249.99

510

Stainless Steel Flat Washer

234062670

$2.11

520

Torx Screw M6 X 20

250000722

$1.68

530

Panel Nut M6 X 1.0

250100208

$1.46

600a

Vegas White, LH Low Fairing

705009924

$194.99

600a

Monolith Black, LH Low Fairing

705010644

$199.99

600a

Oxford Blue, LH Low Fairing | Model Oxford Blue

705012234

$244.99

600a

Intense Red, LH Low Fairing | Model Intense Red

705012851

$194.99

600b

LH Acoustic Foam

705010473

$19.49

600c

Panel Nut M5 X 0.8

250100176

$4.09

600d

Seal Joint

293250380

$9.79

610

Spacer

705010890

$2.89

620

Tuflok Plastic Rivet

293150230

$1.47

700a

Vegas White, RH Low Fairing

705009925

$244.99

700a

Monolith Black, RH Low Fairing

705010643

$244.99

700a

Oxford Blue, RH Low Fairing | Model Oxford Blue

705012232

$244.99

700a

Intense Red, RH Low Fairing | Model Intense Red

705012852

$244.99

700b

RH Acoustic Foam

705010474

$14.49

700c

Panel Nut M5 X 0.8

250100176

$4.09

700d

Seal Joint

293250380

$9.79

710

Spacer

705010890

$2.89

720

Tuflok Plastic Rivet

293150230

$1.47

800a

LH Lateral Fairing - Oxford Blue | Oxford Blue

705010779

$369.99

800a

Vegas White, LH Lateral Fairing

705010844

$249.99

800a

Monolith Black, LH Lateral Fairing

705010847

$254.99

800a

Bare, LH Fairing

705010851

$109.99

800b

Acoustic Foam

705009155

$16.99

800c

Acoustic Foam

705009157

$8.49

800d

Acoustic Foam

705009159

$16.99

800e

Polyurethane Stopper

705006634

$4.76

800f

Seal 1000Mm Long

219704373

$8.26

800g

Hyper Silver, LH Air Scoop | Model Vegas White

705011173

$229.99

800g

Carbon Black, LH Air Scoop

705011175

$224.99

800h

Anchor Pin

705009430

$1.37

800j

Torx Truss Screw K40 X 12

250000577

$2.11

800k

Brillant Chrome, Logo CAN-AM

704904675

$38.99

800m

Deep Black, LH Air Vent Grid

705010137

$19.99

800n

Torx Screw K50 X 16

250000720

$1.69

800p

Deep Black, LH Light Cap

705007787

$10.99

800p

LH Heat Shield

705008995

$13.99

800q

Torx Truss Screw K40 X 12

250000577

$2.11

810

Tuflok Plastic Rivet

293150230

$1.47

820

Torx Truss M5 X 20

250000586

$4.44

825

Stainless Steel Flat Washer M5

234052670

$1.01

900a

RH Lateral Fairing - Oxford Blue | Oxford Blue

705010781

$369.99

900a

Vegas White, RH Lateral Fairing

705010836

$254.99

900a

Monolith Black, RH Lateral Fairing

705010839

$254.99

900a

Intense Red, RH Fairing | Model Intense Red

705012849

$429.99

900b

Acoustic Foam

705009156

$16.99

900c

Acoustic Foam

705009158

$8.49

900d

Acoustic Foam

705009160

$16.99

900e

Polyurethane Stopper

705006634

$4.76

900f

Seal 1000Mm Long

219704373

$8.26

900g

Hyper Silver, RH Air Scoop | Model Vegas White

705011174

$229.99

900g

Carbon Black, RH Air Scoop

705011176

$224.99

900h

Anchor Pin

705009430

$1.37

900j

Torx Truss Screw K40 X 12

250000577

$2.11

900k

Brillant Chrome, Logo CAN-AM

704904675

$38.99

900m

Deep Black, RH Air Vent Grid

705010138

$19.99

900n

Torx Screw K50 X 16

250000720

$1.69

900p

Deep Black, RH Light Cap

705008963

$10.99

900p

RH Heat Shield

705008996

$13.99

900q

Torx Truss Screw K40 X 12

250000577

$2.11

910

Tuflok Plastic Rivet

293150230

$1.47

920

Torx Truss M5 X 20

250000586

$4.44

925

Stainless Steel Flat Washer M5

234052670

$1.01

1000

Service Center Fairing

705008058

$33.99

1010

Rubber Bumper

293830005

$8.09
