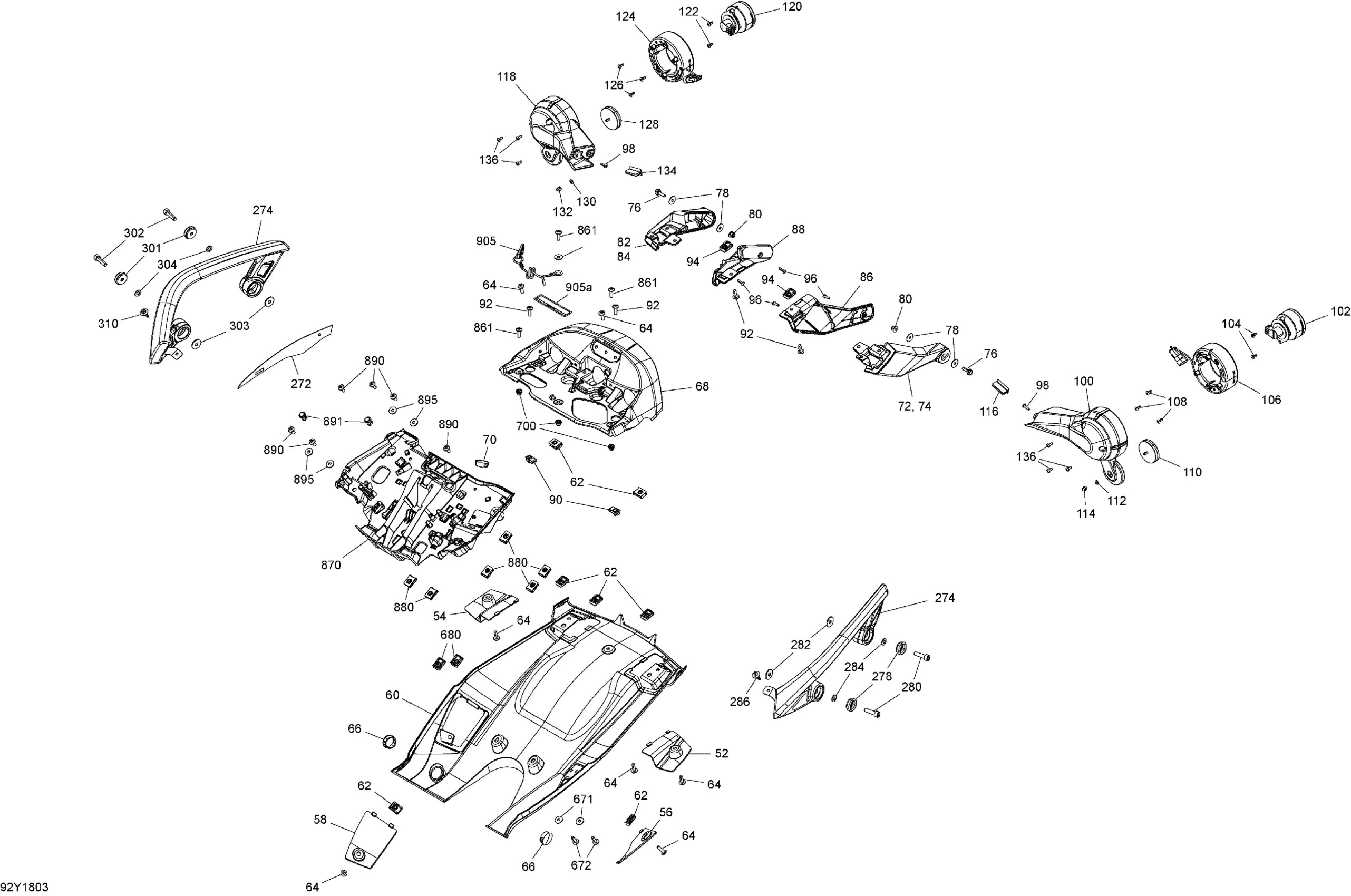

Can-Am F3 STD SE6, 2018 09- Cargo Diagram

#

Description
Price

52

LH Rear Cap

708301449

$15.49

54

RH Rear Cap

708301450

$15.49

56

LH Front Cap

708301513

$16.99

58

RH Front Cap

708301514

$16.99

60

Under Tail Cover

708001415

$54.99

62

Panel Nut M6 X 1.0

250100208

$1.46

64

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

66

Black, Nylon Cap

414916600

$4.69

68

Taillight Support

708002814

$26.99

70

Black, Nylon Cap

414916600

$4.69

72

LH Support

708001622

$19.49

74

LH Flasher Support

708002222

$71.99

76

Hex. Flange Screw M6 X 20

207662044

$2.00

78

Flat Washer

224060201

$1.26

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

82

RH Support

708001623

$19.49

84

RH Flasher Support

708002223

$71.99

86

LH Cap Support

708001624

$16.99

88

RH Cap Support

708001625

$16.99

90

Panel Nut M6 X 1.0

250100198

$2.11

92

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

94

Panel Nut M6 X 1.0

250100208

$1.46

96

Torx-Truss Pt K40 X 16

250000759

$2.11

98

Flange Torx Screw K40 X 16

250000287

$2.11

100

LH Housing Ass'y

708002232

$31.99

102

Rear Flasher

710004057

$163.99

104

Torx Truss Screw K40 X 12

250000577

$2.11

106

Rear Light

710004056

$402.49

108

Torx Truss Screw K40 X 12

250000577

$2.11

110

Red Reflector

705011221

$14.49

112

Flat Washer M5

234051670

$2.11

114

Cap Nut M5

250100152

$2.00

116

Neoprene Seal 3000Mm Long

219704371

$51.99

118

RH Housing Ass'y

708002233

$31.99

120

Rear Flasher

710004057

$163.99

122

Torx Truss Screw K40 X 12

250000577

$2.11

124

Rear Light

710004056

$402.49

126

Torx Truss Screw K40 X 12

250000577

$2.11

128

Red Reflector

705011221

$14.49

130

Flat Washer M5

234051670

$2.11

132

Cap Nut M5

250100152

$2.00

134

Neoprene Seal 3000Mm Long

219704371

$51.99

136

Torx Truss Screw K40 X 12

250000577

$2.11

274

LH Rear Holding Handle

708003456

$105.99

274

RH Rear Holding Handle

708003457

$105.99

278

Bushing

708302461

$19.49

280

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

282

Flat Washer 8 mm

234082410

$1.47

284

Stainless Steel Flat Washer 8 mm

234081670

$0.67

286

Tuflock Phillips Plastic Screw

414745900

$1.69

301

Bushing

708302461

$19.49

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$2.85

303

Flat Washer 8 mm

234082410

$1.47

304

Stainless Steel Flat Washer 8 mm

234081670

$0.67

310

Tuflock Phillips Plastic Screw

414745900

$1.69

671

Stainless Steel Flat Washer

234062670

$2.11

672

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

680

Panel Nut M6 X 1.0

250100208

$1.46

700

Insert Half Hex Body M6 x 1.0

250100199

$3.19

861

Torx Screw M6 X 20

250000722

$1.68

870

Cargo Rear Support

708301698

$89.99

880

Panel Nut M6 X 1.0

250100208

$1.46

890

Torx Head Screw M6 X 16

250000717

$2.11

891

Tuflok Plastic Rivet

293150230

$1.47

895

Flat washer M6

250200164

$1.01

905

Lanyard | Included 905 to 905d

708002532

$22.99

905a

Cord Decal

704905127

Unavailable
