Description

Price

10

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10d

707602475

$953.99

10

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

219800442

$953.99

10a

Carbon Black, Heat Shield | Includes 10b to 10b2

707601560

$82.49

10a

Carbon Black, Heat Shield | Includes 10b to 10b2

707601381

$76.49

10b

Carbon Black Muffler End Cap | Includes 10c to 10c2

707601561

$82.49

10b

Panel Nut M6 X 1.0

250100198

$2.11

10c

Rivet-Pop 5/32

293150219

$1.39

10c

Black, Flat Washer 6 mm

234061670

$1.25

10d

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10e

Carbon Black, Heat Shield | Includes 10g to 10g2

707601054

$26.99

10f

Panel Nut M6 X 1.0

250100198

$2.11

10g

Black, Flat Washer 6 mm

234061670

$1.25

10h

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

10j

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

707601995

$82.49

10k

Black, Flat Washer 6 mm

234061670

$1.25

10m

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

20

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

707602866

$1,197.49

30

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$338.99

40

Exhaust Manifold | Includes 40 to 40j

707601922

$769.99

50

Hex. Flange Nut M8

233081416

$1.15

60

Exhaust Seal

707601985

$7.94

70

Exhaust Clamp

707600980

$24.99

80

Exhaust Clamp

707600980

$24.99

90

Exhaust Gasket

514054174

$28.49

150

Socket Screw M10 X 60

244006060

$3.59

160

Washer 10 mm

506150000

$2.74

170

Hex. Flange Nut M10

233101600

$5.29

220

Spring

415107100

$6.35

230

Hex Flange Screw M10 X 20

207502044

$4.44

240

Muffler Support | Includes 240 to 240c

707601550

$46.49

240

Support | Includes 240 to 240d2

707601940

$76.49

240a

Rubber Bushing

293830167

$14.83

240b

Muffler Support | Includes 240a to 240a2

707601683

$67.99

240c

Anti-Vibration Rubber

293830162

$13.22

240d

Black Bushing | Includes 240d to 240d2

707601657

$17.59

240d1

Bushing

707601589

$16.49

270

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

350

Anti-Vibration Rubber

707600702

$8.57

360

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

370

Hex. Flange Screw M6 X 12

210261250

$1.90

460

Oxygen Sensor

707600872

$144.99

470

Tie-Rap 180 mm

414115200

$0.11

500

Heat Shield interior

707603641

$53.99

510

Heat Shield Exterior

707603642

$53.99

520

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

530

Flat Washer M6, Stainless

234062600

$0.77

540

Panel Nut M6 X 1.0

250100198

$2.11

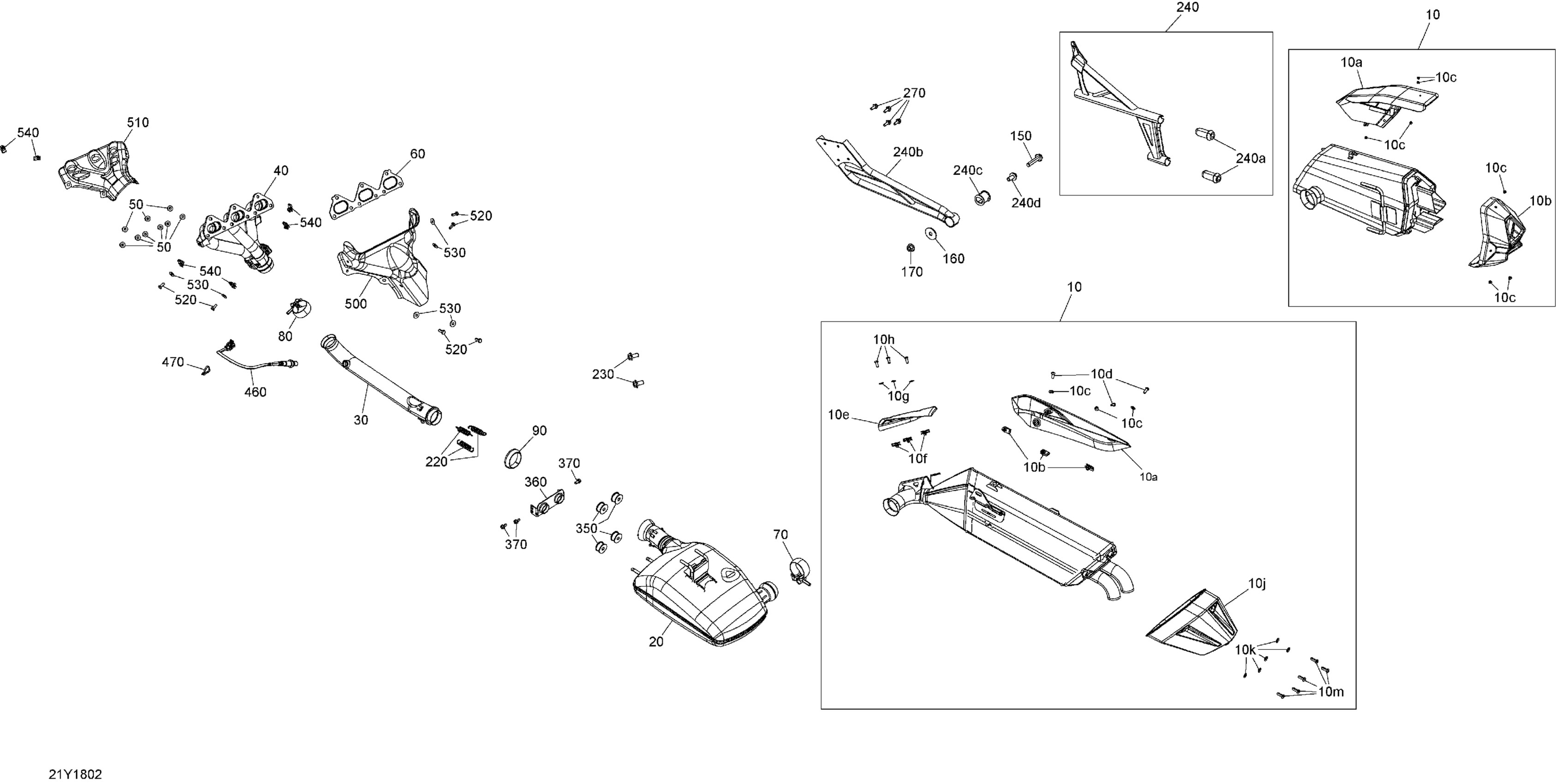

Can-Am F3 STD SE6, 2018 01- Exhaust Diagram

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10d

Carbon Black, Muffler Exhaust Sec. | Includes 10 to 10p

Carbon Black, Heat Shield | Includes 10b to 10b2

Carbon Black, Heat Shield | Includes 10b to 10b2

Carbon Black Muffler End Cap | Includes 10c to 10c2

Panel Nut M6 X 1.0

Rivet-Pop 5/32

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, Heat Shield | Includes 10g to 10g2

Panel Nut M6 X 1.0

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Carbon Black, RH Rear Muffler Trim | Includes 10m to 10m2

Black, Flat Washer 6 mm

Black, Socket Screw, M6 X 16 S.Grip

Primary Exhaust Muffler | North America Man. Date Aug 1rst 2016 And Up

Exhaust Tuned Pipe | Includes 30 to 30d

Exhaust Manifold | Includes 40 to 40j

Hex. Flange Nut M8

Exhaust Seal

Exhaust Clamp

Exhaust Clamp

Exhaust Gasket

Socket Screw M10 X 60

Washer 10 mm

Hex. Flange Nut M10

Spring

Hex Flange Screw M10 X 20

Muffler Support | Includes 240 to 240c

Support | Includes 240 to 240d2

Rubber Bushing

Muffler Support | Includes 240a to 240a2

Anti-Vibration Rubber

Black Bushing | Includes 240d to 240d2

Bushing

Hex. Flange Screw M6 X 16, Scotch Grip

Anti-Vibration Rubber

Front Bracket | Includes 360 to 360b1a

Hex. Flange Screw M6 X 12

Oxygen Sensor

Tie-Rap 180 mm

Heat Shield interior

Heat Shield Exterior

Hex. Screw M6 X 16, Scotch Grip

Flat Washer M6, Stainless

Panel Nut M6 X 1.0
