Description

Price

100

Upper Fairing

708400208

$36.99

110

Panel Nut M6 X 1.0

250100208

$1.46

200

Cluster Holder

708400005

$23.99

210

Torx Screw M6 X 20

250000722

$1.68

220

Screw Hex. M4 X 12

207141260

$1.48

230

Flat Washer 4 mm

234041480

$0.74

500

CLUSTER BEZEL - Call your local BRP dealership

708400022

$20.99

510

Torx Truss Screw K40 X 12

250000577

$2.11

600

LH Console Support | Included 100 to 100b

708400170

$99.99

600a

Panel Nut M5 X 0.8

250100176

$4.09

610

Panel Nut M6 X 1.0

250100208

$1.46

620

Hex. Flange Elastic Nut M6

233261494

$1.58

630

Panel Nut M6 X 1.0

250100208

$1.46

640

Hex. Flange Screw M6 X 25

250000793

$2.11

650

Hex. Flange Screw M6 X 16

210261650

$1.67

700

RH Console Support | Included 300 to 300b

708400171

$104.99

700a

Panel Nut M5 X 0.8

250100176

$4.09

710

Panel Nut M6 X 1.0

250100208

$1.46

720

Torx Screw M6 X 25

250000758

$2.11

730

Panel Nut M6 X 1.0

250100208

$1.46

740

Hex. Flange Screw M6 X 25

250000793

$2.11

750

Hex. Flange Screw M6 X 16

210261650

$1.67

800

Switch Bezel

708400205

$14.67

810

Cap

708400046

$3.89

900

LH Steel Black Console Fairing

708400023

$229.99

900

LH CONSOL FAIR JET BLACK - Call your local BRP dealership | Model Jet Black

708400246

Unavailable

910

Tuflok Plastic Rivet

293150230

$1.47

1000

RH Steel Black Console Fairing

708400024

$229.99

1000

RH CONSOL JET BLACK - Call your local BRP dealership | Model Jet Black

708400249

Unavailable

1010

Tuflok Plastic Rivet

293150230

$1.47

1100

Black Carbon Nose Fairing | Model with Package S / SPE

708400072

$92.99

1110

Torx Screw M5 X 25

250000762

$2.11

1120

Elastic Flange Nut M5

233251494

$2.11

1200

LH CARBON BLACK UPPER CONSOLE HEADER - Call your local BRP dealership | Model- White Vegas

708400119

Unavailable

1210

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

250000604

Unavailable

1220

Torx Screw Nylon

250000732

$2.11

1300

RH CARBON BLACK UPPER CONSOLE HEADER - Call your local BRP dealership | Model Dragon Red

708400120

Unavailable

1310

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

250000604

Unavailable

1320

Torx Screw Nylon

250000732

$2.11

1400

LH Lighted Mirror Ass'y

705008964

$284.99

1500

RH Lighted Mirror Ass'y

705008969

$284.99

1600a

Steel Black, LH Access Panel

708400256

$249.99

1600a

Jet Black, LH Acces Panel | Model Jet Black

708400271

$249.99

1600b

Cover Latch Quarter Turn

708400065

$2.79

1700a

Steel Black, RH Access Panel

708400257

$249.99

1700a

Jet Black, RH Acces Panel | Model Jet Black

708400273

$249.99

1700b

Cover Latch Quarter Turn

708400065

$2.79

3000

Gauge Cover | Included 4500 to 4525

219400531

$201.99

3001

Socket Screw M5 X .80 X 16

250000652

$1.01

3002

Gauge Cover | Included 4500 to 4525

219400531

$201.99

3003

Flat Washer M5

234051670

$2.11

3004

Gauge Cover | Included 4500 to 4525

219400531

$201.99

3005

Black, Torx Screw M6 X 35

250000646

$0.98

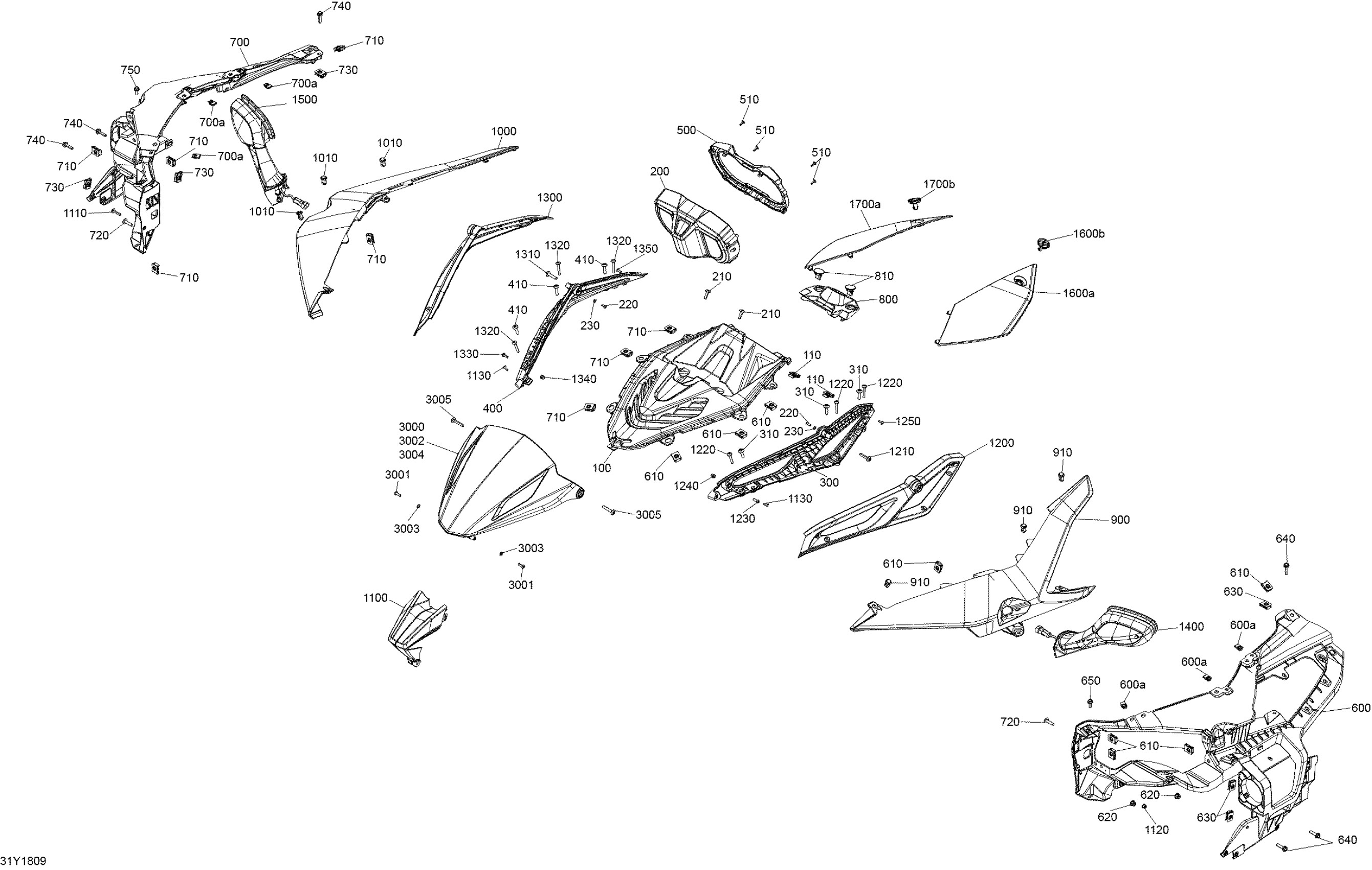

Can-Am F3 S SM6 & SE6, 2018 09- Console Diagram

Upper Fairing

Panel Nut M6 X 1.0

Cluster Holder

Torx Screw M6 X 20

Screw Hex. M4 X 12

Flat Washer 4 mm

CLUSTER BEZEL - Call your local BRP dealership

Torx Truss Screw K40 X 12

LH Console Support | Included 100 to 100b

Panel Nut M5 X 0.8

Panel Nut M6 X 1.0

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 16

RH Console Support | Included 300 to 300b

Panel Nut M5 X 0.8

Panel Nut M6 X 1.0

Torx Screw M6 X 25

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 16

Switch Bezel

Cap

LH Steel Black Console Fairing

LH CONSOL FAIR JET BLACK - Call your local BRP dealership | Model Jet Black

Tuflok Plastic Rivet

RH Steel Black Console Fairing

RH CONSOL JET BLACK - Call your local BRP dealership | Model Jet Black

Tuflok Plastic Rivet

Black Carbon Nose Fairing | Model with Package S / SPE

Torx Screw M5 X 25

Elastic Flange Nut M5

LH CARBON BLACK UPPER CONSOLE HEADER - Call your local BRP dealership | Model- White Vegas

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

Torx Screw Nylon

RH CARBON BLACK UPPER CONSOLE HEADER - Call your local BRP dealership | Model Dragon Red

SCREW-TORX TRUSS CONE HD.M6X30 - Call your local BRP dealership

Torx Screw Nylon

LH Lighted Mirror Ass'y

RH Lighted Mirror Ass'y

Steel Black, LH Access Panel

Jet Black, LH Acces Panel | Model Jet Black

Cover Latch Quarter Turn

Steel Black, RH Access Panel

Jet Black, RH Acces Panel | Model Jet Black

Cover Latch Quarter Turn

Gauge Cover | Included 4500 to 4525

Socket Screw M5 X .80 X 16

Gauge Cover | Included 4500 to 4525

Flat Washer M5

Gauge Cover | Included 4500 to 4525

Black, Torx Screw M6 X 35
