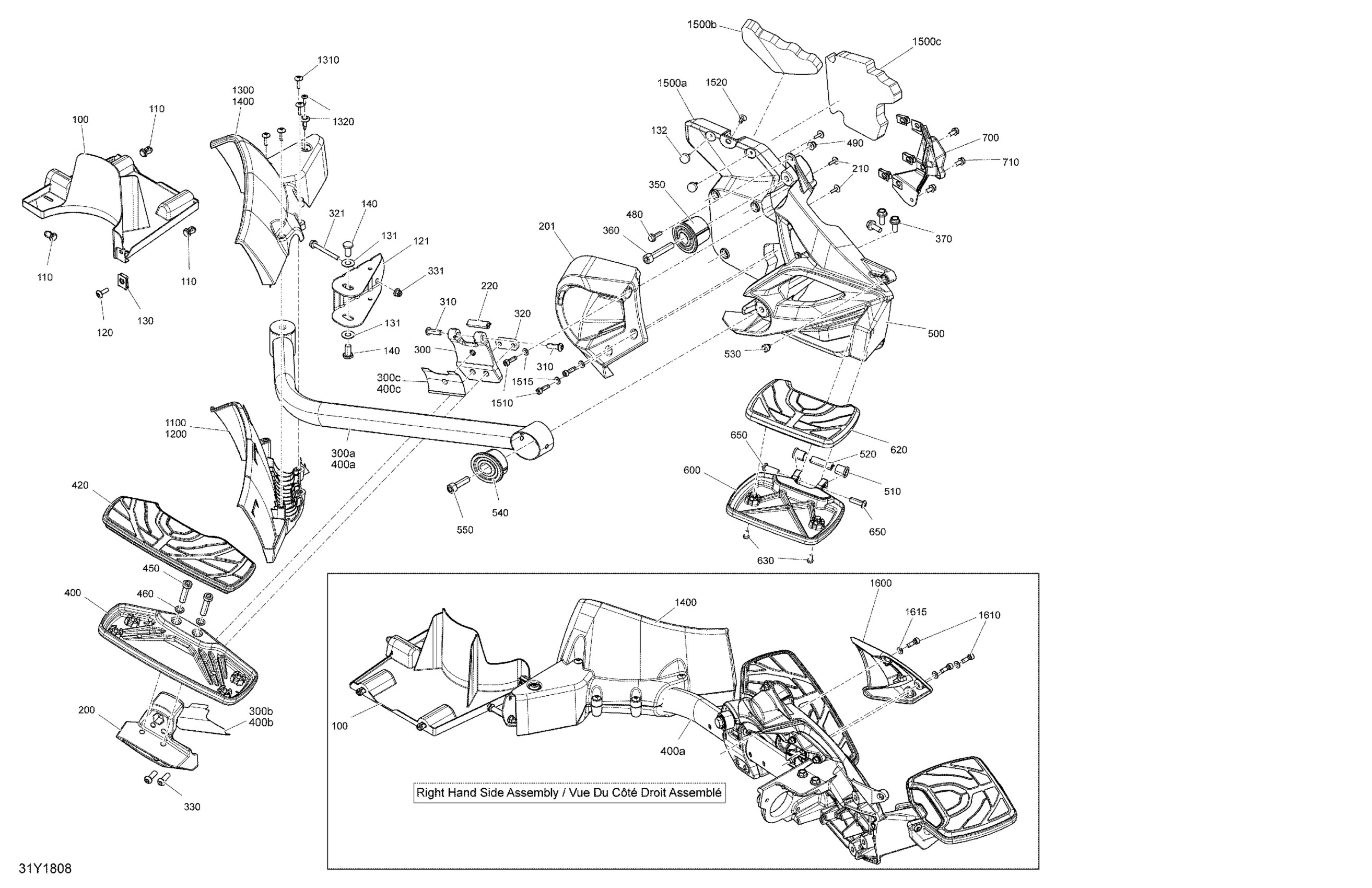

Can-Am F3 LTD SE6, 2018 09- Body And Accessories - Footrest LTD Diagram

#

Description
Price

100

LH Front Skid Plate

705007785

$28.49

100

RH Front Skid Plate

705007786

$28.49

110

Tuflok Plastic Rivet

293150230

$1.47

120

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

121

Tube Support | Includes 150 to 150a

705008950

$22.99

130

Panel Nut M6 X 1.0

250100208

$1.46

131

Washer

506152582

$4.55

132

Rubber Stopper

708000759

$4.19

140

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

200

Carbon Black, LH Slider Outside | Includes 160 to 160b

705009466

$64.99

200

Carbon Black, RH Slider Outside | Includes 170 to 170b

705009463

$62.99

201

LH Engine Fairing

705007780

$45.99

210

Screw M4 X 16

250000725

$3.49

220

Pivot Pin | Includes 220 to 220

705013628

$17.82

300

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$39.99

300

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$39.99

300a

Carbon Black, LH Footrest Support | Includes 30 to 30b

705008955

$119.99

300b

LH Outer Protective Film

705014178

$9.21

300c

LH inner Protective Film

705014174

$6.50

310

Socket Head Screw M8 X 25

250000830

$1.90

320

Back Plate

705008553

$24.99

321

Hex. Flange Screw M6 X 60

250000778

$4.44

330

Socket Head Screw M8 X 25

250000830

$1.90

331

Hex. Flange Elastic Nut M6

233261466

$2.00

350

Pivot Cap

705010202

$22.99

360

Socket Head Screw

205505560

$6.77

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

400

LH Foot Board | Includes 10 to 10b

705009454

$109.99

400

RH Foot Board | Includes 20 to 20b

705009455

$109.99

400a

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$119.99

400b

RH Outer Protective Film

705014179

$10.43

400c

RH Inner Protective Film

705014175

$6.50

420

LH Footrest Pad

705015846

$66.99

420

RH Footrest Pad

705015847

$66.99

450

Thin Socket Screw, Scotch Grip, M10

250000997

$6.77

460

Stainless Flat Washer, 10 mm

250200105

$2.11

480

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

490

Hex. Flange Elastic Nut M6

233261466

$2.00

500

Bright Chrome, LH Rear Footrest Support | Includes 80 to 80a

705008276

$949.99

500

Carbon Black, LH Rear Footrest Support | Includes 80 to 80b

705009401

$389.99

500

Bright Chrome, RH Rear Footrest Support | Includes 70 to 70a

705008277

$939.99

500

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$409.99

510

Spacer Bushing

705008166

$5.59

520

Pivot Pin | Includes 220 to 220

705013628

$17.82

530

Rubber Bumper

293830005

$8.09

540

Pivot Cap | Includes 540 to 540b

705010203

$27.99

550

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

600

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$109.99

620

Foot Board Pad, Passenger

705009234

$53.99

630

Allen Plastite Screw #12

250000099

$2.19

650

Socket Head Screw M8 X 25

250000830

$1.90

700

LH Fairing Support

705008961

$16.49

700

RH Fairing Support

705008962

$16.49

710

Hex. Flange Screw M6 X 12

210261250

$1.90

1100

LH Deflector

705007794

$43.99

1200

RH Deflector

705007795

$43.99

1300

LH Shell

705009027

$43.99

1310

Torx Truss M5 X 20

250000586

$4.44

1320

Tuflock Phillips Plastic Screw

414745900

$1.69

1400

RH Shell

705009029

$43.99

1500a

LH Acoustic Fairing

705009144

$45.99

1500b

Acoustic Foam

705009344

$8.49

1500c

Acoustic Foam

705009162

$14.49

1510

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

1515

Stainless Flat Washer M6

234061600

$0.33

1520

Dart, Fastex

293730024

$1.39

1600

RH Engine Fairing

705007781

$45.99

1610

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

1615

Stainless Flat Washer M6

234061600

$0.33
