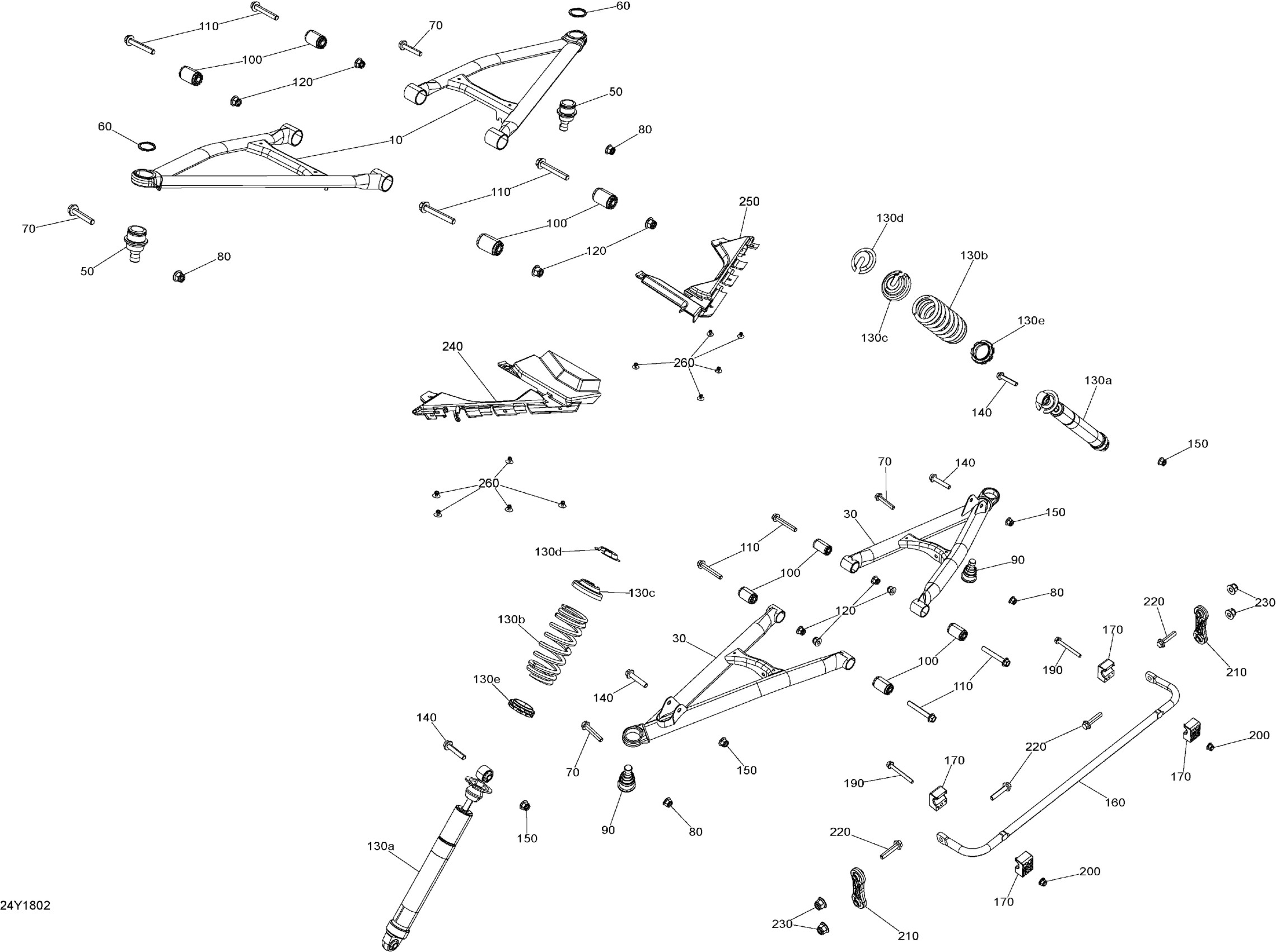

Can-Am F3 LTD SE6, 2018 07- Front Suspension Diagram

#

Description
Price

10

Carbon Black, LH Upper Suspension Arm

706204681

$158.99

10

UPPER LH ARM - Call your local BRP dealership | Model Jet Black

706203092

Unavailable

10

Carbon Black RH Upper Arm | Model-Black

706201989

$158.99

10

UPPER RH ARM - Call your local BRP dealership | Model Jet Black

706203093

Unavailable

30

Carbon Black, LH Lower Suspension Arm

706201990

$158.99

30

LOWER LH ARM - Call your local BRP dealership | Model Jet Black

706203094

Unavailable

30

Carbon Black, RH Lower Suspension Arm

706201991

$158.99

30

RH Lower Arm | Model Jet Black

706203095

$158.99

50

Ball Joint

706202507

$61.99

60

Circlip

293370035

$2.64

70

Hex. Flange Screw M10 X 55

207605554

$7.62

80

Flange Elastic Nut M10

233201466

$3.17

90

Ball Joint

706202508

$42.49

100

Suspension Arm Bushing

706201519

$13.76

110

Hex. Flange Screw M10 X 70

207607056

$4.29

120

Flange Elastic Nut M10

233201466

$3.17

130a

Shock

706001697

$137.49

130b

Spring

706002451

$62.49

130c

Spring Stopper

706200881

$12.99

130d

Cap

706200785

$4.69

130e

Adjuster Ass'y

706002480

$55.99

140

Hex. Flange Screw M10 X 55

207605554

$7.62

150

Flange Elastic Nut M10

233201466

$3.17

160

Sway Bar

706202799

$90.99

170

Bushing

706201429

$10.01

190

Hex. Flange Screw M6 X 60

250000778

$4.44

200

Hex. Flange Elastic Nut M6

233261466

$2.00

210

Tie Rod

706200671

$20.99

220

Hex. Flange Screw M8 X 40

207684054

$2.11

230

Elastic Flange Nut M8

233281464

$1.01

240

Cable Cap

706201842

$13.99

250

RH Cable Cap

706201843

$13.99

260

Pop Rivet 3/16"

293150103

$0.55
