Description

Price

10

Vegas White Pearl, Bumper Cover | Model-White

705007555

$423.99

10

Ivory Bumper Cover | Ivory Model

708200535

$423.49

10

Bare, Bumper Cover | Model-Steel Black Met

705004576

$190.49

10

Asphalt Gray, Bumper Cover | Grey Model

708200705

$423.99

20

Tuflok Plastic Rivet

293150230

$1.47

50

Black Bumper Moulding

705007104

$134.99

160

Deep Black, LH Front Wing | Model-RT STD

705004577

$134.99

160

Front Wing LH, Chrome | Model-RT LTD

705007344

$129.99

160

TRIM_BUMPER UP L PLATINUM CHROME - Call your local BRP dealership | Model-RT S

705007443

$114.99

160

Deep Black, RH Front Wing | Model-RT STD

705004578

$134.99

160

Front Wing RH, Chrome | Model-RT LTD

705007345

$129.99

160

TRIM_BUMPER UP R PLATINUM CHROME - Call your local BRP dealership | Model-RT S

705007444

Unavailable

180

Torx-Truss Pt K40 X 16

250000759

$2.11

190

Tuflok Plastic Rivet

293150230

$1.47

200

LH Front Deflector

705007067

$19.99

200

RH Front Deflector

705007068

$19.99

220

Torx Screw M6 X 20

250000722

$1.68

225

Panel Nut M6 X 1.0

250100198

$2.11

230

Front Wing Moulding LH

705007305

$45.99

230

Front Wing Moulding RH

705007306

$45.99

300

Vegas White Pearl, Hood | Model-White

705006149

$629.99

300

Ivory Hood | Ivory Model

708200536

$539.99

300

Asphalt Gray, Hood | Grey Model

708200583

$539.99

300

Orbital Blue Hood Replacement Kit | Model with Color Orbital Blue

219800221

$539.99

320

Néoprene Pad

705006824

$7.39

330

Neoprene Seal 3000Mm Long

219704371

$51.99

440

Hood Arm

705003248

$54.99

450

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

460

Hood Pivot

705005434

$17.49

470

Spacer

705003322

$27.99

480

Hex. Screw M6 X 110

230061034

$2.11

490

Flange Elastic Nut M6

233261434

$4.44

500

Torx Screw M6 X 20

250000722

$1.68

510

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

590

Lower Air Duct LH

705004579

$88.99

590

Lower Air Duct RH

705004580

$88.99

610

Rear Air Duct LH

705005859

$88.99

610

Rear Air Duct, RH

705005860

$88.99

630

Radiator Grille

705008132

$52.99

640

Torx Screw M6 X 20

250000722

$1.68

650

Panel Nut M6 X 1.0

250100198

$2.11

670

Tuflok Plastic Rivet

293150230

$1.47

680

Torx Screw M6 X 20

250000722

$1.68

690

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

800>800c

Storage Box Ass'y

705007219

$489.99

800a

Dual Lock Velcro Washer 3/4"

293740028

$4.19

800b

Rivet

390401400

$0.53

800c

Flat Washer 3 mm, Stainless Steel

234031600

$0.55

810

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.49

820>820a

Battery Cover Ass'y | Includes 130 to 130c

705018040

$29.99

820a

Dual Lock Velcro Washer 3/4"

293740028

$4.19

830

Torx Truss Screw M6 X 12

250000767

$2.00

870

External Serrated Lock Washer 6 mm

234461608

$1.15

880

Latch Ass'Y

705009310

$104.99

890

Hex. Flange Elastic Nut M6

233261494

$1.58

900a

Actuator Bracket | Model-RT LTD

705003691

$26.99

900b

Position Sensor | Model-RT LTD

710001861

$21.99

900c

Switch Protector Plate | Model-RT LTD

705005845

$9.49

920

Bushing

705004513

$10.49

930

Hood Guide

705004468

$11.99

940

Torx Screw K50 X 16

250000720

$1.69

970

Hood Cable

517305460

$44.99

1020

Rubber Bumper

293830005

$8.09

1030

Skid Plate

705002837

$68.99

1035

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1040

Torx Screw M6 X 25 | XT Models

250000728

$4.44

1050

Panel Nut M6 X 1.0

250100198

$2.11

1060

Torx Screw M6 X 25 | XT Models

250000728

$4.44

1070

Panel Nut M6 X 1.0

250100198

$2.11

1130

FRONT TRUNK LINER - Call your local BRP dealership | Model-RT LTD

219400368

Unavailable

1140

Holding Strap

705004357

$27.99

1150

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

1280

Vegas White Pearl, LH Front Panel | Model-White

708200636

$309.99

1280

Ivory LH Front Panel | Ivory Model

708200650

$259.99

1280

Orbital Blue LH Front Panel | Model with Color Orbital Blue

708200654

$259.99

1280

Asphalt Gray, LH Front Panel | Grey Model

708200706

$259.99

1280

Vegas White Pearl, RH Front Panel | Model-White

708200637

$309.99

1280

Ivory RH Front Panel | Ivory Model

708200651

$259.99

1280

Orbital Blue RH Front Panel | Model with Color Orbital Blue

708200655

$259.99

1280

Asphalt Gray, RH Front Panel | Grey Model

708200707

$259.99

1320

Tuflok Plastic Rivet

293150230

$1.47

1360

Hex. Flange Screw M6 X 20

207662044

$2.00

1370

Panel Nut M6 X 1.0

250100198

$2.11

1380>1380a

Air Duct Ass'y, LH | Model-RT STD North America

705003703

$89.99

1380>1380a

Air Duct Ass'y RH | Model-RT STD North America

705003706

$89.99

1380a

Clip

414479100

$1.90

1400

Edge Clip

517302785

$0.88

5655

Rubber Stopper

708000759

$4.19

7530

Service Center Access Panel LH

705002839

$33.99

7530

Service Center Access Panel RH

705005903

$33.99

7540

Hexagonal Head Screw

210262050

$2.11

7550

Hex. Flange Screw M6 X 20

207662044

$2.00

7560

Torx Truss Screw M6 X 20

250000350

$5.29

7570

Plastic Washer

705003207

$0.80

7580

Tuflok Plastic Rivet

293150230

$1.47

7590

Edge Clip

517302785

$0.88

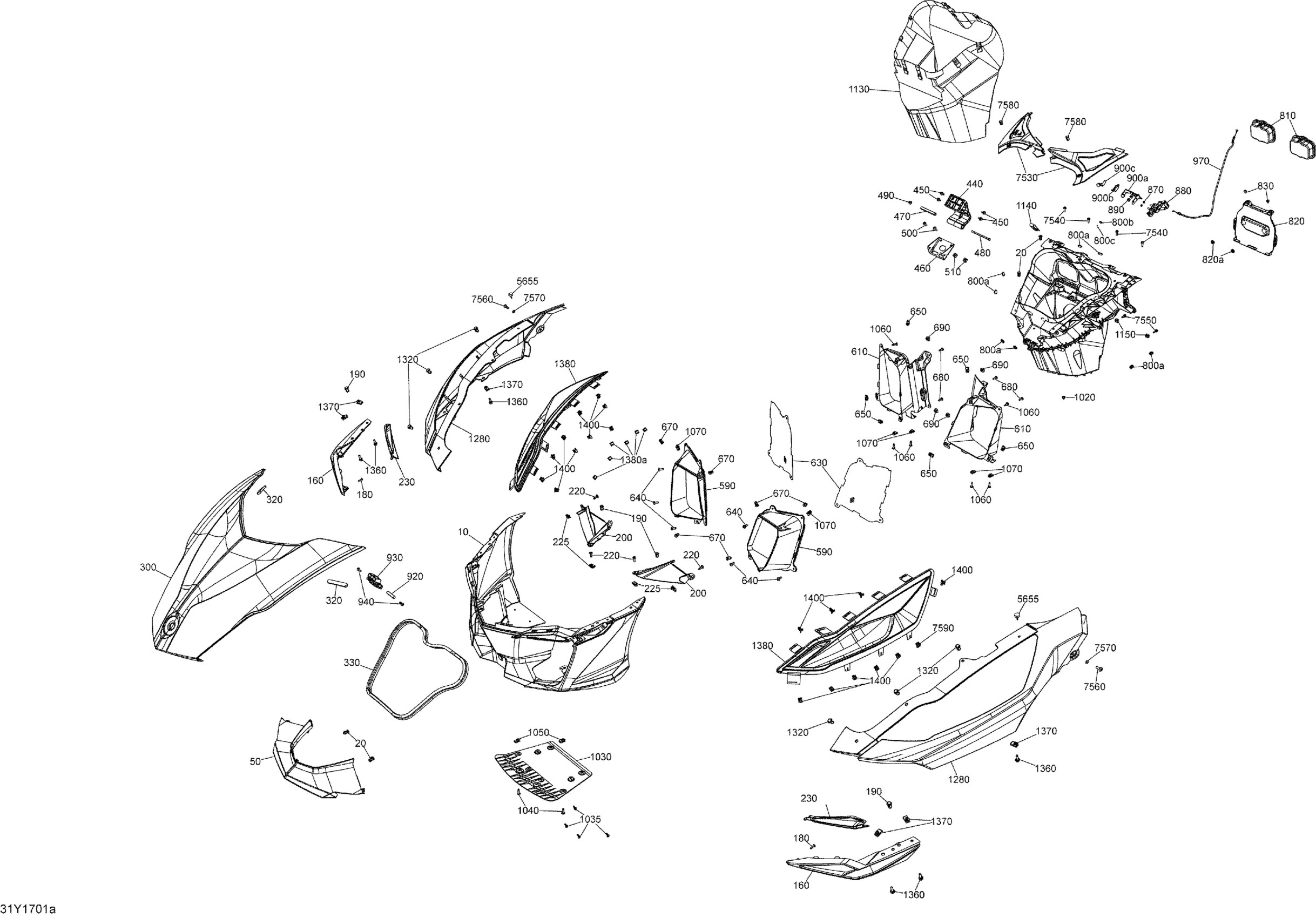

Can-Am RT, 2017 09- Body And Accessories - Front Storage Diagram
