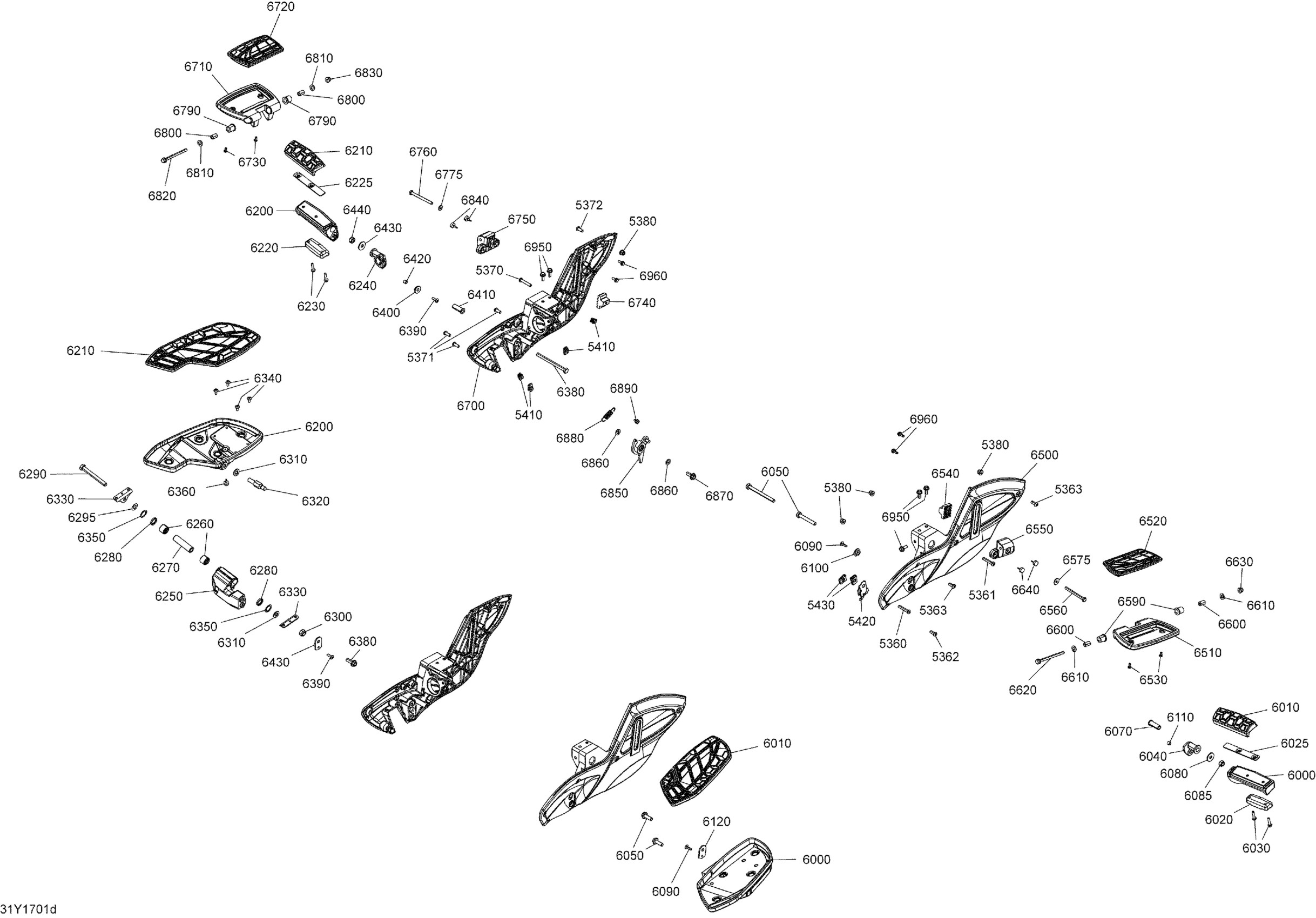

Can-Am RT, 2017 09- Body And Accessories - Footrest - All Models Diagram

Socket Screw M8 X 45

205484560

$2.11

Socket Screw M8 X 45

205484560

$2.11

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

Socket Screw M8 X 45

205484560

$2.11

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

Socket Head Screw M8 X 20 | DS 650 X

205482060

$2.22

Hex. Flange Elastic Nut M8

233281434

$2.11

Panel Nut M8

250100111

$4.29

Panel Support

705007375

$39.99

Panel Nut M8 X 1.25

250100069

$4.29

Silver LH Front Footrest | Model-RT STD

705004709

$61.99

Black Carbon Front Footrest LH | Model-RT S SE6

705005729

$199.99

CHROME LH FRONT FOOTREST - Call your local BRP dealership | Model-RT LTD SE6

705006390

Unavailable

Black LH Front Footrest | Model-RT S SM6

705006833

$61.99

LH Front Footboard Pad | Model-RT LTD SE6

705005731

$99.99

LH Front Footpeg Pad | Model-RT STD

705003732

$39.99

Vibration Dampener | Model-RT STD

705003730

$48.99

Front Pad Plate | Model-RT STD

705003731

$17.99

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

LH Rubber Bushing | Model-RT STD

705003616

$8.49

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

Hex. Screw M10 X 115 | Model-RT STD SM6

230001586

$7.51

Inner Bushing | Model-RT STD

706201151

$20.99

Flat Washer 10 mm, Stainless

234002600

$2.22

Elastic Stop Nut M10

232500416

$1.90

Torx Screw M6 X 20

250000722

$1.68

Grommet

705003932

$2.89

Bushing

709000162

$13.76

Retaining Plate | Model-RT LTD SE6

705006557

$10.49

Silver RH Front Footrest | Model-RT STD

705004711

$61.99

RH FRONT FOOTREST - Call your local BRP dealership | Model-RT S SE6

705005726

Unavailable

Chrome RH Front Footrest | Model-RT LTD SE6

705006392

$389.99

Black RH Front Footrest | Model-RT S SM6

705006836

$61.99

RH Front Footboard Pad | Model-RT LTD SE6

705005728

$99.99

RH Front Footpeg Pad | Model-RT STD

705003245

$39.99

Vibration Dampener | Model-RT STD

705003730

$48.99

Front Pad Plate | Model-RT STD

705003731

$17.99

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

RH Rubber Bushing | Model-RT STD

705003615

$6.99

Pivot Support | Model-RT LTD SE6

705005723

$93.99

Bearing

706000447

$12.69

Bushing

706000731

$15.82

Seal, Single Lip ID 19.4 OD 26

706000448

$12.99

Hexagonal Screw M12 X 105

230020586

$7.51

Hardened Washer

706200281

$2.85

Elastic Stop Nut M12

232521416

$1.69

Flat Washer

234021430

$2.11

Latch Pin M12 X 30 | Model-RT LTD SE6

705006428

$27.99

Pivot Bracket | Model-RT LTD SE6

705005861

$20.99

Torx Head Screw M6 X 16

250000717

$2.11

Plastic Washer 20MM | Model-RT LTD SE6

250200136

$8.25

Rubber Stopper

708000759

$4.19

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

Torx Screw M6 X 20

250000722

$1.68

Grommet

705003932

$2.89

Inner Bushing | Model-RT STD

706201151

$20.99

Bushing

709000162

$13.76

Flat Washer 10 mm, Stainless

234002600

$2.22

Retaining Plate | Model-RT LTD SE6

705006557

$10.49

Elastic Stop Nut M10

232500416

$1.90

Black LH Footrest Support | Model-RT S SE6

705005714

$409.99

Chrome LH Footrest Support | Model-RT LTD SE6

705006395

$859.99

Silver LH Footrest Support | Package STD

705011148

Unavailable

Black LH Footrest Support | Package S SM6

705011149

$409.99

SILVER REAR FOOTREST - Call your local BRP dealership | Model-RT STD

705008530

Unavailable

Chrome, Rear Footboard | Model-RT LTD SE6

705011154

$224.99

Carbon Black, Rear Footrests | Model-RT S

705011155

$134.99

LH Rubber Rear Pad

705007461

$49.99

Allen Plastite Screw #12

250000099

$2.19

Adjuster Block

705003013

$43.99

Chrome Sliding Block | Model-RT LTD SE6

705008515

$154.99

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$58.99

Crystal Sliding Block | Model-RT STD

705008518

$48.99

Hex. Screw M8 x 90

207189060

$3.49

Spring Washer M8

234281704

$2.11

Rubber Bushing

705003018

$10.49

Bushing

705002153

$11.99

Washer

503183800

$3.28

Hex. Flange Screw M8 X 110

230681034

$4.44

Hex. Flange Elastic Nut M8

233281434

$2.11

Rubber Stopper

708000759

$4.19

Black RH Footboard Support | Model-RT S SE6

705007972

$379.99

Black RH Footrest Support | Package S SM6

705011152

$409.99

Chrome, RH Footrest Support | Model-RT LTD SE6

705013491

$819.99

Silver RH Footrest Support | Package STD

705011151

Unavailable

SILVER REAR FOOTREST - Call your local BRP dealership | Model-RT STD

705008530

Unavailable

Chrome, Rear Footboard | Model-RT LTD SE6

705011154

$224.99

Carbon Black, Rear Footrests | Model-RT S

705011155

$134.99

RH Rubber Rear Pad

705007472

$48.99

Allen Plastite Screw #12

250000099

$2.19

Adjuster Block

705003013

$43.99

Chrome Sliding Block | Model-RT LTD SE6

705008515

$154.99

BLOCK_SLIDING PAINTED B-322-TX | Includes 230 to 230b

548875375

$58.99

Crystal Sliding Block | Model-RT STD

705008518

$48.99

Hex. Screw M8 x 90

207189060

$3.49

Spring Washer M8

234281704

$2.11

Rubber Bushing

705003018

$10.49

Bushing

705002153

$11.99

Washer

503183800

$3.28

Hex. Flange Screw M8 X 110

230681034

$4.44

Hex. Flange Elastic Nut M8

233281434

$2.11

Rubber Stopper

708000759

$4.19

Latch Ass'y | Model-RT LTD SE6

705006014

$239.99

Washer

503183800

$3.28

Hex. Flange Screw M10 X 25

207502546

$2.11

Spring

705006533

$18.49

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19

Hex Screw Washer Head M8 X 20

207582054

$3.17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90
