Description

Price

10a

RH Air Intake Silencer | Includes 10a1 to 10a1f

707800488

$54.99

10b

Hex. Screw M4.8 X 1.8

243141680

$4.86

10c

Air Intake Adaptor

707800388

$33.99

10d

Tie Rap

509000165

$2.11

10e

Breather Valve

273000234

$14.49

10f

Rubber Stopper

707800452

$7.69

10g

Cap Plug

293000105

$4.39

10h

Spring Clamp

414554800

$0.88

10j

LH Air Intake Silencer | Includes 10b1 to 10b1c

707800489

$54.99

10k

Intake Adaptor

707800485

$31.99

10m

Ring

707800525

$16.99

10n

Rubber Stopper

707800452

$7.69

10p

Tie Rap

509000165

$2.11

10q

Panel Nut M6 X 1.0

250100198

$2.11

10r

Air Filter

707800483

$47.49

10s

O-ring

707800455

$7.94

10t

Cap

707800484

$19.49

10u

Torx Truss Screw M6 X 16

250000348

$2.11

10v

Link Rod | Includes 10k to 10k1

707800432

$24.49

10w

Tie Rap

509000165

$2.11

50

Hex. Flange Screw M6 X 20

207662044

$2.00

60

Panel Nut M6 X 1.0

250100198

$2.11

70

Hex. Flange Screw M6 X 20

207662044

$2.00

80

Panel Nut M6 X 1.0

250100198

$2.11

130

Gemi Clamp

508000346

$10.33

140

Formed Hose

707800824

$18.99

145

Tridon Gear Clamp

293650173

$3.09

180

Adapter

707800389

$28.99

190

Tie Rap

509000165

$2.11

310

Acoustic Support

707800562

$44.99

320

LH REAR FOAM - Call your local BRP dealership

707800353

Unavailable

330

LH Front Foam

707800356

$18.49

340

RH REAR FOAM - Call your local BRP dealership

707800354

$15.49

350

RH FOAM - Call your local BRP dealership

707800563

Unavailable

360

Tuflok Plastic Rivet

293150230

$1.47

370

Oval Washer

705000321

$5.61

400

LH ACOUSTIC SHELL - Call your local BRP dealership

707800696

Unavailable

400

RH ACOUSTIC SHELL FOAM - Call your local BRP dealership

707800338

Unavailable

450

ACOUS SHELL RH - Call your local BRP dealership

707800697

$35.99

450

LH ACOUSTIC SHELL FOAM - Call your local BRP dealership

707800339

Unavailable

500

Rubber Stopper

708000759

$4.19

510

Torx Screw M6 X 25

250000758

$2.11

550

LH Acoustic Shell

707800413

$25.99

560

RH Center Acoustic Shell

707800340

$25.99

570

TRIM 3000MM LONG - Call your local BRP dealership

219704351

Unavailable

580

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

590

Center Bellows

707800343

$31.99

600

Air Inlet Valve

707800477

$18.99

610

Tuflok Plastic Rivet

293150230

$1.47

615

Norma Clamp

514052924

$14.22

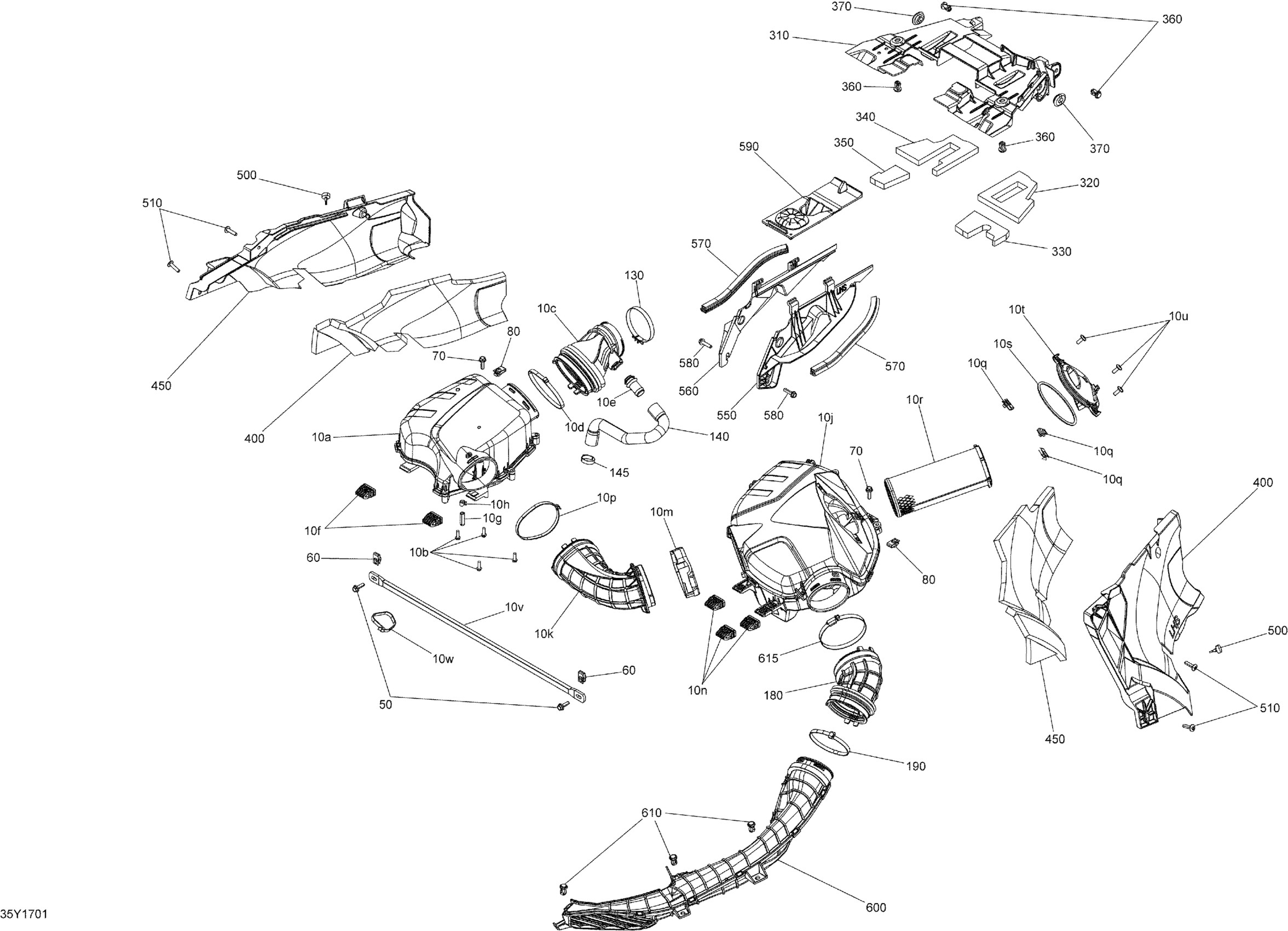

Can-Am RT, 2017 02- Air Intake - All Models Diagram

RH Air Intake Silencer | Includes 10a1 to 10a1f

Hex. Screw M4.8 X 1.8

Air Intake Adaptor

Tie Rap

Breather Valve

Rubber Stopper

Cap Plug

Spring Clamp

LH Air Intake Silencer | Includes 10b1 to 10b1c

Intake Adaptor

Ring

Rubber Stopper

Tie Rap

Panel Nut M6 X 1.0

Air Filter

O-ring

Cap

Torx Truss Screw M6 X 16

Link Rod | Includes 10k to 10k1

Tie Rap

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Gemi Clamp

Formed Hose

Tridon Gear Clamp

Adapter

Tie Rap

Acoustic Support

LH REAR FOAM - Call your local BRP dealership

LH Front Foam

RH REAR FOAM - Call your local BRP dealership

RH FOAM - Call your local BRP dealership

Tuflok Plastic Rivet

Oval Washer

LH ACOUSTIC SHELL - Call your local BRP dealership

RH ACOUSTIC SHELL FOAM - Call your local BRP dealership

ACOUS SHELL RH - Call your local BRP dealership

LH ACOUSTIC SHELL FOAM - Call your local BRP dealership

Rubber Stopper

Torx Screw M6 X 25

LH Acoustic Shell

RH Center Acoustic Shell

TRIM 3000MM LONG - Call your local BRP dealership

Hex. Flange Forming Screw M6 X 25

Center Bellows

Air Inlet Valve

Tuflok Plastic Rivet

Norma Clamp
