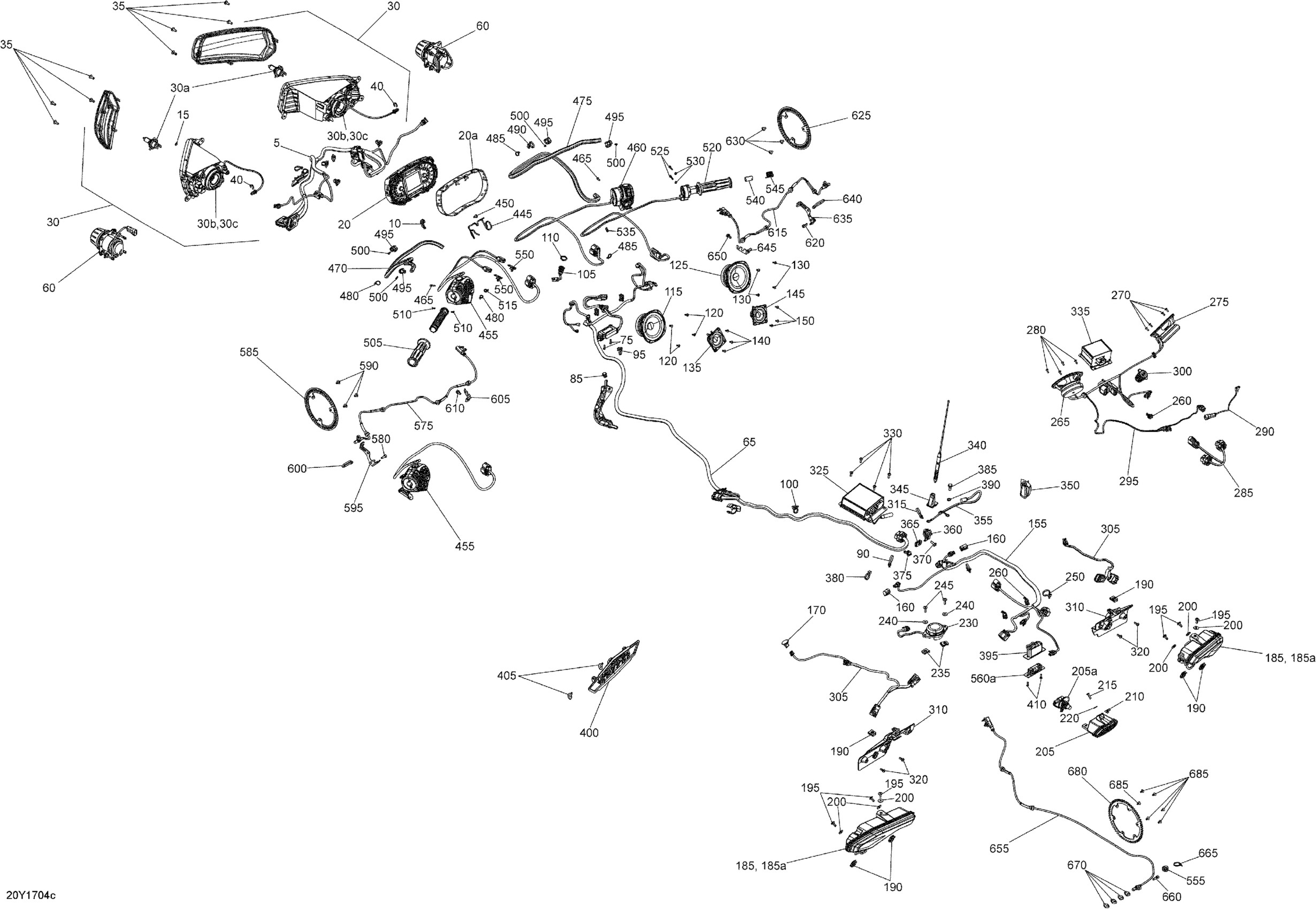

Can-Am F3, 2017 10- Electrical System - Upper - T, LTD Diagram

WIRING HARNESS_CONSOLE - Call your local BRP dealership | Includes 1 To T4

710004603

Unavailable

Harness, Console | Includes 1 To T4

710004604

$109.99

Clip Tie-Rap

293750063

$8.75

Push Nut

250100034

$1.29

Speed Prog | Includes 481 à 482

710005871

$1,139.99

Lens | XTP

415129349

$24.49

LH Headlamp

710004701

$239.99

RH Headlight | Includes 0d to 0d3

710006998

$239.99

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Rubber Cap Protector

219800280

$19.49

Spring

219800281

$3.49

E-Circlip

293370013

$0.65

LH Low Beam | Europe, Brazil

710004150

$439.99

LH Low Beam | Australia, Japan

710004152

$449.99

RH Low Beam | Europe, Brazil

710004151

$449.99

RH Low Beam | Australia, Japan

710004153

$449.99

RADIO HARNESS - Call your local BRP dealership | Includes 1 To USB-AUX

710004607

Unavailable

Flange Torx Screw K40 X 16

250000287

$2.11

Tuflok Plastic Rivet

293150230

$1.47

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Switch

710004598

$132.49

Nut

710004108

$6.14

WOOFER SPEAKER - Call your local BRP dealership

710004437

Unavailable

Torx Truss Screw K40 X 12

250000577

$2.11

WOOFER SPEAKER - Call your local BRP dealership

710004437

Unavailable

Torx Truss Screw K40 X 12

250000577

$2.11

Mid Speaker

710004438

$121.99

Torx Truss Screw K40 X 12

250000577

$2.11

Mid Speaker

710004438

$121.99

WIRING HARNESS REAR - Call your local BRP dealership | Package T Man. Date Aug 1rst 2016 And Up

710005203

$84.99

WIRING HARNESS REAR - Call your local BRP dealership | Includes 1 to T2

710004605

Unavailable

Connector Plug | Includes 10h to 10h1

710004900

$15.87

Cap

708400046

$3.89

LH Tail Light | Includes 0k to 0k1

710007002

$158.99

RH Tail Light | Includes 0m to 0m1

710007004

$158.99

Bulb 12V/10W, Amber

219800039

$5.29

Flasher Bulb

219800304

$6.66

Panel Nut M6 X 1.0

250100208

$1.46

Torx Head Screw M6 X 16

250000717

$2.11

Flat washer M6

250200164

$1.01

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

Bulb 12V 10W

219800322

$8.68

Panel Nut M5 X 0.8

250100176

$4.09

Torx Truss Screw M5 X 20

250000715

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Passenger Detection Switch

710008103

$76.99

Panel Nut M6 X 1.0

250100208

$1.46

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

Clip Tie-Rap

710002899

$8.49

WOOFER SPEAKER - Call your local BRP dealership

710004437

Unavailable

Torx Truss Screw K40 X 12

250000577

$2.11

WOOFER SPEAKER - Call your local BRP dealership

710004437

Unavailable

Torx Truss Screw K40 X 12

250000577

$2.11

Amplificator Harness | Package LTD

710005205

$66.99

Open Detection

710005315

$18.54

Screw-pt.flange Oval Hd.k30 X 12

250000614

$0.56

Cargo Upper Harness | Package LTD

710005357

$38.99

LH Cargo Harness

710004608

$27.99

RH Cargo Harness

710004609

$27.99

LH Connector Support

710004643

$12.99

RH Connector Support

710004644

$11.49

Tie-Rap 180 mm

414115200

$0.11

Torx Screw K50 X 16

250000720

$1.69

Radio Module

710005183

$709.99

Torx Screw K50 X 16

250000720

$1.69

AMPLIFIER ASSEMBLY - Call your local BRP dealership | Package LTD

710005172

Unavailable

Short Antenna

710005084

$77.49

Antenna Cap

708302051

$25.99

Antenna Support

710003248

$58.99

ANTENNA CABLE ASSEMBLY - Call your local BRP dealership

710004610

Unavailable

Antenna Cable Ass'y. | Package LTD

710005252

$55.99

Antenna Support | Includes 0ah to 0ah1

708301797

$13.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Clip Tie-Rap

293750063

$8.75

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Washer

250200111

$2.11

License Light | Includes 0an to 0an1

710001451

$76.49

Rear Light

520001143

$99.49

Non-fonctional Rear Tail-light

520001785

$121.99

Screw M4 X 16

250000725

$3.49

Flange Torx Screw K40 X 16

250000287

$2.11

Wire Guide

709401619

$15.49

Torx Screw M5 X 14

250000742

$1.47

LH Housing Switch | SM6

710003937

$549.99

Housing Switch | SE6

710004731

$569.99

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

Braided Sleeve

710004231

$38.99

Braided Sleeve

710004231

$38.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Rap

293750074

$1.29

Wire Guide

709401804

$3.09

Torx Cutting Screw, M4 X 10

250000453

$3.89

Heating Handle Grip

709400625

$195.99

Handle Grip

709401054

$86.99

Torx Cutting Screw, M4 X 10

250000453

$3.89

Tie Wrap 94 mm | 4X4

293750001

$1.03

Heated Throttle Grip

709402720

$289.99

Throttle Handle Grip | RS

709401055

$249.99

Socket Screw, M4 X 25

205042594

$2.11

Flat Washer 4 mm

234040600

$0.55

Tie Wrap 94 mm | 4X4

293750001

$1.03

Bushing

709401801

$2.53

Spring

709401937

$19.99

Housing Support

515175283

$9.19

Grommet

293720084

$6.09

Bulb 12V 10W | Not Shown

415129261

$2.46

Kit Speed Sensor

219800456

$86.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Front Sensor Wheel

705601512

$43.99

Torx-truss M/s M6 X 10

250000995

$4.44

LH Support Wire

710004860

$2.29

Tie-Rap 180 mm

414115200

$0.11

Speed Sensor Holder

710003156

$11.49

Hex. Flange Screw M6 X 12

210261250

$1.90

Kit Speed Sensor

219800456

$86.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Front Sensor Wheel

705601512

$43.99

Torx-truss M/s M6 X 10

250000995

$4.44

RH Support Wire

710004861

$2.29

Tie-Rap 180 mm

414115200

$0.11

Speed Sensor Holder

710003157

$11.49

Hex. Flange Screw M6 X 12

210261250

$1.90

Speed Sensor

706202361

$164.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Tie Wrap 94 mm | 4X4

293750001

$1.03

Shim

710002023

$2.85

Sensor Wheel

705601372

$46.99

Socket Head Screw M5 X 10

205851036

$6.77
