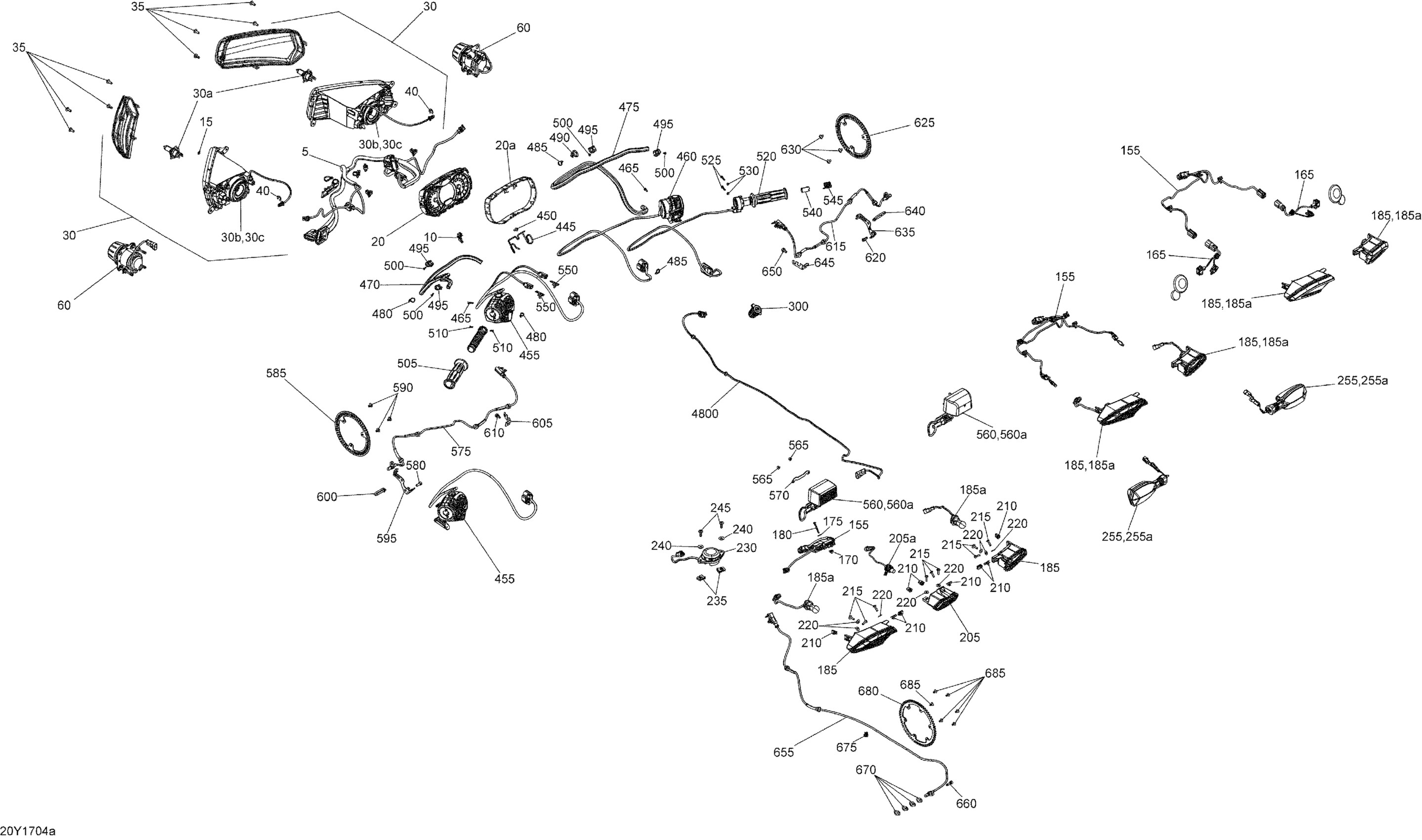

Can-Am F3, 2017 10- Electrical System - Upper - Package STD-S Diagram

Dashboard Harness

710004986

$109.99

Dashboard Harness | Europe

710004987

$109.99

Clip Tie-Rap

293750063

$8.75

Push Nut

250100034

$1.29

Speed Prog

710005113

$979.99

Speed Prog | Includes 481 à 482

710005871

$1,139.99

Lens | XTP

415129349

$24.49

LH Headlamp

710004701

$239.99

RH Headlight | Includes 0d to 0d3

710006998

$239.99

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Rubber Cap Protector

219800280

$19.49

Spring

219800281

$3.49

Torx Truss Screw M6 X 16

250000721

$1.69

E-Circlip

293370013

$0.65

LH Low Beam | Europe, Brazil

710004150

$439.99

LH Low Beam | Australia, Japan

710004152

$449.99

RH Low Beam | Europe, Brazil

710004151

$449.99

RH Low Beam | Australia, Japan

710004153

$449.99

Rear Box Wiring Harness

710007697

$194.99

WIRING HARNESS REAR - Call your local BRP dealership | Europe, Australia, Brazil

710004962

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership | Japan

710004963

Unavailable

TAIL-STOP-FLASHER-LIGHTS ADAPTER - Call your local BRP dealership | Japan

710005121

Unavailable

Cap

708400046

$3.89

Flat Washer 4 mm, Stainless

234041600

$1.15

Hex. Screw M4 X 40

207144060

$4.44

LH Rear Flasher | Except Japan

710003707

$58.49

RH Rear Flasher | Except Japan

710003708

$61.49

Tail Light LH

710004396

$28.99

Tail Light RH

710004397

$28.99

Flasher Bulb

219800304

$6.66

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

Bulb 12V 10W

219800322

$8.68

Panel Nut M5 X 0.8

250100176

$4.09

Torx Truss Screw M5 X 20

250000715

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Passenger Detection Switch

710008103

$76.99

Panel Nut M6 X 1.0

250100208

$1.46

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Rear Flasher | Europe, Australia, Brazil

710004400

$81.49

Bulb 12V 21W | Not Shown

715900043

$16.65

USB Outlet

219400510

$42.99

Wire Guide

709401619

$15.49

Torx Screw M5 X 14

250000742

$1.47

LH Housing Switch | SM6

710003937

$549.99

Housing Switch | SE6

710004731

$569.99

RH Switch Housing

710004582

$569.99

RH Switch Housing | Included 5d to 5d1

710004583

$309.99

Socket Screw, M4 X 16 Scotch Grip

250000494

$2.11

Braided Sleeve

710004231

$38.99

Braided Sleeve

710004231

$38.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Rap

293750074

$1.29

Wire Guide

709401804

$3.09

Torx Cutting Screw, M4 X 10

250000453

$3.89

Handle Grip

709401054

$86.99

Torx Cutting Screw, M4 X 10

250000453

$3.89

Throttle Handle Grip | RS

709401055

$249.99

Socket Screw, M4 X 25

205042594

$2.11

Flat Washer 4 mm

234040600

$0.55

Bushing

709401801

$2.53

Spring

709401937

$19.99

License Plate Light

710003348

$70.99

License Plate Light

710003349

$70.99

Bulb 12V 10W | Not Shown

415129261

$2.46

Elastic Flange Nut M5

233251494

$2.11

Plate

710004815

$18.49

Kit Speed Sensor

219800456

$86.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Front Sensor Wheel

705601512

$43.99

Torx-truss M/s M6 X 10

250000995

$4.44

LH Support Wire

710004860

$2.29

Tie-Rap 180 mm

414115200

$0.11

Speed Sensor Holder

710003156

$11.49

Hex. Flange Screw M6 X 12

210261250

$1.90

Kit Speed Sensor

219800456

$86.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Front Sensor Wheel

705601512

$43.99

Torx-truss M/s M6 X 10

250000995

$4.44

RH Support Wire

710004861

$2.29

Tie-Rap 180 mm

414115200

$0.11

Speed Sensor Holder

710003157

$11.49

Hex. Flange Screw M6 X 12

210261250

$1.90

Speed Sensor

706202361

$164.99

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Shim

710002023

$2.85

Cable Support

710004279

$4.19

Sensor Wheel

705601372

$46.99

Socket Head Screw M5 X 10

205851036

$6.77

Tail Harness

710004455

$25.99
