Description

Price

1700a

Bare, LH Front Fender | Model-Circuit Yellow Met

705004801

$194.99

1700a

White LH Front Fender | Model-Vegas White Pearl

705006509

$204.99

1700a

Metallic Black Front Fender LH | Model-RS S

705006908

$204.99

1700a

Metallic Magnesium Front Fender RH

705006501

$309.99

1700a

Vegas White RH Front Fender | Model-Vegas White Pearl

705006510

$309.99

1700a

Metallic Black Front Fender RH | Model-RS S

705006909

$309.99

1700a

Red Front Fender RH | Model-Intense Red Pearl

705012643

$309.99

1700b

LH Front Support | Except STD

705011297

$38.99

1700b

RH Front Support | Except STD

705011301

$36.99

1700c

Hex. Flange Screw M6 X 16

210261650

$1.67

1700d

Flat washer M6

250200164

$1.01

1700e

LH Support | Model-RS S

219800414

$86.99

1700e

Hex. Flange Screw M6 X 16

210261650

$1.67

1700e

RH.SUPPORT - Call your local BRP dealership | Except STD

705011302

$23.49

1700f

Flat washer M6

250200164

$1.01

1700f

Hex. Flange Screw M6 X 16

210261650

$1.67

1700g

Metal. Magnesium Frt Fender Moulding LH

705006513

$204.99

1700g

White Front Fender Moulding LH | Model-Vegas White Pearl

705006520

$204.99

1700g

Carbone Black Front Fender Moulding LH | Model-RS S

705006912

$204.99

1700g

Bare, LH Fender | Model-Intense Red Pearl

705005407

$88.99

1700g

Flat washer M6

250200164

$1.01

1700h

Panel Nut M5 X 0.8

250100176

$4.09

1700h

Metal. Magnesium Frt Fender Moulding RH

705006514

$204.99

1700h

Bare, RH Fender | Model-Vegas White Pearl

705005408

$88.99

1700h

Carbone Black Front Fender Moulding RH | Model-RS S

705006913

$204.99

1700h

Red Front Fender Moulding RH | Model-Intense Red Pearl

705008743

$204.99

1700h

Red Front Fender Moulding RH | Red. Manufactured Date Aug 1rst 2016 And Up

705012644

$204.99

1700h

Steel Black RH Front Fender Moulding | Model-Steel Black Met

705008747

$204.99

1700j

Torx Screw M5 X 20

250000724

$1.69

1700j

Panel Nut M5 X 0.8

250100176

$4.09

1700k

Plastite Screw M4 X 10

250000805

$2.11

1700k

Torx Screw M5 X 20

250000724

$1.69

1700m

Yellow LH Reflector | Model-RS S

705008661

$30.99

1700m

Plastite Screw M4 X 10

250000805

$2.11

1700n

Pressure Nut

250100163

$0.98

1700n

Yellow RH Reflector | Model-RT LTD

705008662

$30.99

1700p

LH Position Light

710004032

$83.49

1700p

Pressure Nut

250100163

$0.98

1700q

Plastite Screw M4 X 10

250000805

$2.11

1700q

RH Position Light

710004033

$83.49

1700r

Tie Wrap 142 mm

293750002

$1.25

1700r

Plastite Screw M4 X 10

250000805

$2.11

1700s

LH Rear Reflector | Model-RS S North America

705005667

$30.99

1700s

Tie Wrap 142 mm

293750002

$1.25

1700t

LH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

219800275

$15.49

1700t

RH Rear Reflector | Model-RS S North America

705005949

$30.99

1700t

RH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

219800276

$15.49

1700u

LH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

219800275

$15.49

1700u

RH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

219800276

$15.49

1700v

Pressure Nut

250100163

$0.98

1700w

LH Inner Fender | Model-RS S

705007616

$56.99

1700w

RH Inner Fender | Model-RS S

705007617

$56.99

1700x

Plastite Screw M4 X 10

250000805

$2.11

1700y

Torx Screw M6 X 14

250000851

$2.11

1700z

Flat washer M6

250200164

$1.01

1800a

Bare, LH Front Fender | Model-RS STD Steel Black Met.

705003413

$194.99

1800a

RH Front Fender, Steel Black | Model-RS STD Steel Black Met.

705004616

$309.99

1800b

LH Painted Fender Front Support | Model-RS STD

705010102

$86.99

1800b

RH Painted Fender Front Support | Model-RS STD

705010103

$86.99

1800c

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

1800d

Panel Nut M6 X 1.0

250100198

$2.11

1800e

Hex. Flange Screw M6 X 20

207662054

$1.01

1800f

LH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership

705010100

$76.99

1800f

RH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership

705010101

Unavailable

1800g

Hex. Flange Screw M6 X 20

207662054

$1.01

1800h

Central Front Fender Support | Model-RS STD

705002389

$62.99

1800k

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

1800m

LH Mudguard | Model-RS STD

705001767

$51.99

1800m

RH Mudguard | Model-RS STD

705001768

$51.99

1800n

Reflective Stripe

704901160

$10.99

1800p

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

1800q

Position Light | STD Model

710003295

$62.49

1800r

Tie Wrap 142 mm

293750002

$1.25

1800s

Amber, Lateral Reflector

705002423

$15.49

2000

Hex Screw Washer Head M8 X 20

207582054

$3.17

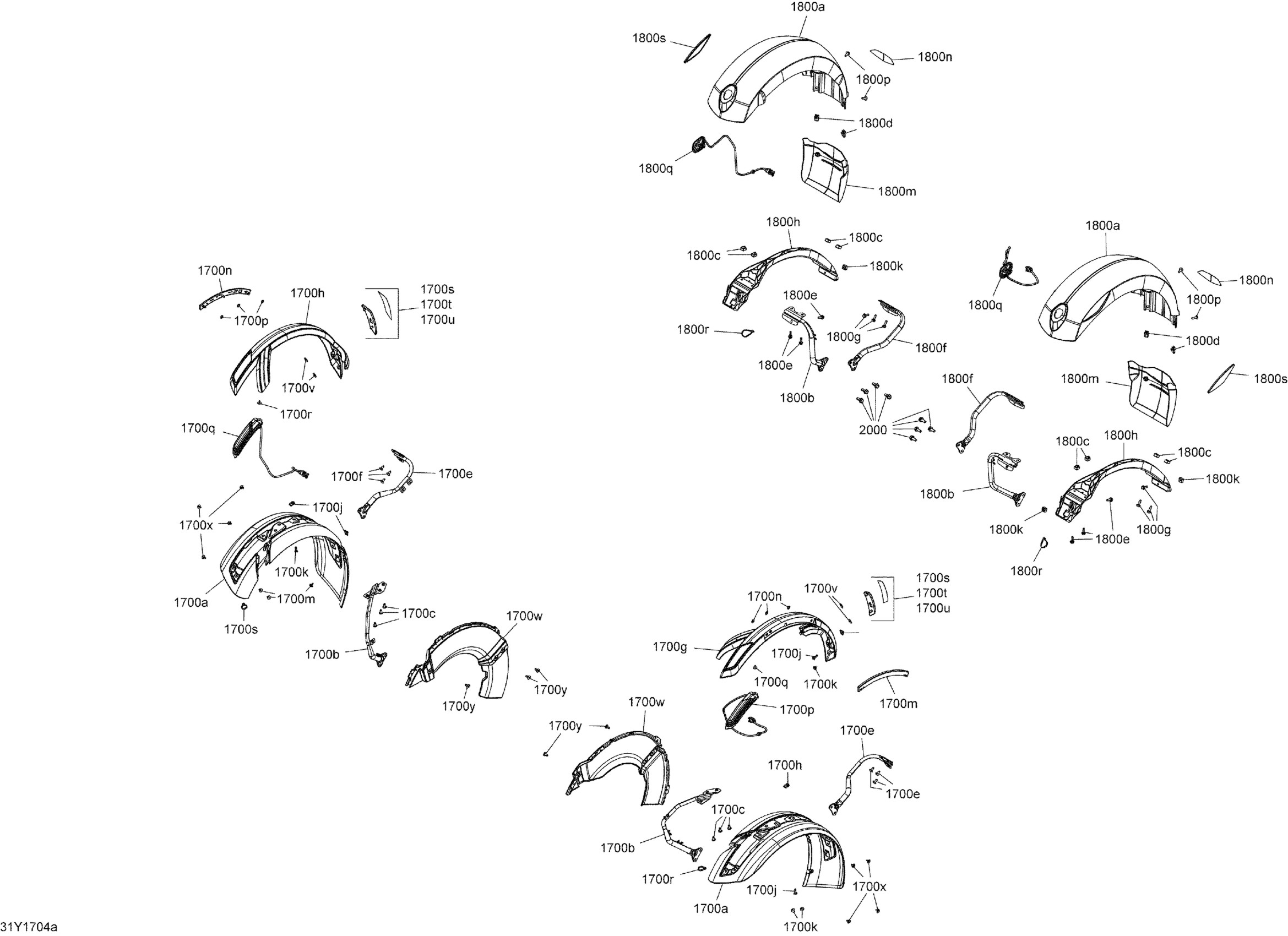

Can-Am F3, 2017 09- Body And Accessories - Front Fender - All Models Diagram

Bare, LH Front Fender | Model-Circuit Yellow Met

White LH Front Fender | Model-Vegas White Pearl

Metallic Black Front Fender LH | Model-RS S

Metallic Magnesium Front Fender RH

Vegas White RH Front Fender | Model-Vegas White Pearl

Metallic Black Front Fender RH | Model-RS S

Red Front Fender RH | Model-Intense Red Pearl

LH Front Support | Except STD

RH Front Support | Except STD

Hex. Flange Screw M6 X 16

Flat washer M6

LH Support | Model-RS S

Hex. Flange Screw M6 X 16

RH.SUPPORT - Call your local BRP dealership | Except STD

Flat washer M6

Hex. Flange Screw M6 X 16

Metal. Magnesium Frt Fender Moulding LH

White Front Fender Moulding LH | Model-Vegas White Pearl

Carbone Black Front Fender Moulding LH | Model-RS S

Bare, LH Fender | Model-Intense Red Pearl

Flat washer M6

Panel Nut M5 X 0.8

Metal. Magnesium Frt Fender Moulding RH

Bare, RH Fender | Model-Vegas White Pearl

Carbone Black Front Fender Moulding RH | Model-RS S

Red Front Fender Moulding RH | Model-Intense Red Pearl

Red Front Fender Moulding RH | Red. Manufactured Date Aug 1rst 2016 And Up

Steel Black RH Front Fender Moulding | Model-Steel Black Met

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Plastite Screw M4 X 10

Torx Screw M5 X 20

Yellow LH Reflector | Model-RS S

Plastite Screw M4 X 10

Pressure Nut

Yellow RH Reflector | Model-RT LTD

LH Position Light

Pressure Nut

Plastite Screw M4 X 10

RH Position Light

Tie Wrap 142 mm

Plastite Screw M4 X 10

LH Rear Reflector | Model-RS S North America

Tie Wrap 142 mm

LH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

RH Rear Reflector | Model-RS S North America

RH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

LH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

RH Rear Reflector Ass'y | Model-S Europe, Australie, Brezil, Japon

Pressure Nut

LH Inner Fender | Model-RS S

RH Inner Fender | Model-RS S

Plastite Screw M4 X 10

Torx Screw M6 X 14

Flat washer M6

Bare, LH Front Fender | Model-RS STD Steel Black Met.

RH Front Fender, Steel Black | Model-RS STD Steel Black Met.

LH Painted Fender Front Support | Model-RS STD

RH Painted Fender Front Support | Model-RS STD

M6 Nut Housing Ass'y | Includes 7r to 7r2

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 20

LH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership

RH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership

Hex. Flange Screw M6 X 20

Central Front Fender Support | Model-RS STD

M6 Nut Housing Ass'y | Includes 7r to 7r2

LH Mudguard | Model-RS STD

RH Mudguard | Model-RS STD

Reflective Stripe

Torx Screw M6 X 20, Scotch Grip

Position Light | STD Model

Tie Wrap 142 mm

Amber, Lateral Reflector

Hex Screw Washer Head M8 X 20
