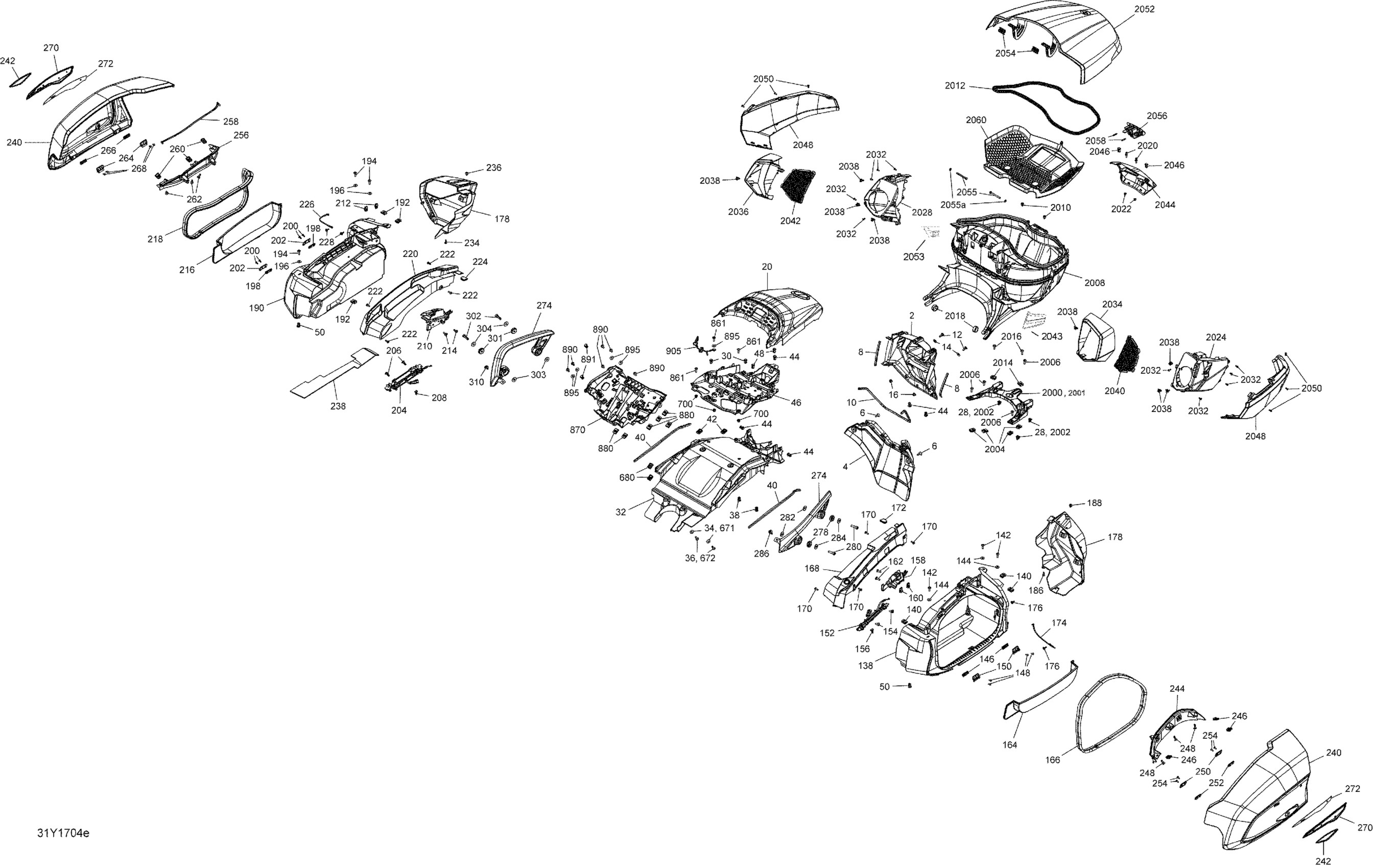

Can-Am F3, 2017 09- Body And Accessories - Cargo - Package T-LTD Diagram

Rear Fender

708301584

$204.99

Rear Fender Extention

708301747

$204.99

Tuflock Phillips Plastic Screw

414745900

$1.69

Neoprene Seal, 150 MM

293250385

$3.39

Seal 1000Mm Long

219704373

$8.26

Torx Truss Screw M6 X 20

250000303

$7.27

Flat Washer M6, Stainless

234062600

$0.77

Hex. Flange Elastic Nut M6

233261494

$1.58

Steel black Tail Fairing | Package LTD Monolith Black

708001786

$249.99

Edge Clip

517302785

$0.88

Tuflok Plastic Rivet

293150230

$1.47

Under Tail

708301609

$46.49

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Tuflok Plastic Rivet

293150230

$1.47

Neoprene Seal, 150 MM

293250385

$3.39

Panel Nut M6 X 1.0

250100208

$1.46

Tuflok Plastic Rivet

293150230

$1.47

Support

708302143

$23.99

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

LH Cargo

708302404

$94.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Flat washer M6

250200164

$1.01

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

Male Hinge

708302045

$11.49

LH Latch Assembly

708301794

$154.99

Torx Screw M6 X 20

250000722

$1.68

Connector Holder

710002033

$3.39

LH Control

708301222

$43.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cargo Separator LH | Package T and LTD

708301719

$14.99

Molded Weather Strip

293250420

$30.99

LH Cargo Fairing

708302401

$78.99

Torx Screw K50 X 16

250000720

$1.69

Antena Cap

708301805

$3.89

Retainer Cable

708300385

$38.99

Screw M4 X 16

250000725

$3.49

LH Light Support

708302283

$49.99

RH Light Support

708302285

$49.99

Brace

708302284

$12.99

LH BRACE - Call your local BRP dealership | Manufactured Date Before Aug 1rst 2016

708302227

Unavailable

RH BRACE - Call your local BRP dealership | Manufactured Date Before Aug 1rst 2016

708302226

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Rubber Bumper

293830005

$8.09

RH Cargo

708302405

$94.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Flat washer M6

250200164

$1.01

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

Male Hinge

708302045

$11.49

RH Latch Assembly

708301795

$154.99

Torx Screw M6 X 20

250000722

$1.68

Connector Holder

710002033

$3.39

RH Control

708301697

$43.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Cargo Separator RH | Package T and LTD

708301862

$14.99

Molded Weather Strip

293250420

$30.99

RH Cargo Fairing

708302402

$78.99

Torx Screw K50 X 16

250000720

$1.69

Antena Cap

708301805

$3.89

Retainer Cable

708300385

$38.99

Screw M4 X 16

250000725

$3.49

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Rubber Bumper

293830005

$8.09

Heat Shield

705009908

$47.99

Vegas White, LH Trunk Cover

708301917

$459.99

Pure Magnesium Metallic Cover LH | Package T and LTD Pure Magnesium

708301920

$459.99

Intense Red Pearl, LH Cover | Package T and LTD Intense Red

708302635

$459.99

Monolith Black, LH Trunk Cover

708301993

$459.99

Vegas White, RH Trunk Cover

708301922

$459.99

Pure Magnesium Metallic Cover RH | Package T and LTD Pure Magnesium

708301924

$459.99

Red Intense RH Cover | Package T and LTD Intense Red

708302573

$459.99

Monolith Black, RH Trunk Cover

708301994

$459.99

Amber, Lateral Reflector

705002423

$15.49

Red, Lateral Reflector

705003412

$15.49

LH Inner Cover | Included 100s to 100s3

708301663

$83.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Female Hinge

708302044

$11.49

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

RH Inner Cover | Included 100ah to 100ah3

708301664

$83.99

Gasket, Neoprene 2000Mm Long

219704476

$15.36

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Female Hinge

708302044

$11.49

Retaining Plate

708302046

$13.49

Torx Truss Screw K40 X 12

250000577

$2.11

LH Trim Box

708301587

$129.99

TRIM_BOX LH B-282 - Call your local BRP dealership | Package T

708301701

Unavailable

LH Moulding

708301839

$129.99

RH Trim Box

708301588

$129.99

Moulding RH | Package T

708301702

$129.99

RH Moulding

708301840

$129.99

Trim Box Double Face Tape

704905469

$3.69

LH Rear Holding Handle

708003456

$105.99

LH Rear Heated Holding Handle

708304250

$174.99

RH Rear Holding Handle

708003457

$105.99

RH Heated Passenger Handle | Package LTD

708301657

$142.99

Bushing

708302461

$19.49

Hex Torx Truss M8 X30

250000745

$3.17

Flat Washer 8 mm

234082410

$1.47

Stainless Steel Flat Washer 8 mm

234081670

$0.67

Tuflock Phillips Plastic Screw

414745900

$1.69

Bushing

708302461

$19.49

Hex Torx Truss M8 X30

250000745

$3.17

Flat Washer 8 mm

234082410

$1.47

Stainless Steel Flat Washer 8 mm

234081670

$0.67

Tuflock Phillips Plastic Screw

414745900

$1.69

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

Panel Nut M6 X 1.0

250100208

$1.46

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw M6 X 20

250000722

$1.68

Cargo Rear Support

708301698

$89.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Head Screw M6 X 16

250000717

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Flat washer M6

250200164

$1.01

Lanyard | Included 905 to 905d

708002532

$22.99

Cord Decal

704905127

Unavailable

Central Pillar | Package LTD

708301989

$10.49

LH Central Pillar Stiffener | Package LTD

708302556

$25.99

RH Central Pillar Stiffener | Package LTD

708302557

$25.99

Edge Clip

517302785

$0.88

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Storage Box | Package LTD

708302228

$489.99

Rubber Bumper

293830005

$8.09

Trim

293250579

$15.99

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 20

250000722

$1.68

Rubber ring | Package LTD

708302235

$22.99

Stud

518333307

$13.49

Flange Elastic Nut M5

233251434

$2.00

LH Speaker Enclosure

708302113

$19.99

Gasket 1000Mm Long

219704374

$2.01

RH Speaker Enclosure

708302114

$19.99

Gasket 1000Mm Long

219704374

$2.01

Torx Truss Screw K40 X 12

250000577

$2.11

Carbon Black LH Air Scoop | Package LTD

708302161

$206.49

Carbon Black RH Air Scoop | Package LTD

708302162

$206.49

Edge Clip

517302785

$0.88

LH Speaker Grille

708302106

$4.44

RH Speaker Grille

708302107

$4.44

Not Available As Spare Part - Friction Washer

Unavailable

Light Support

708302152

$12.49

Tuflok Plastic Rivet

293150230

$1.47

PANEL TRUNK RL B-321 - Call your local BRP dealership | Package LTD Magnesium

708302159

Unavailable

Vegas White Pearl, LH Trunk Panel | Package LTD White

708302229

$219.99

Intense Red Pearl, LH Rear Fairing | Package LTD Red

708303814

$249.99

Magnesium RH Panel | Package LTD Magnesium

708302160

$219.99

Vegas White Pearl, RH Trunk Panel | Package LTD White

708302232

$219.99

Intense Red Pearl, RH Panel | Package LTD Red

708302634

$214.99

Torx Truss Screw K40 X 12

250000577

$2.11

Kit Cover Trunk R B-266 | Package LTD Red

219800479

$299.99

Vegas White Pearl, Trunk Cover | Package LTD White

708302201

$309.99

Magnesium Central Cover | Package LTD Magnesium

708302202

$309.99

Stopper | Package LTD

708302446

$6.29

Spring | Package LTD

708302103

Unavailable

Hex. Screw M6 X 65

207066544

$0.46

Pressure Nut

250100163

$0.98

Trunk Control Ass'y

708302100

$24.49

Spring

708302198

$2.09

Inner Liner | Package LTD

708302203

$30.99
