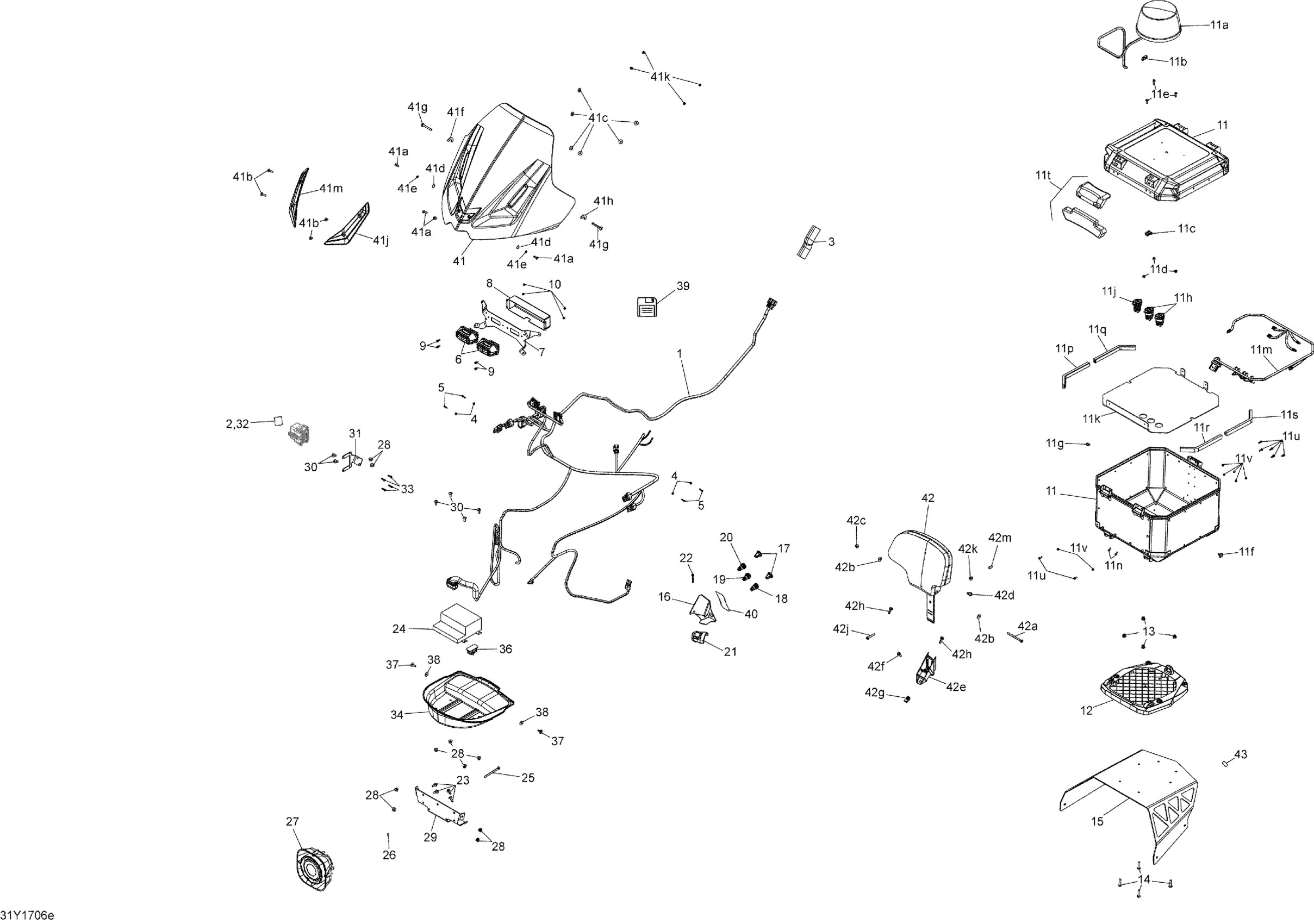

Can-Am F3, 2017 09- Accessories - Police Package - Europe Diagram

#

Description
Price

1>39

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

1

SECONDARY WIRING - Call your local BRP dealership

710005570

Unavailable

2

DECAL FUSE RELAY EUR - Call your local BRP dealership

710005571

Unavailable

3

Wire Cover

293740058

Unavailable

4

Elastic Stop Nut M3

232531423

$0.55

5

SOCKET SCREW M3 X 14 - Call your local BRP dealership

710004811

Unavailable

6

Blue Flasher Ass'y

710005573

Unavailable

7

FLASHER SUPPORT - Call your local BRP dealership

705010363

Unavailable

8

WIRING COVER - Call your local BRP dealership

705010364

Unavailable

9

Phillips Screw M4 X 12

208641260

$1.03

10

Elastic Stop Nut

232541434

$0.60

11>11v

STORAGE BOX ASSY EUR - Call your local BRP dealership | Incl 11 to 11v

710005575

Unavailable

11a

Flasher Ass'y

710005576

Unavailable

11b

Male Housing, 4 Circuits

515177442

$13.18

11c

Clamp

293650256

$5.49

11d

Flange Elastic Nut M5

233251434

$2.00

11e

Hex. Forming Screw M5 X 16

210251650

$1.15

11f

Mount Dart

293730040

$1.04

11g

Tie Wrap 94 mm | 4X4

293750001

$1.03

11h

DC Outlet

710001248

$37.99

11j

USB Outlet

219400510

$42.99

11k

MOUNTING PLATE - Call your local BRP dealership

710004813

Unavailable

11m

REAR BOX WIRING - Call your local BRP dealership

710005312

Unavailable

11n

Torx Truss Screw K40 X 12

250000577

$2.11

11p

Was 293200017 Neoprene Seal

219704365

$149.99

11q

Was 293200017 Neoprene Seal

219704365

$149.99

11r

Was 293200017 Neoprene Seal

219704365

$149.99

11s

Was 293200017 Neoprene Seal

219704365

$149.99

11t

PAD KIT - Call your local BRP dealership

708200683

Unavailable

11u

Phillips Screw M4 X 12

208641260

$1.03

11v

Elastic Stop Nut

232541434

$0.60

12

STORAGE BOX SUPPORT - Call your local BRP dealership

705010369

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Torx Truss Screw M6 X 30

250000843

$2.11

15

FORMED SUPPORT - Call your local BRP dealership

705010370

Unavailable

16

SWITCHES SUPPORT - Call your local BRP dealership

710005688

Unavailable

17

Cap

708400046

$3.89

18

SWITCH LIGHTS - Call your local BRP dealership

710005681

Unavailable

19

Sirene Switch CTRL1

710005684

Unavailable

20

Sirene Switch CTRL2

710005685

Unavailable

21

GPS Clamp

709401578

Unavailable

22

Bolt ¼-20 X 5/16

710005752

$4.65

23

Torx Screw M6 X 20

250000722

$1.68

24

SIREN AMPLIFIER EUR - Call your local BRP dealership

710005572

Unavailable

25

THREAD SCREW FILET 1/4-20 X 1 1/4 - Call your local BRP dealership

291004284

$2.19

26

Lock Washer 1/4”

211200025

$1.29

27

Siren

710004839

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

AMPLIFIER SUPPORT - Call your local BRP dealership

710004838

Unavailable

30

Tork Screw M6 X 16

250000534

$2.11

31

FUSE BOX SUPPORT - Call your local BRP dealership

710004844

Unavailable

32

Fuse, 25 AMP

710001046

$3.91

33

Flange Torx Screw K40 X 16

250000287

$2.11

34

Double Bottom

705011901

Unavailable

36

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

37

Pop Rivet 3/16

293150186

$2.09

38

Washer

517124300

$0.19

39

Speed Prog

710005113

$979.99

40>43

Not Available As Spare Part - Friction Washer

Unavailable

40

Decal Police Pack

704906347

Unavailable

41>41m

Windshield Kit | Incl 41 to 41m

219400746

$459.99

41a

Socket Screw M5 X .80 X 16

250000652

$1.01

41b

Torx Truss Screw M5 X 20

250000715

$2.11

41c

Rubber Washer 5 mm

250200024

$2.19

41d

RETAINING RING - Call your local BRP dealership

293370112

Unavailable

41e

Flat Washer M5

234051670

$2.11

41f

Rubber Washer

293830176

Unavailable

41g

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

41h

Rubber Washer

293830176

Unavailable

41j

LH WINDSHIELD MOULDING - Call your local BRP dealership

705004961

Unavailable

41k

Cap Nut M5

250100152

$2.00

41m

RH Windshield Moulding

705004962

$37.99

42>42m

Backrest Kit | Included 500b to 500b10

219400498

$468.49

42a

Hex. Screw M6 x 80

207068060

$2.43

42b

Flat Washer M6, Stainless

234062600

$0.77

42c

Hex. Flange Elastic Nut M6

233261494

$1.58

42d

Head Screw M8 x 20

250000885

$4.76

42e

Backrest Slider

708001678

$23.99

42f

Hexagonal Head Screw

210262050

$2.11

42g

Panel Nut M6 X 1.0

250100198

$2.11

42h

Hex. Flange Screw M6 X 20

207662044

$2.00

42j

Socket Screw M6 X 40

205464060

$2.22

42k

Hex. Flange Elastic Nut M6

233261494

$1.58

42m

Cap

515176141

$3.09

43

Decal Maximum Load

704906369

Unavailable
